Description

Basics

Product information

• IP desk phone terminal|gunmetal black|PN 00004641
• Operating system: Linux

Placement

• indoor, wall mounting¹

Dimensions and weight

Dimensions (L × W × H, approx.)

• 110 mm × 110 mm × 30.2 mm

Weight (approx.)

• 145 g

Display and indicators

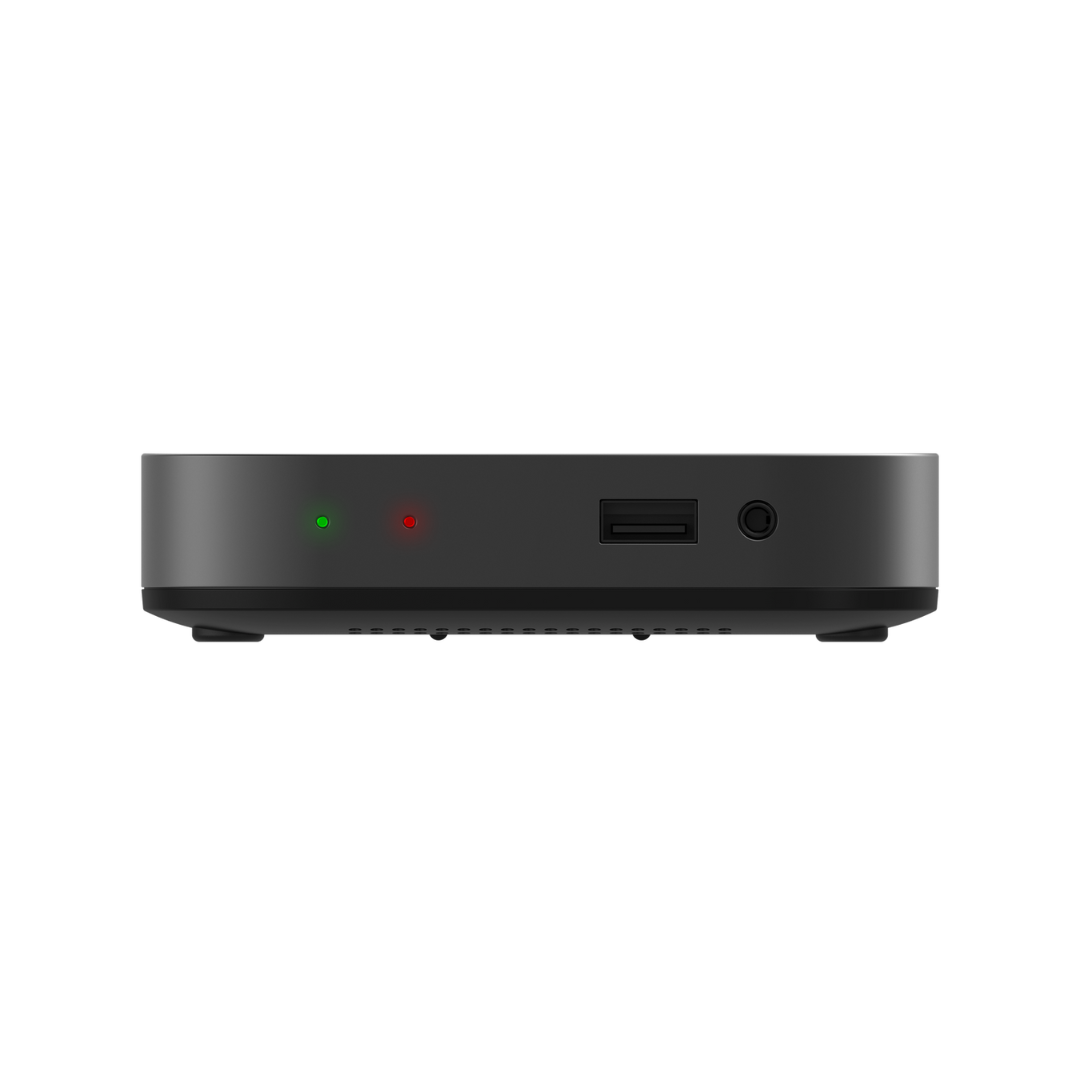

2 LED indicators

• Call status indication: 1 green LED
• Power status indication: 1 red LED

1 dedicated function key: Reset

Audio devices, codecs and features

Audio codecs

• G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729, Opus

Dual-tone multi-frequency signalling (DTMF / RFC2833):

• SIP-INFO, in-band, out-of-band

Related features

• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)
• Audio response time
• Adaptive jitter buffer
• Packet loss concealment (PLC)

Interfaces and connections

Power options

• Power over Ethernet (PoE)
  • IEEE 802.3af, class 3|IEEE 802.3az⁴
• Power adapter¹
  • 100 – 240 V AC, 50 – 60 Hz | 5 V DC (SELV), 2 A, 10 W¹

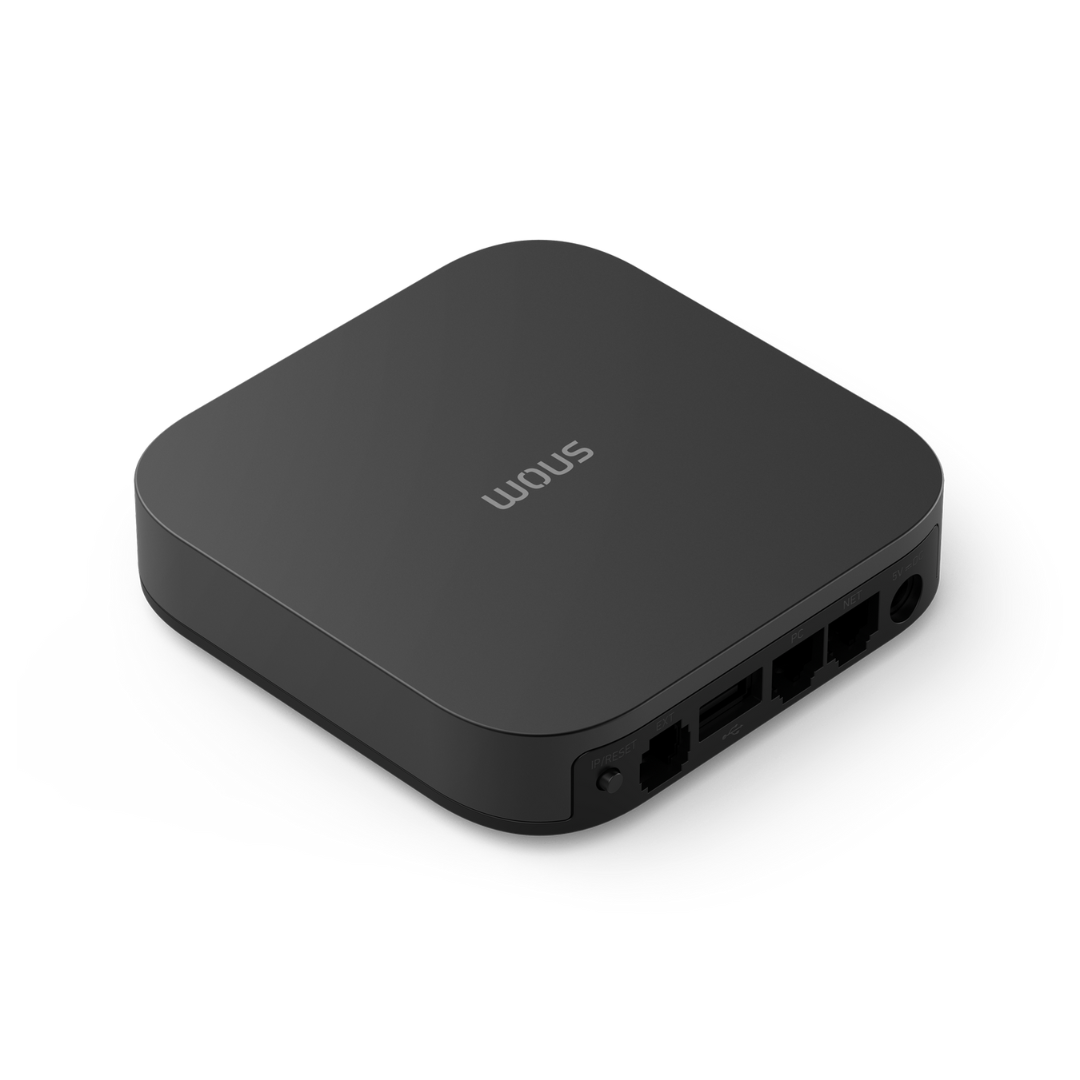

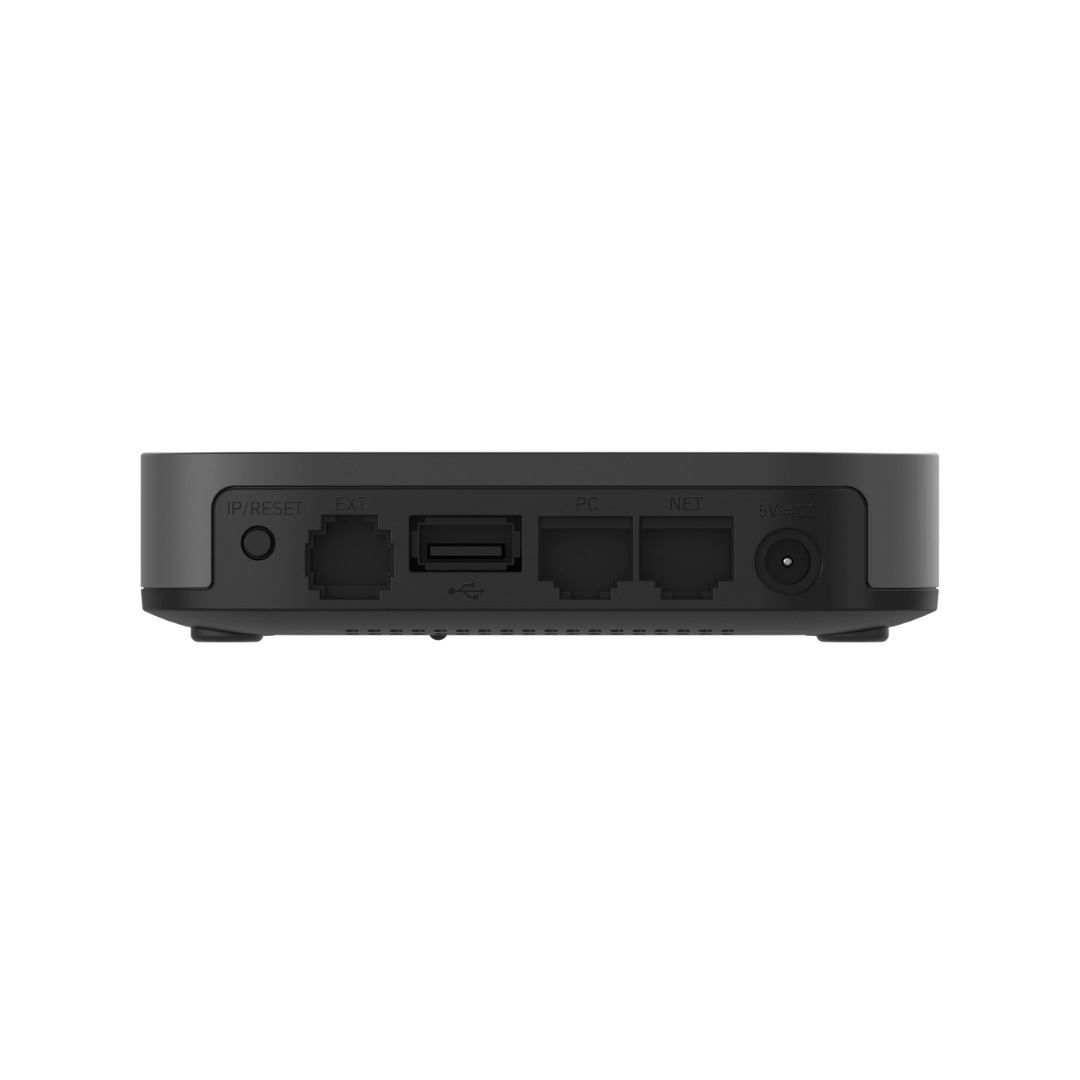

Wired interfaces

• Power adapter: coaxial power connector (socket)
• Network connectivity: 2 × RJ45-8P8C (PC/NET) sockets → Gigabit Ethernet (GbE)
• USB headsets and other accessories:³ 2 × USB 2.0 type A ports
• Headset: 3.5 mm miniature audio jack
• Maintenance (Snom): RJ12-6P6C (EHS) socket

User interfaces and setup

Configuration and setup via menu-driven web user interface (WUI)

• Visual and functional UX based re-design (phone manager)
• Password-protected login
• Secure web server/client (HTTPS)

Computer telephony integration (CTI)

• uaCSTA over SIP, CSTA over HTTP(S)

Automatic configuration via provisioning

• Loading of settings and firmware via HTTP, HTTPS, TFTP
• Supported DHCP provisioning options 43 / 60 / 66 / 67
• Secure Redirection And Provisioning Service (SRAPS) support
• Remote management via TR-069 / TR-069 Annex G (TR-111) / TR-369
• Plug & Play (PnP) support

Localization

• Languages
• Time zone, dial tone

Diagnostic

• SIP / PCAP trace
• Syslog

Networking technologies and protocols

Network technologies

• OpenVPN, VLAN (IEEE 802.1q)

VoIP related protocols and techniques

• SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER method (RFC 3515), rport (RFC 3581), ENUM, ICE, STUN

Secure VoIP protocols

• SIPS (SIP over TLS), SRTP, SRTCP

Network protocols

• IPv4 / IPv6 (dual stack), DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP

Secure network protocols

• TLS V1.3 incl. ciphers (forward secret & authenticated), HTTPS, IEEE 802.1X (EAP-TLS – RFC 5216)

Remote management protocols

• TR-069, TR-069 Annex G (formerly TR-111), TR-369 (USP), uaCSTA over SIP, CSTA over HTTP(S)

Directory support and call features

8 identities / accounts

Directory support

• LDAP (server-based directory)
• Local directory with up to 10,000 entries
• Import/export phone book (CSV, XML)

Outgoing call features

• URL dialling
• Local dial plan
• Automatic redial on busy
• Caller identification (CLIP)
• Calling Line Identification Restriction (CLIR)
• Call completion (busy/unreachable)²

Interoperability

Certified VoIP partner

Environmental conditions

Operating ambient temperature: 0 °C – +35 °C

Nonoperating (storage) temperature: -10 °C – +45 °C

Humidity (non-condensing): 5 % – 95 %

Package contents

Hardware

• IP desk phone terminal SP800
• Ethernet cable: 1.5 m

Documentation

• Quick Installation Guide

Snom accessories and compatible devices

Power adapter

• Snom 10 W PSU (PN 00004570)

Wall mount kit

• SP800 (PN 00004657)

Wired headset via USB

• Binaural: A330D (PN 00004598)
• Monaural: A330M (PN 00004597)

Wireless conference speakerphone (USB)

• C300 (PN 00004584)
