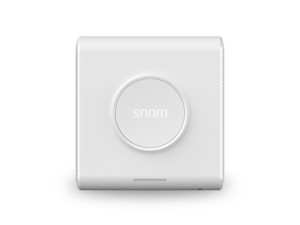

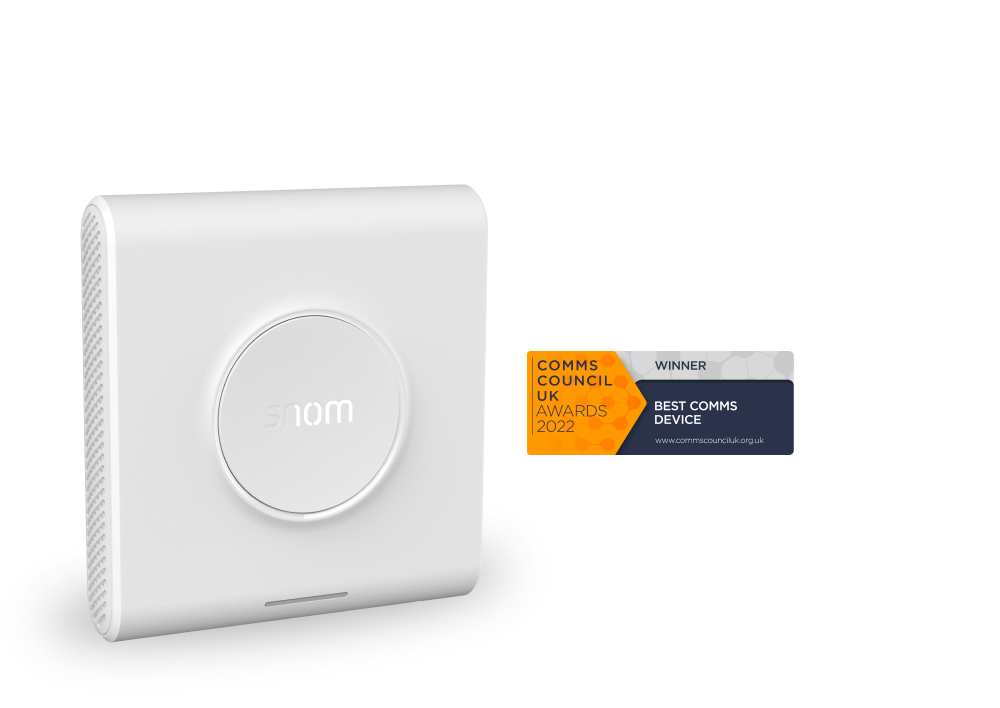

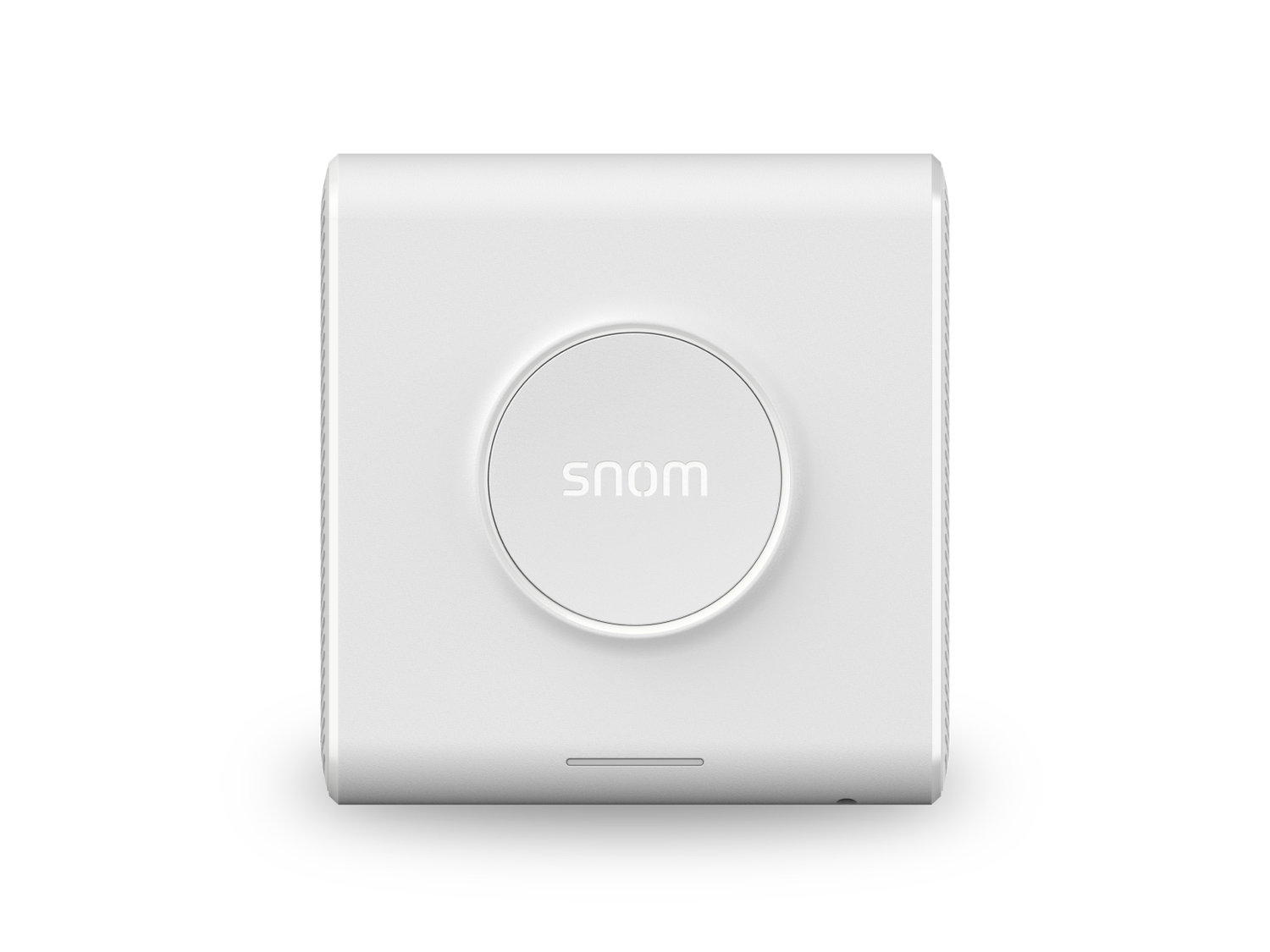

Snom M900

The Snom M900 is basically the right base for almost any installation size due to enormous scalability. Whether it is a small office with only one base or a hospital with several thousand handsets and hundreds of bases. Thanks to the DECT manager function integrated in every Snom M900 and the latest multi-cell technology, individual installations can include up to 1,000 bases and up to 4,000 handsets.

Quick summary

  • Multicell with up to 1,000 bases in a cluster
  • Up to 4,000 handsets in a cluster
  • Wireless software updates for handsets
  • TLS encryption



Category:

Description

DECT:

  • Frequency bands:
    • 1880 – 1900 MHz (EU)
    • 1920 – 1930 MHz (US)
  • Output power: EU < 250 mW, USA < 140 mW
  • Protocols: DECT, DECT 6.0
  • Seamless handover and roaming
  • Handover using DECT or LAN synchronisation (IEEE1588)
  • Wideband audio
  • Authentification/encryption of base and handset

Range:

  • Indoors: Up to 50 meters
  • Outdoors: Up to 300 meters (for indoor use only)

Multicell System:

  • Up to 4.000 registered handsets in the same network in multicell setup
  • Up to 1.000 registered base stations in a multicell setup
  • Up to 100 repeaters in a multicell setup(2)
  • Up to 8 narrowband or 4 wideband calls per base station in multicell setup
  • Up to 10 narrowband or 5 wideband calls per base station in single-cell setup
  • Common phonebook with up to 3000 entries
  • List of registered handsets
  • Compatible to M700 running the same software version

Audio, Codes:

  • G.722 (5 channels, 4 in multicell operation)
  • G.711 A-law, μ-law
  • G.726 (10 channels, 8 in multicell operation)
  • Code negotiation, codec switching
  • A900 enables:
    • G.729 (10 channels, 8 multicell operations)
    • BV32 (10 channels, 8 multicell operations)
    • Opus (8 channels)

User interfaces:

  • LED status indication, multicolor
  • Reset key
  • Web interface

Installation:

  • Positioning:
    • Wall mounting
    • Ceiling mounting
  • Remote software updates via HTTP / HTTPS / TFTP
  • Automatic loading of settings via HTTP / HTTPS / TFTP
  • Completely configurable through Web interface
  • Static IP, DHCP support
  • NTP (Network Time Protocol)
  • Secure provisioning and authentication with Mutual TLS through individual vertificated issued by Snom CA
  • Compatible handset feature RSSI tool, no additional measurement equipment needed

Hardware Specifications:

  • Weight: approx. 306g
  • Dimensions: approx. 144x140x35 mm (LxWxD)
  • Antenna diversity (two internal omni-directional antennas for better transmission and reception)
  • Power: Power over Ethernet (PoE) IEEE802.3af
  • Class 2. If PoE is not available, the A5 PoE injector can be used (not included)(3), Power adapter available (4)
  • Ethernet connector: RJ 45
  • LAN interface: 10/100 BASE-T IEEE 802.3
  • Colour: White
  • Part numer: 00004426 (EU), 00004441 (US)

Network:

  • HTTP and HTTPS
  • LLDP
  • IEEE 802.1Q
  • TLS 1.2

Additional information

Color

White
Brand

Snom
Connection type

Wireless
Series

Snom M-Series
