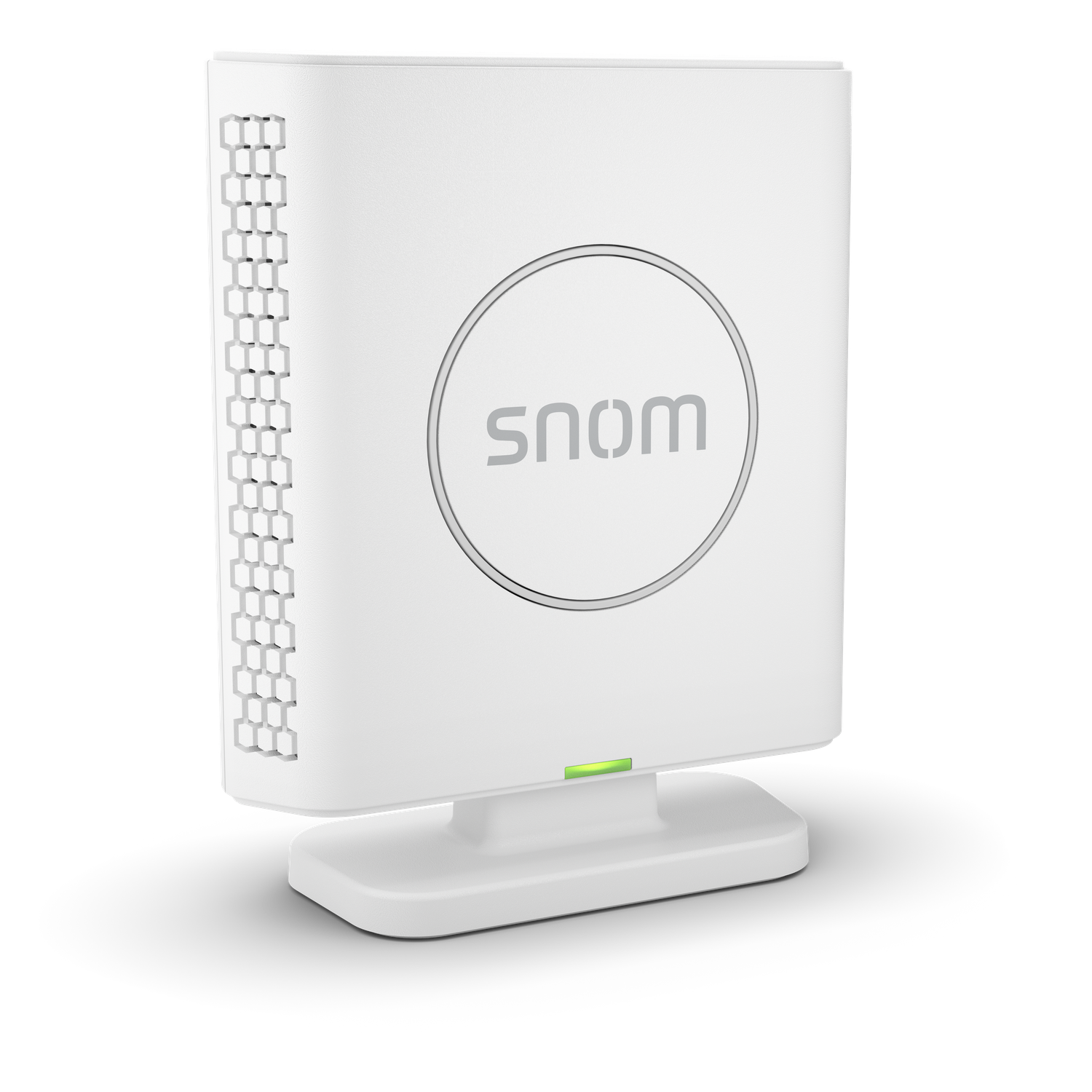

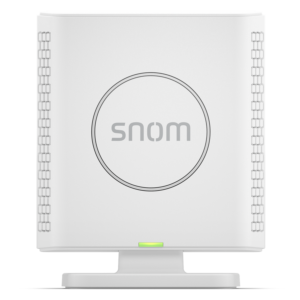

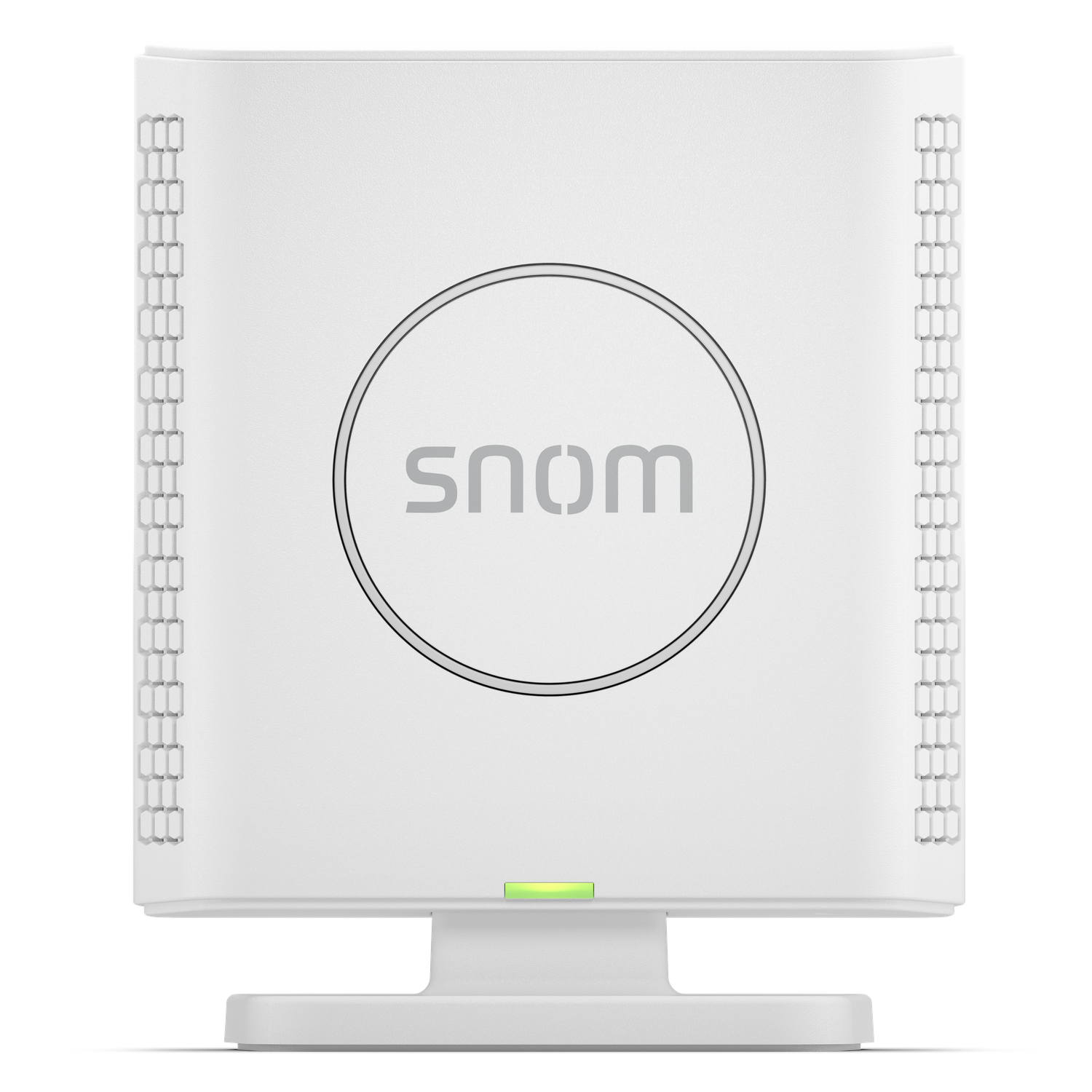

Snom M400

Unmatched Mobility and Superior Performance for Business Communication

Experience a new level of mobility and flexibility in your business communication with the Snom M400 DECT single cell base station. Designed with professionalism and efficiency in mind, this single cell DECT base empowers you to stay connected, productive, and responsive throughout your workplace.

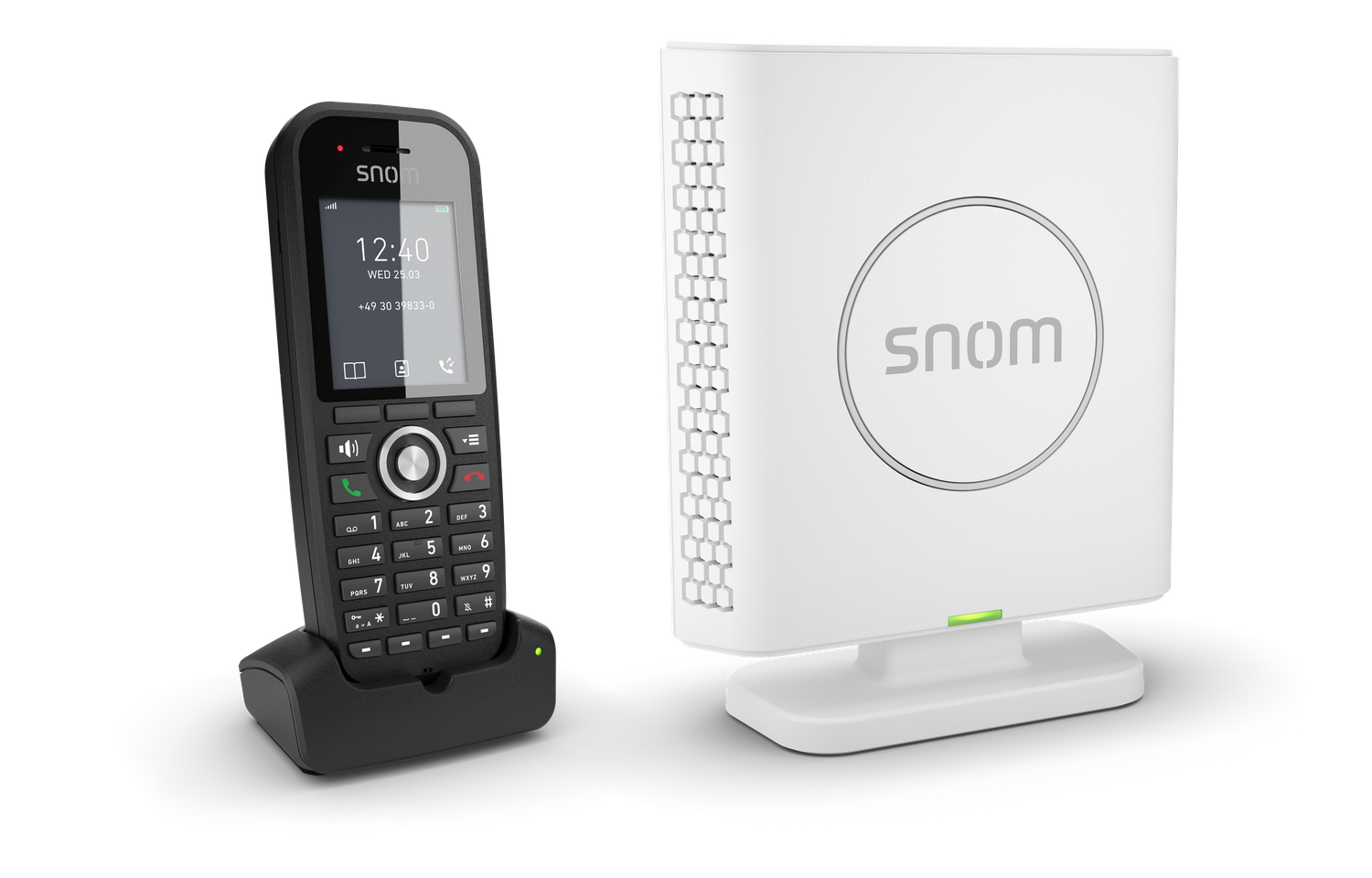

Setting up the M400 is a breeze, with its simple installation process and intuitive user interface. M400 integrates seamlessly with Snom mobility series cordless phones, this base station ensures a hassle-free deployment, enabling you to get up and running quickly.

Quick summary

  • 1 multicolor LED
  • 1 dedicated function key Reset
  • Configuration and setup via a menu-driven web user interface (WUI)
  • Coverage up to 50 m indoor range / 300 m outdoor range
  • Software upgrade over the air
  • Wall mountable



Category:

Description

Basics

Product information

  • DECT single-cell base station
  • Colour: white

Placement: indoor, desktop, wall mounting

Antenna diversity: 2 internal omni-directional antennas

Dimensions and weight

Dimensions (H × W × D, approx.)

  • 112 mm × 90 mm × 36 mm

Weight (approx.)

  • 170 g

Display and indicators

Multi-purpose status indication: 1 multicolour LED

1 dedicated function key: Reset

Audio devices, codecs and features

Audio codecs: G.711 (A-law, μ-law), G.722, G.726, G.729

Codec negotiation

Codec switching

Interfaces and connections

Power options

  • Power over Ethernet (PoE)
    • IEEE 802.3af, class 2
  • Power adapter1
    • 100 – 240 V AC, 50 – 60 Hz | 5 V DC (SELV), 2 A, 10 W

Wired interfaces

  • Power adapter: coaxial power connector (socket)
  • Ethernet 10/100 Mbit/s: RJ45-8P8C socket

Wireless interfaces

  • DECT2

User interfaces and setup

Configuration and setup via menu-driven web user interface (WUI)

Automatic configuration via provisioning

  • Loading of settings and firmware via HTTP, HTTPS, TFTP
  • Secure provisioning with preinstalled certificate
  • Cloud Zero-Touch Provisioning

Localization

Diagnostic

  • DECT messages, alarms, location
  • List of registered mobile handsets, repeaters, location gateways

Related features

  • XML Minibrowser support for Snom DECT multicell systems
  • Compatible handset feature RSSI tool, no additional measurement equipment needed

Networking technologies and protocols

Network technologies

Secure VoIP protocols

Network protocols

Secure network protocols

Quality of Service (QoS)

  • ToS

Directory support and call features

Local directory with up to 3,000 entries

LDAP (server-based directory)

XML phonebook support

DECT technology and features

Standard: DECT2

  • Authentication/encryption of base and handset
  • Seamless handover
  • Wideband audio

Frequency band

  • Europe: 1,880 – 1,900 MHz
  • USA: 1,920 – 1,930 MHz
  • Latin America: 1,910 – 1,930 MHz

Output power

  • Europe: < 250 mW
  • USA: < 100 mW
  • Level (dbm): 14, 17, 20, 24

Coverage

  • Up to 50 m indoor range
  • Up to 300 m outdoor range

Single-cell installation

  • Handsets: up to 20
  • Repeaters: up to 6
  • Narrowband calls: up to 10
  • Wideband calls: up to 4 (G.729)

Dual-cell installation

  • Wideband calls: up to 8 (G.729)

Software upgrade over the air (SUOTA)

Interoperability

Certified VoIP partner

Environmental conditions

Operating ambient temperature

  • -10 °C – +50 °C

Package contents

Hardware

  • DECT base station M400

Documentation

Snom accessories and compatible devices

Power adapter: Snom 10W PSU

  • EU & UK: PN 00004570
  • Americas: PN 00004571

DECT repeater M6

  • EU / Americas: PN 00004586
  • UK: PN 00004639

Handsets

• • M90 (PN 00004425)

Additional information

Color

White
Brand

Snom
Connection type

Wireless
Series

Snom M-Series
