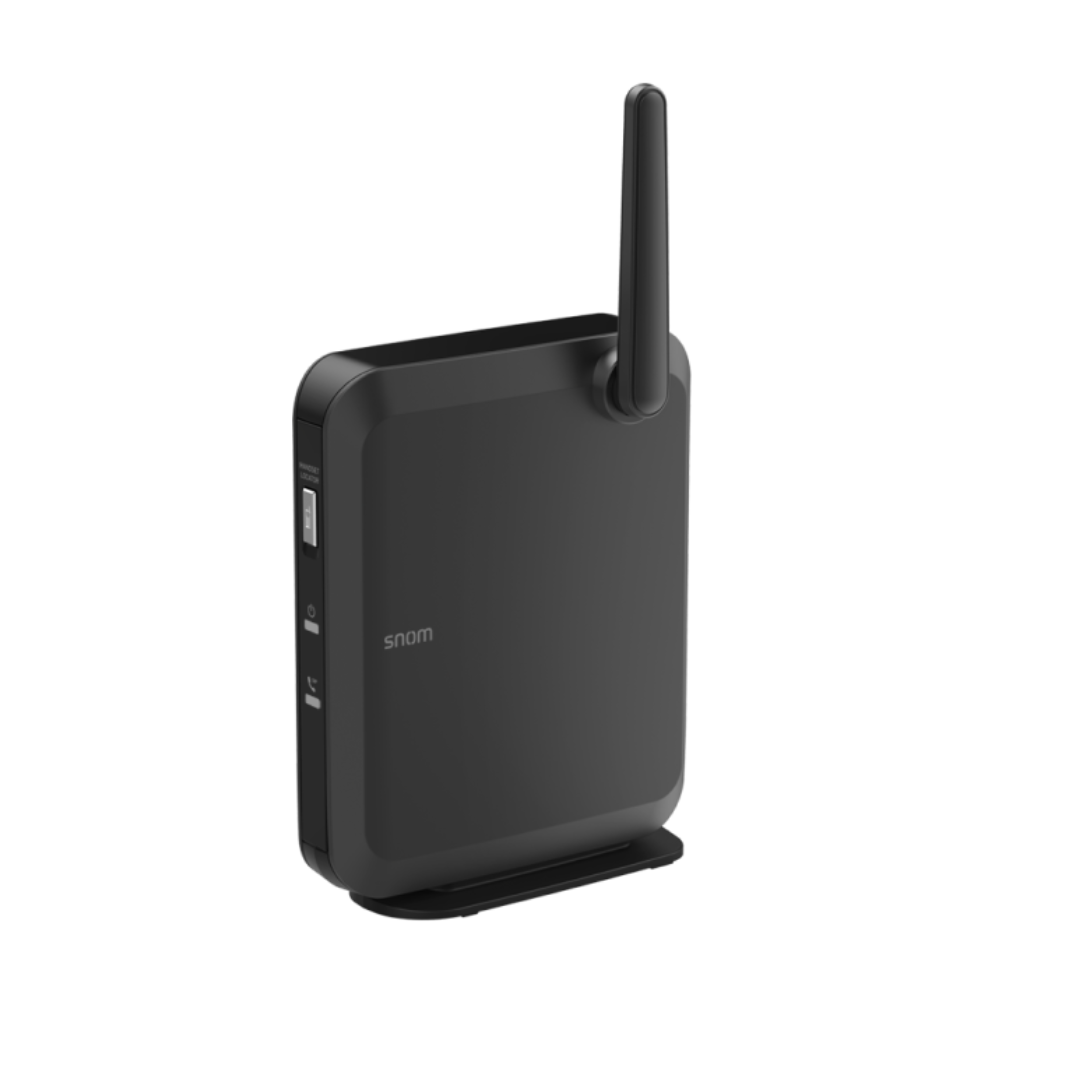

Snom M100 SC

The M100 KLE SIP DECT 4-Line Base Station supports up to 10 phones in the Snom KLE DECT 4-Line Series, including the M10 and M10R SIP DECT 4-Line handsets and the M18 KLE SIP DECT 4-Line deskset. This cordless family of phones features four programmable LED backlit line keys on the handsets and desksets. With key system emulation, the M100 KLE Series handles shared line appearances locally without the need for SCA (shared called appearances) support from your provider. This allows an easy and intuitive method for your customers to see incoming calls, hold calls, and resume calls from any handset or deskset with a simple press of a button.

Quick summary

  • Key system emulation
  • Advanced call handling
  • Compatible with M10 KLE, M10R KLE, M18 KLE
  • HD voice quality
  • Easy wireless installation
  • Scalability
  • Three-year warranty
  • Clear mobility with DECT 6.0 digital technology
  • Flexibility

Category:

Description

Specifications, Weights and Dimensions

  • APN: 80-S089-00
  • Color: black
  • UPC: TBD
  • Product dimensions (WxDxH):4.55″ x 1.67″ x 5.94″
  • Product weight: 0.5 lbs.
  • Giftbox dimensions (WxDxH):4.92″ x 2.83″ x 6.14″
  • Giftbox weight: 0.73 lbs.
  • Master pack SCC-14: TBD
  • Master pack dimensions (WxDxH):10.47″ x 6.26″ x 6.93″
  • Master pack weight: 3.58 lbs.
  • Quantity: 4

Interface

  • DECT 6.0 RF module embedded
  • DECT 6.0 (maximum register): 10 handsets and/or desksets
  • Ethernet port – 10/100 Mbps
  • Base power: adapter (included) and Class 2 Power over Ethernet (PoE)

Base Station, Keys and Indicators

  • Handset locator key
  • Reset key
  • Power LED
  • VoIP LED

Audio/Voice

  • G.722, G.711 (A-law & μ-law), G.729ab, G.726, iLBC

System Features

  • Supports up to 8 SIP account registrations (individual or shared among handsets)
  • Supports 4 programmable line keys on cordless accessories
  • Supports up to 4 outgoing calls in parallel(system-wide)
  • Base phonebook up to 1,000 entries
  • Call history up to 200 entries
  • Phonebook import/export
  • XML/LDAP remote phonebook
  • Do Not Disturb (DND)
  • 3-way local conference
  • N-way network conference
  • External/Internal call transfer between DECT phones1
  • Intercom between DECT phones1
  • Call barring/blocking (block anonymous/blacklist)
  • Dial plan/digit map
  • Mute
  • Redial
  • 10 speed dial entries
  • Call transfer: blind/attended
  • Call hold
  • Call forwarding: per-line basis (busy/always/no answer)
  • Call timer (call duration)
  • Caller ID
  • Phonebook matching (incoming andoutgoing calls)
  • Multi-language support

Customization

  • Web interface configuration (admin & user)
  • Custom default file

Security

  • 802.1x
  • 802.1pq
  • SRTP
  • Transport Layer Security (TLS)
  • Mutual authentication (server and client)
  • Certificate management (device and applications)
  • AES encryption of config file for provisioning (128/64/32/16 bits)
  • Open VPN
  • LLDP-MED

Network

  • IPv4 or IPv6 with DHCP/Static/PPPoE
  • STUN
  • NAT
  • RTP
  • SNTP
  • VLAN
  • DNS override
  • Failover support and server redundancy
  • Layer 3 QoS (ToS, Diffserv)

Provisioning

  • Snom redirection service
  • HTTP, HTTPS, TFTP
  • DHCP options: 66, 159, 160
  • TR-069
  • PnP

Maintenance

  • Software Update Over the Air (SUOTA)
  • Schedule resync: time and day setting
  • Diagnostic: pcap trace
  • Syslog

Compatibility

  • Broadsoft® Broadworks
  • Asterisk-based platforms

Other

  • 3-year standard warranty
  • Advanced product replacement for warranty claims with new product

Additional information

Color

Black
Brand

Snom
Connection type

Corded, Wireless
Series

Snom MSC-Series
