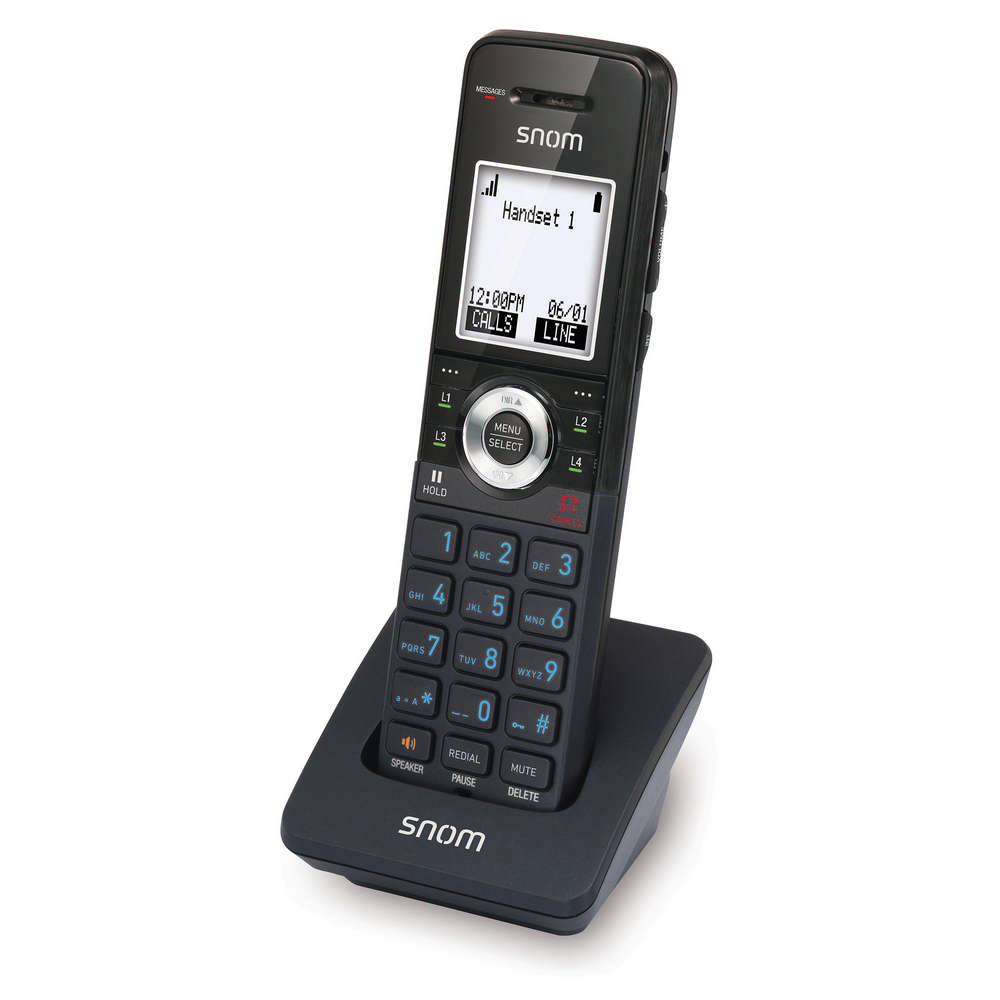

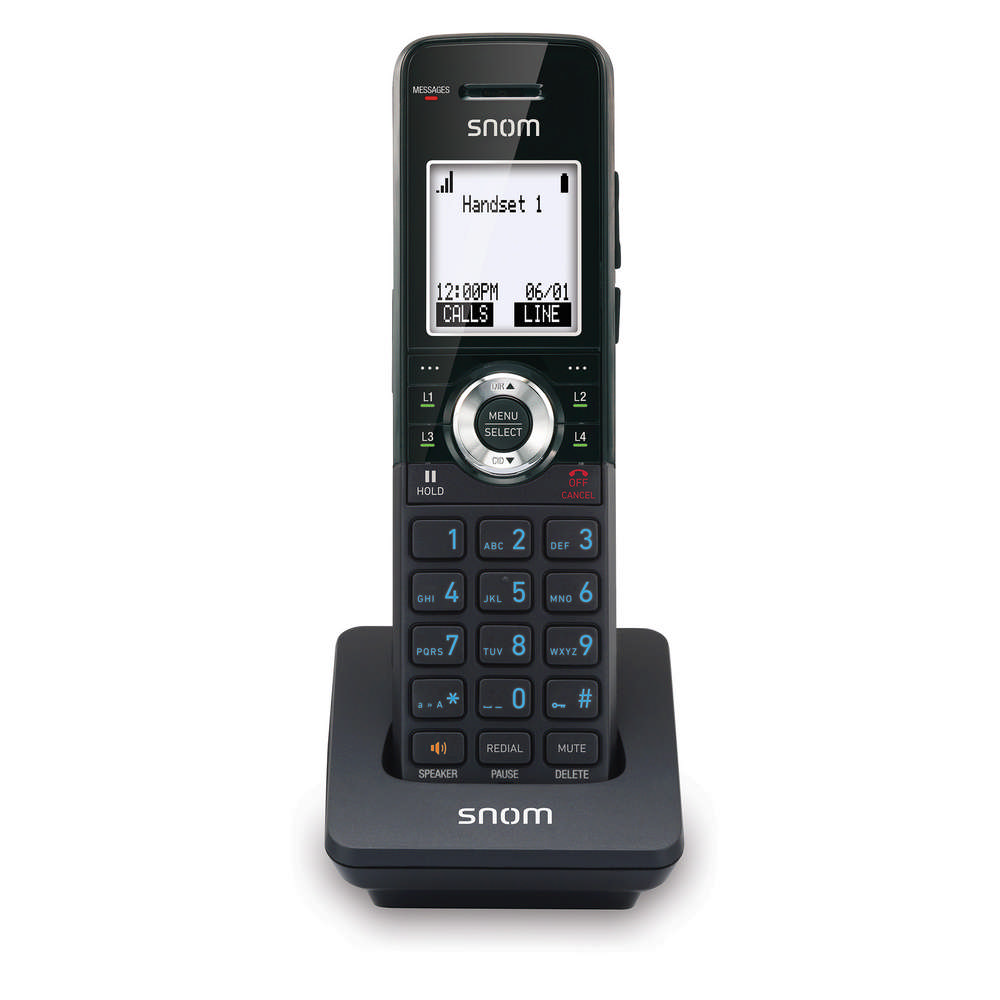

Snom M10 SC

DECT – Handset

The M10 KLE SIP DECT 4-Line Handset is ideal for small businesses that need to quickly and easily manage call routing. Add mobility to your SIP communications with up to 10 expandable M10 KLE accessory handsets. When paired with the M100 KLE SIP DECT 4-Line Base Station, each handset can have its own extension and unique phone number. With four programmable LED backlit line keys on the cordless handset, easily handle multiple calls. With key system emulation, the M100 KLE Series handles shared line appearances locally without the need for SCA (shared call appearances) support from your provider. You can even hold a call and resume it on a different handset or deskset with a single press of a button. No complicated programming required.

Quick summary

  • Generous talk time
  • Key system emulation
  • Intuitive design
  • Three-year warranty
  • Programmable line keys
  • HD voice quality
  • Clear mobility with DECT 6.0 digital technology
  • Easy wireless installation
  • Scalability



Description

Specifications, Weights and Dimensions

  • APN: 80-S090-00
  • Color: black
  • UPC:
  • Product dimensions (WxDxH): Cordless HS: 2.05″ x 1.10″ x 6.81″ Charger: 2.99″ x 3.22″ x 2.13″ Cordless HS on Charger: 2.99″ x 3.22″ x 7.32″
  • Product weight: 0.43 lbs.
  • Giftbox dimensions (WxDxH): 5.16″ x 2.40″ x 7.17″
  • Giftbox weight: 0.66 lbs.
  • Master pack SCC-14:
  • Master pack dimensions (WxDxH):10.79″ x 5.36″ x 7.88″
  • Master pack weight: 3.08 lbs.
  • Quantity: 4

Display, Keys and Indicators

  • 1.8-inch 90 x 65 pixels (w x h) mono LCD
  • LCD backlighting (blue/white)
  • Message waiting LED
  • 4 programmable LED backlit line keys
  • 2 soft keys
  • 7 dedicated feature keys
  • Keypad backlight

Audio / Voice

  • HD voice for receiver and speakerphone
  • Full-duplex speakerphone
  • HAC receiver
  • 2.5mm corded headset jack

Handset Features

  • 4-line call handling between active and held
  • Local phonebook up to 1,000 entries
  • Call history up to 200 entries
  • XML/LDAP remote phonebook
  • Do Not Disturb (DND)
  • 3-way local conference
  • N-way network conference
  • External/Internal call transfer between DECT phones1
  • Intercom between DECT phones1
  • Mute
  • Redial
  • 10 speed dial entries
  • Call transfer: blind/attended
  • Call hold
  • Call forwarding: per-line basis (busy/always/no answer)
  • Call timer (call duration)
  • Caller ID
  • Phonebook matching (incoming and outgoing calls)
  • Multi-language support
  • Integrated handset belt clip
  • Off-cradle auto answer
  • Keypad lock

Handset Power

  • 7 days/9 hours standby time/talk time
  • Cradle/charger: adapter 6v/100 mA
  • Handset battery: 2.4v/550 mAh Ni-MH

Other

  • 3-year standard warranty
  • Advanced product replacement for warranty claims with new product

Additional information

Color

Black

Brand

Snom

Connection type

Wireless

Series

Snom MSC-Series
