Description

Basics

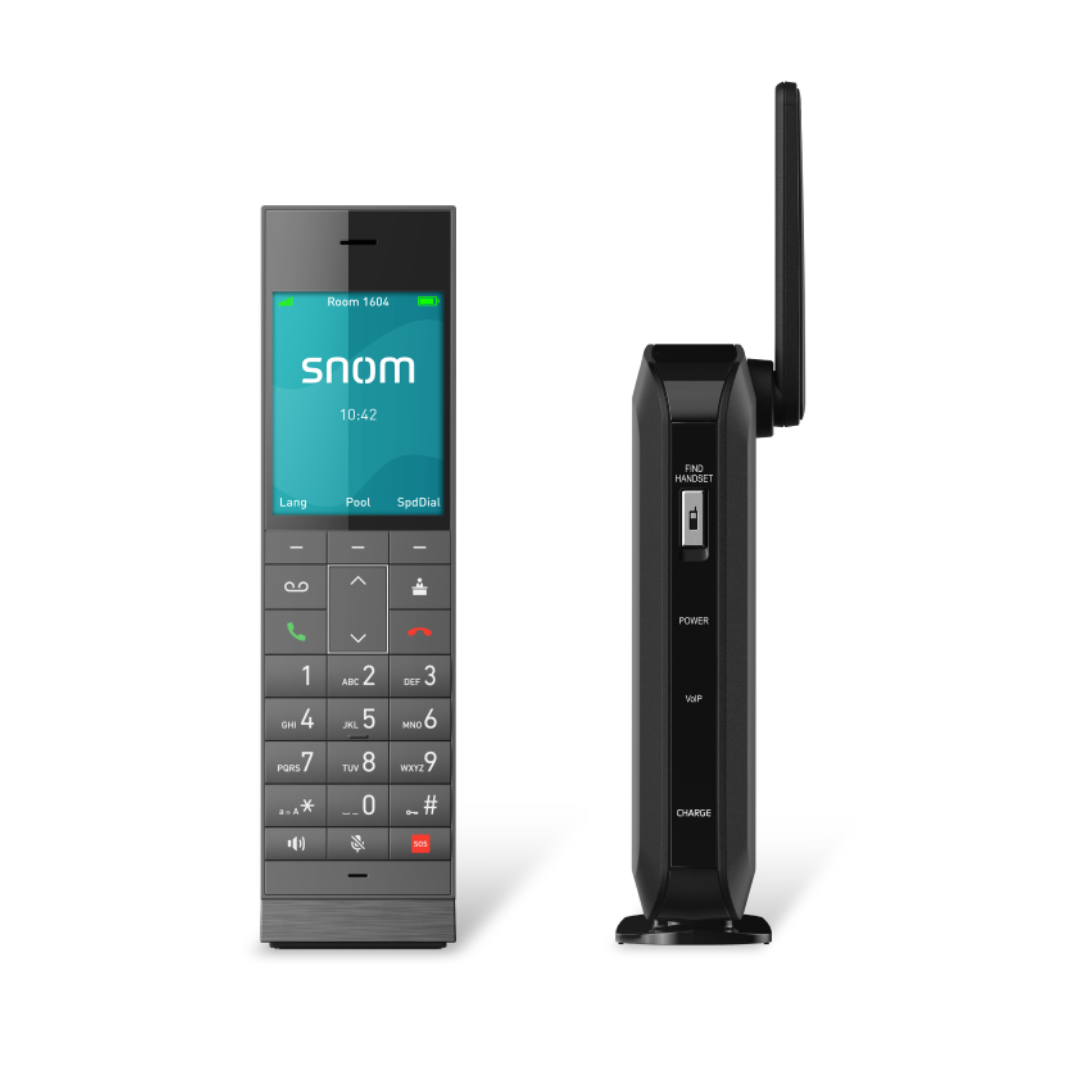

Product information

• Guest room phone
  • Bundle HM201: EU & UK, PN 00007006
  • DECT single-cell base station
  • DECT handset HM2 + charging cradle
• Colour
  • Base station: black
  • Handset: gunmetal black

Placement: indoor, desktop

• Base station: wall mounting

Dimensions and weight

Dimensions (H × W × D, approx.)

• Base station: 220 mm × 110 mm × 40 mm
• Handset: 180 mm × 50 mm × 15 mm
• Charging cradle: 32 mm × 50 mm × 63 mm
• Handset (on the charging cradle): 190 mm × 50 mm × 63 mm

Weight (approx.)

• Base station: 227 g
• Handset: 147 g
• Charging cradle: 215 g
• Handset (on the charging cradle): 357 g

Display and indicators

Handset: Display

• TFT liquid crystal display (LCD), true colour, extra slim, backlit
• Size (diagonal): 2.8″ (71 mm)

Base station: 2 LED indicators

• Power status indication: 1 green LED
• VoIP status indication: 1 green LED

Keypad and function keys

Base station: 2 hard keys in total

• Handset localisation
• Reset

Handset: 24 hard keys in total

• 12 keys (standard ITU telephone keypad)
• 3 context-sensitive function keys
• 4 dedicated audio keys
  • Mute
  • Speakerphone
  • Volume +
  • Volume –
• 5 dedicated function keys
  • Onhook
  • Offhook
  • Message
  • Front desk
  • Emergency

Audio devices, codecs and features

Base station

• Audio codecs: G.711 (A-law, μ-law), G.722, G.726, G.729AB, iLBC

Handset

• Microphone: Hearing aid compatible (HAC)
• Handset earpiece: Speakerphone mode

Interfaces and connections

Power options

• Base station: Power over Ethernet (PoE), IEEE 802.3af, class 2 or Power adapter¹ 100 – 240 V AC / 50 – 60 Hz | 5 V DC / 800 mA
• Handset: Battery lithium-ion 3.7 V, 1,000 mAh, preinstalled, removable, rechargeable, up to 7 h talk time, up to 120 h standby time, up to 11 h charging time
• Charging cradle: Power adapter¹ 100 – 240 V (AC), 50 – 60 Hz, 150 mA|6 V, 450 mA, 2.7 W

Wired interfaces

• Base station
  • Power adapter: coaxial power connector (socket)
  • Ethernet 10/100/1000 Mbit/s: 2 × RJ45-8P8C sockets
• Charging cradle
  • Power adapter: RJ-11 socket

Wireless interfaces

• DECT

User interfaces and setup

Base station

• Advanced SIP configuration tool for easy mass deployment and phone monitoring
• Handset localisation

Handset

• Comfortable and intuitive menu structure
• Real time clock, room number, and guest name programming available
• Low battery indication
• Remote maintenance

Networking technologies and protocols

VLAN (IEEE 802.1q)

SIP (RFC 3261)

Directory support and call features

Quick call answer (by simple pick-up from the base/charger)

Speed dialling: up to 10 (scrolling list on the display)

Mute microphone (via dedicated function key)

DECT technology and features

Standard: DECT

• Authentication/encryption of base and handset
• Wideband audio

Frequency band

• Australia & Europe: 1,880 – 1,900 MHz

Handsets HM2: up to 4

Environmental conditions

Operating ambient temperature: 0 °C – +40 °C

Humidity (non-condensing): 5 % – 95 %

Package contents

Hardware

• Base station
  • Ethernet cable
• DECT handset HM2
  • Battery: preinstalled
  • Charging cradle
  • Power adapter

Documentation

• Quick Installation Guide (QIG)

Snom accessories and compatible devices

Power adapter: Charging cradle PSU

• EU: PN 00004697
• UK: PN 00004698
• AU: PN 00004699

Battery HM2 (PN 00004627)
