Description

Basics

Product information

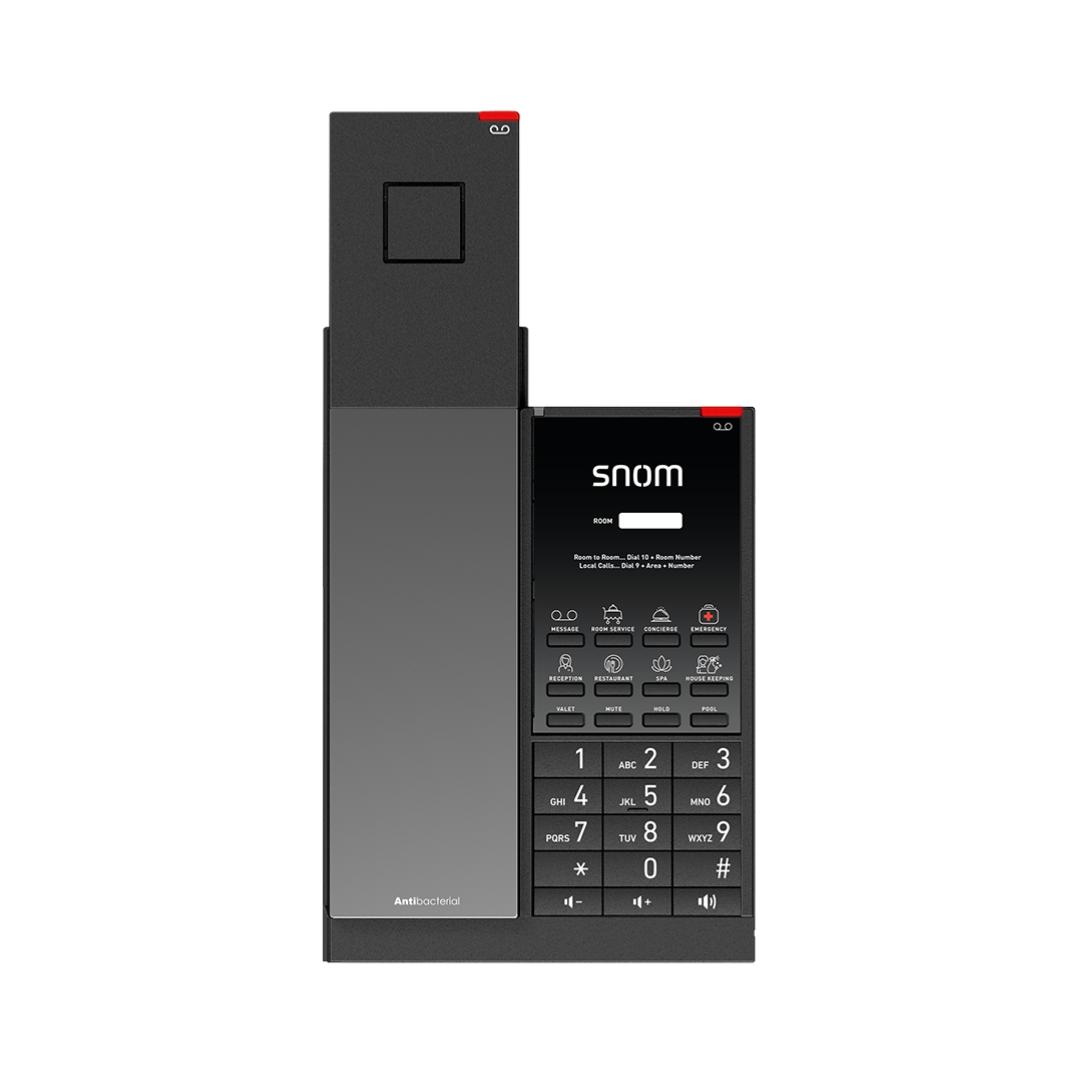

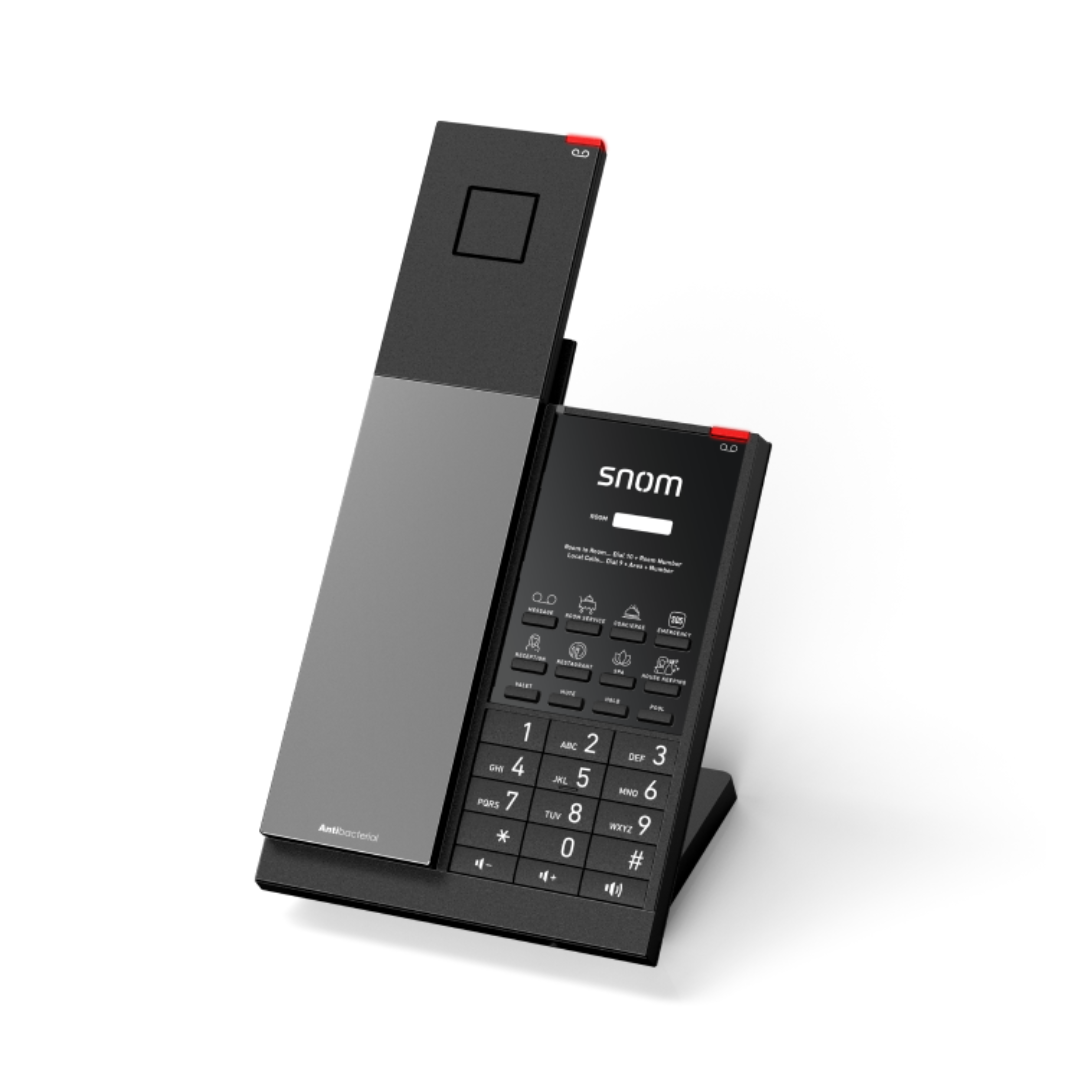

• Analog guest room phone|Cordless DECT handset|PN 00007031
• Colour: gunmetal black
• Anti-bacterial housing

Equipment

• Sturdy, solid construction
• Telephone base: Fully customisable faceplate for hotel branding and dialing instructions¹
• Cordless DECT handset: Customisable section for colour or hotel branding¹

Placement: indoor, desktop, nightstand, wall mounting

Dimensions and weight

Dimensions (H × W × D, approx.)

• Cordless DECT handset (on the base cradle, desk mounted): 109 mm × 146 mm × 182 mm
• Cordless DECT handset (on the base cradle, wall mounted): 109 mm × 56 mm × 216 mm

Weight (approx.)

• Cordless DECT handset (on the base cradle): 796 g

Display and indicators

9 LED indicators

Telephone base

• Call status indication|Message waiting indication (MWI): 1 red LED
• Mute status indication: 1 red LED
• Speakerphone mode: 1 red LED
• Charging indication: 1 red LED

Cordless DECT handset

• Message waiting indication (MWI): 1 red LED
• Flash/Talk key indication: 1 green LED
• Speakerphone mode: 1 red LED
• Mute status indication: 1 red LED
• Low battery indication: 1 red LED

Keypad and function keys

50 hard keys in total

Telephone base

• 12 keys (standard ITU telephone keypad)
• 4 dedicated audio keys
  • Mute (with red LED)
  • Speakerphone (with red LED)
  • Volume +
  • Volume –
• 3 dedicated function keys
  • Message
  • Hold
  • Emergency
• 8 programmable function keys
  • Speed dialling

Cordless DECT handset

• 12 keys (standard ITU telephone keypad), backlit
• 4 dedicated audio keys
  • Mute (with red LED)
  • Speakerphone (with red LED)
  • Volume +
  • Volume –
• 3 programmable function keys
  • Speed dialling
• 4 dedicated function keys
  • Talk (with green LED)
  • Off
  • Message
  • Hold

Audio devices, codecs and features

Telephone base

• Casing microphone
• Casing speaker

Cordless DECT handset

• Microphone
• Handset earpiece
• Hearing aid compatible (HAC)

Interfaces and connections

Power options

• Telephone base
  • Power adapter
    • 100 – 240 V AC / 50 – 60 Hz / 500 mA | 5 V DC / 2 A
• Cordless DECT handset
  • Battery lithium-ion, 3.7 V, 1,000 mAh, removable, rechargeable, up to 7 h talk time, up to 144 h standby time

Wired interfaces

• Network connectivity (PABX): RJ11-6P2C socket
• Power adapter: coaxial power connector (socket)

Wireless interfaces

• Handset: DECT³

Directory support and call features

Quick call answer (by simple pick-up from the base/charger)

Speed dialling via function keys

Mute microphone (via dedicated function key)

Speakerphone mode (via dedicated function key)

Hold (via dedicated function key)

DECT technology and features

Standard: DECT³

• Handsets: up to 4 total
• Wideband audio

Frequency band

• EU & UK: 1,881.792 – 1,897.344 MHz

Easy registration to compatible base stations

Environmental conditions

Operating ambient temperature:

• 5 °C – +45 °C

Humidity (non-condensing):

• 5 % – 95 %

Package contents

Hardware

• Telephone base
• Cordless DECT handset
• Battery
• Power adapter
• Footstand
• Wall mount kit

Documentation

• Quick Installation Guide

Snom accessories and compatible devices

DECT handset & charging cradle

• Up to 3 × HD3 (PN 00007011)

Battery PN 00004627

Power adapter: HD351A PSU

• EU: PN 00007036
• UK: PN 00007037
• AU: PN 00007038
