Description

Basics

Product information

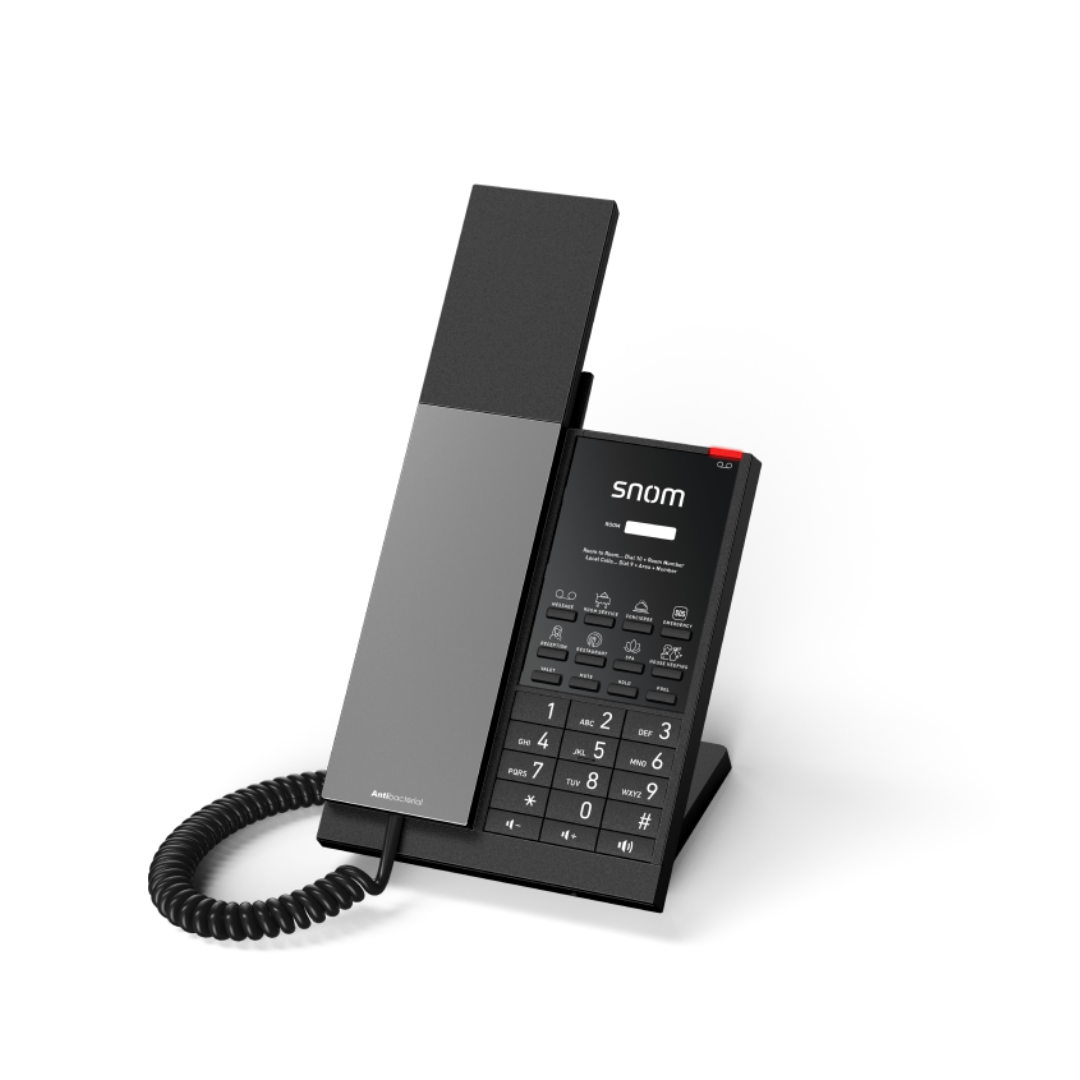

• Guest room phone (WLAN)|Corded handset|PN 00007008
• Colour: gunmetal black
• Anti-bacterial housing

Equipment

• Sturdy, solid construction
• Fully customisable faceplate for hotel branding and dialing instructions¹

Placement: indoor, desktop, nightstand, wall mounting

Dimensions and weight

Dimensions (H × W × D, approx.)

• Corded handset (on the base cradle, desk mounted): 109 mm × 146 mm × 182 mm
• Corded handset (on the base cradle, wall mounted): 109 mm × 56 mm × 216 mm

Weight (approx.)

• Corded handset (on the base cradle): 778 g

Display and indicators

Telephone base: 3 LED indicators

• Call status indication|Message waiting indication (MWI): 1 red LED
• Mute status indication: 1 red LED
• Speakerphone mode: 1 red LED

Telephone base: 27 hard keys in total

• 12 keys (standard ITU telephone keypad)
• 4 dedicated audio keys: Mute (with red LED), Speakerphone (with red LED), Volume +, Volume –
• 8 programmable function keys: Speed dialling
• 3 dedicated function keys: Message, Emergency, Hold

Keypad and function keys

Audio devices, codecs and features

Telephone base

• Casing microphone
• Casing speaker

Corded handset

• Microphone
• Handset earpiece
• Hearing aid compatible (HAC)

Built-in assignable ringtones

Interfaces and connections

Power options

• Power over Ethernet (PoE)
  • IEEE 802.3at, class 2
• Power adapter:
  • 100 – 240 V AC / 50 – 60 Hz / 500 mA | 5 V DC / 2 A

Wired interfaces

• Telephone base
  • Network connectivity: 2 × RJ45-8P8C (NET & PC) sockets → Gigabit Ethernet (GbE)
  • Power adapter: coaxial power connector (socket)
  • Handset cord: custom socket
• Corded handset
  • Handset cord: custom socket

Wireless interfaces

• Network connectivity: Wireless LAN

User interfaces and setup

Configuration and setup via voice menu

Configuration and setup via menu-driven web user interface (WUI)

Advanced SIP configuration tool for easy mass deployment and phone monitoring

Secure Redirection And Provisioning Service (SRAPS) support

Networking technologies and protocols

VLAN support

Wireless LAN

• Frequency band (2G): 2,412 – 2,472 MHz
  • IEEE 802.11b (Wi-Fi 2) up to 11 Mbps
  • IEEE 802.11g (Wi-Fi 3) up to 54 Mbps
  • IEEE 802.11n (Wi-Fi 4) up to 150 Mbps
• Frequency band (5G): 5,180 – 5,320 MHz, 5,500 – 5,700 MHz
  • IEEE 802.11a (Wi-Fi 1) up to 54 Mbps
  • IEEE 802.11n (Wi-Fi 4) up to 150 Mbps
  • IEEE 802.11ac (Wi-Fi 5) up to 433 Mbps
• WLAN encryption
  • WPA3/WPA2 Enterprise (EAP-TLS, PEAP)
  • WPA3/WPA2 Personal
  • WPA2/WPA Enterprise (EAP-TLS, PEAP)
  • WPA2 Enterprise
• Output power: EU < 20 dBm EIRP

SIP (RFC 3261)

Directory support and call features

1 SIP identity / account

Mute microphone (via dedicated function key)

Speakerphone mode (via dedicated function key)

Hold (via dedicated function key)

Speed dialling via function keys

Multicast paging

Interoperability

Interoperable with all major IP-PBX platforms

Environmental conditions

Operating ambient temperature:

• 5 °C – +45 °C

Humidity (non-condensing):

• 5 % – 95 %

Package contents

Hardware

• Telephone base
• Corded handset: Cable length (approx.) 0.3 m
• Power adapter
• Footstand
• Wall mount kit
• 2 Ethernet cables: Cable length (approx.) 140 mm|2 m

Documentation

• Quick Installation Guide

Snom accessories and compatible devices

Power adapter: Telephone base PSU

• EU: PN 00004687
• UK: PN 00004688
• AU: PN 00004689
