Description

Basics

Product information

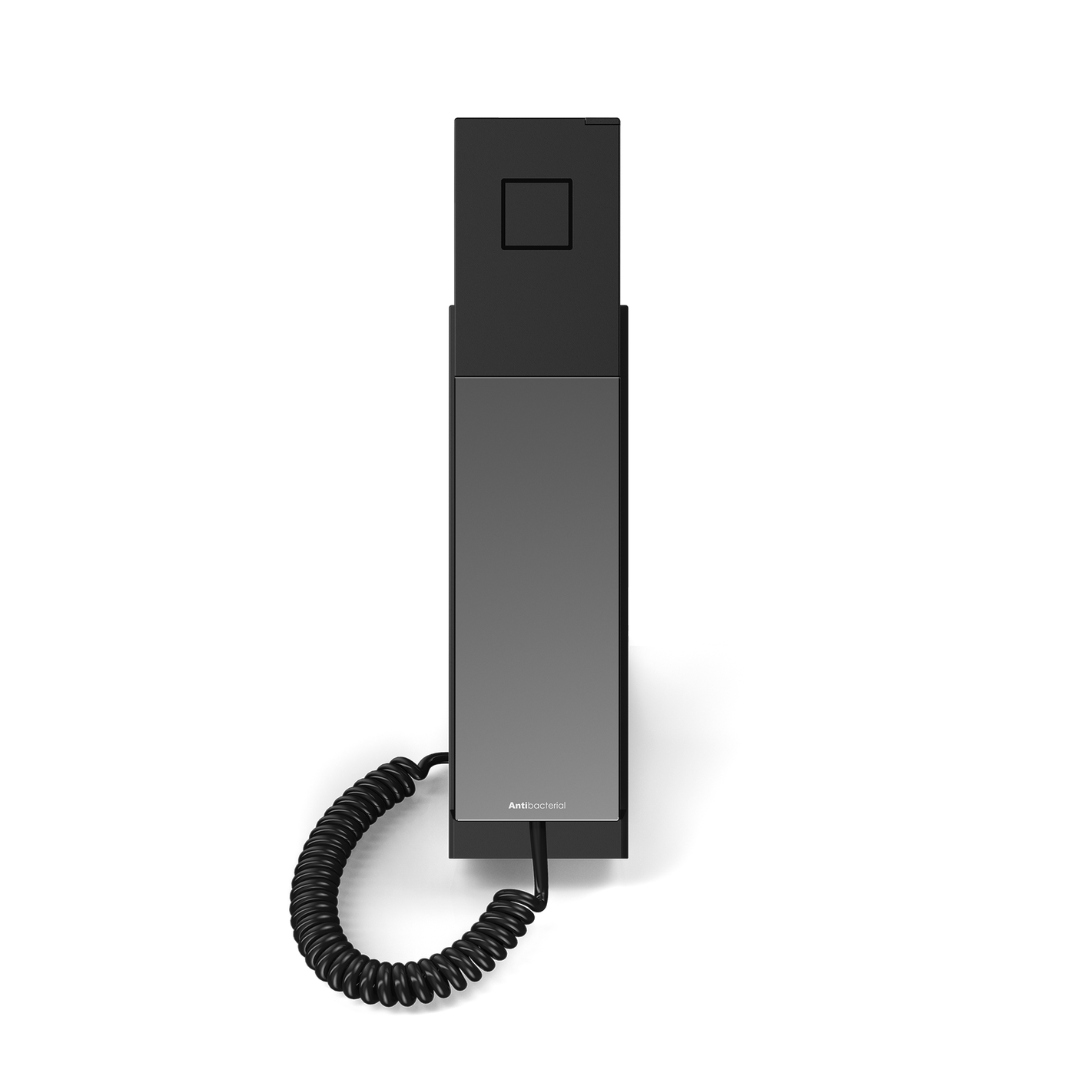

• Guest room phone|Corded handset|PN 00007010
• Colour: gunmetal black

Equipment

• Anti-bacterial housing
• Sturdy, solid construction
• Fully customisable faceplate for hotel branding and dialing instructions¹

Placement: indoor, desktop, nightstand, wall mounting

Dimensions and weight

Dimensions (H × W × D, approx.)

• Corded handset (on the base cradle, desk mounted): 182 mm × 53 mm × 146 mm
• Corded handset (on the base cradle, wall mounted): 216 mm × 53 mm × 56 mm

Weight (approx.)

• Corded handset (on the base cradle): 400 g

Display and indicators

Corded handset: 3 LED indicators

• Call status indication|Message waiting indication (MWI): 1 red LED
• Mute status indication: 1 red LED
• Speakerphone mode: 1 red LED

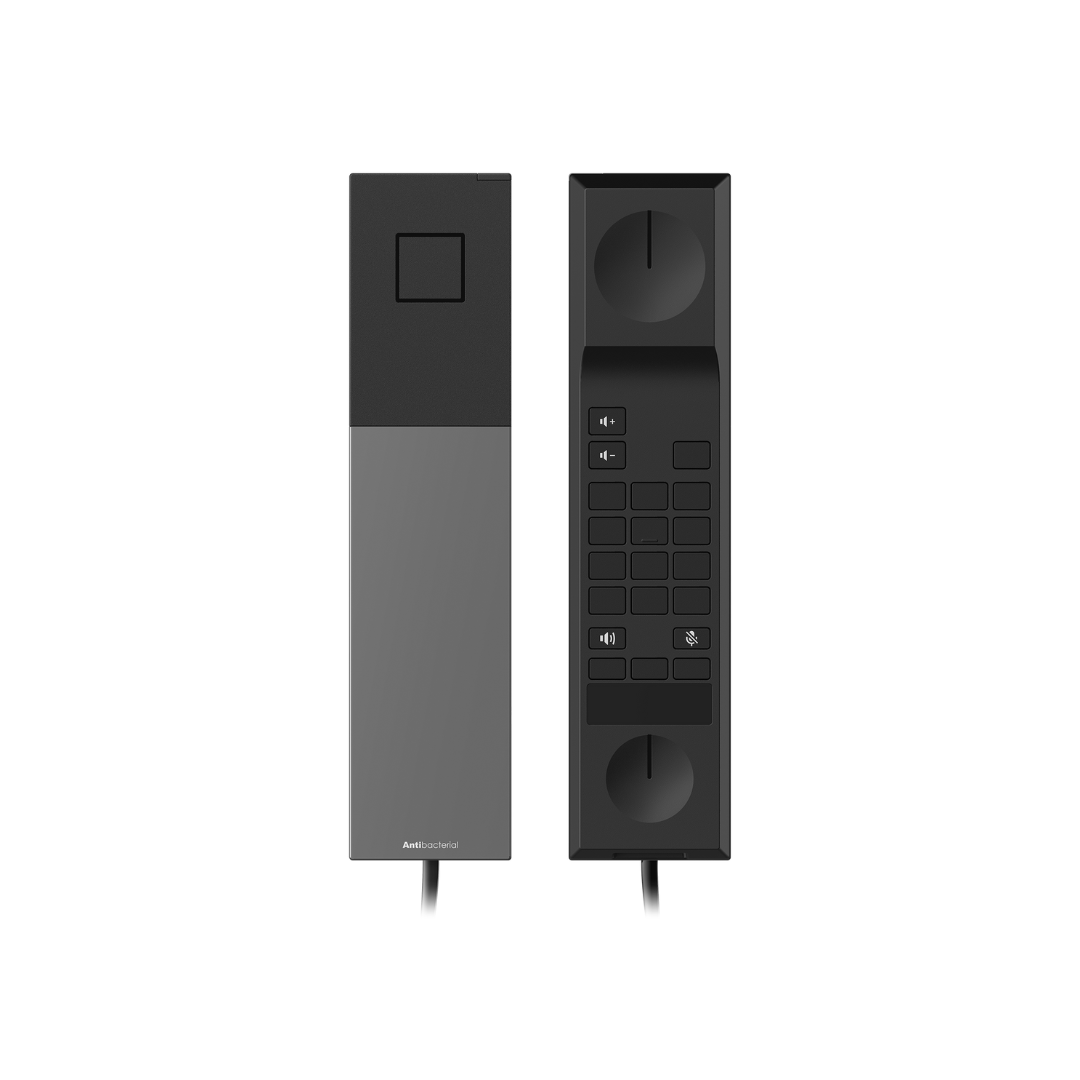

Corded handset: 20 hard keys in total

• 12 keys (standard ITU telephone keypad)
• 4 dedicated audio keys
  • Mute (with red LED)
  • Speakerphone mode (with red LED)
  • VOL+ → Volume +
  • VOL- → Volume –
• 1 dedicated function key: Message
• 3 programmable function keys: Speed dialling

Keypad and function keys

Audio devices, codecs and features

Corded handset

• Microphone
• Handset earpiece
• External speaker

Hearing aid compatible (HAC)

Built-in assignable ringtones

Interfaces and connections

Power options

• Power over Ethernet (PoE)
  • IEEE 802.3af, class 2

Wired interfaces

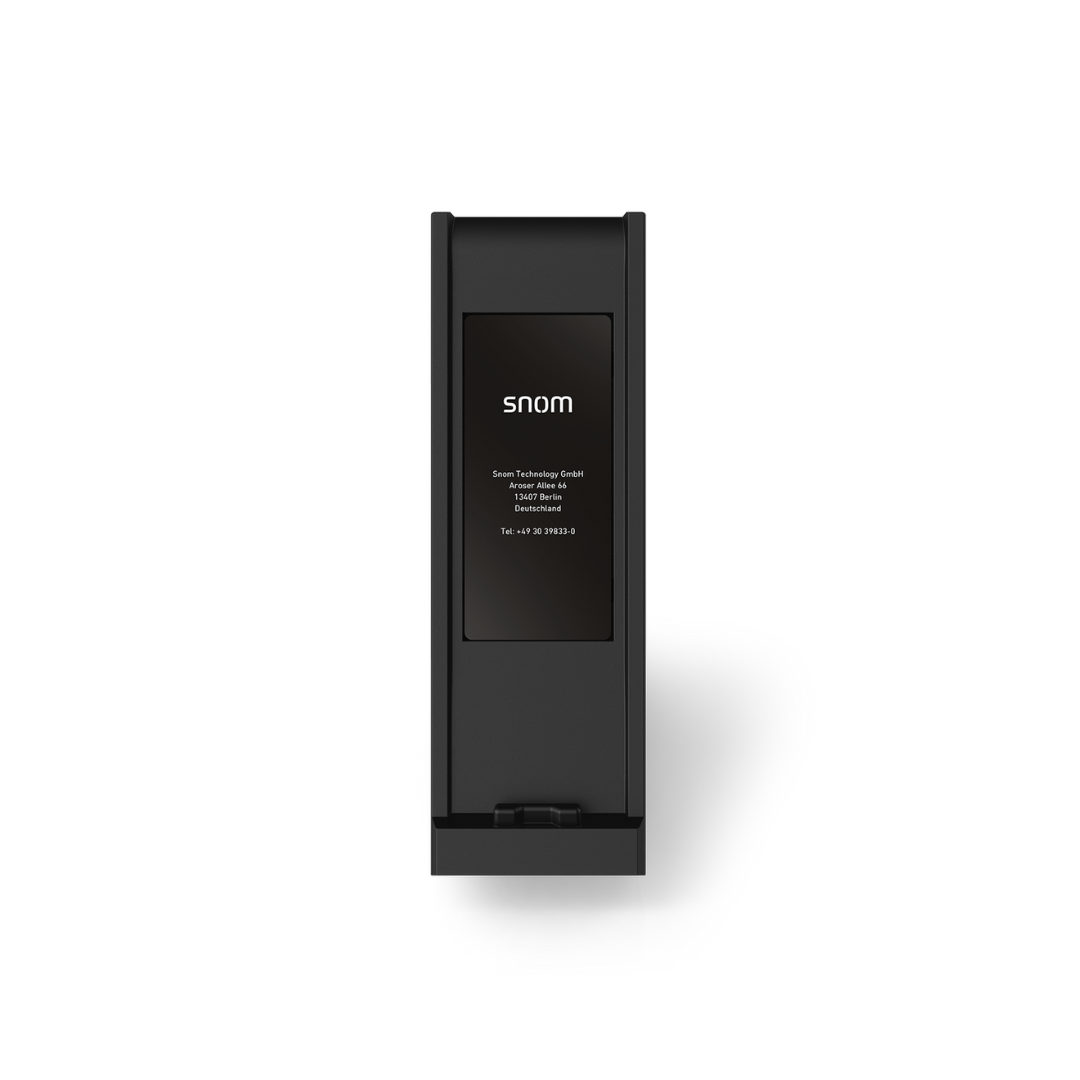

• Telephone base
  • Network connectivity: RJ45-8P8C socket → Gigabit Ethernet (GbE)
  • Handset cord: custom socket
• Corded handset
  • Handset cord: custom socket

User interfaces and setup

Configuration and setup via voice menu

Configuration and setup via menu-driven web user interface (WUI)

Advanced SIP configuration tool for easy mass deployment and phone monitoring

Secure Redirection And Provisioning Service (SRAPS) support

Networking technologies and protocols

VLAN support

SIP (RFC 3261)

Directory support and call features

1 SIP identity / account

Speed dialling via function keys

Mute microphone (via dedicated function key)

Multicast paging

DECT technology and features

Interoperability

Interoperable with all major IP-PBX platforms

Environmental conditions

Operating ambient temperature:

• 5 °C – +45 °C

Humidity (non-condensing)

• 5 % – 95 %

Package contents

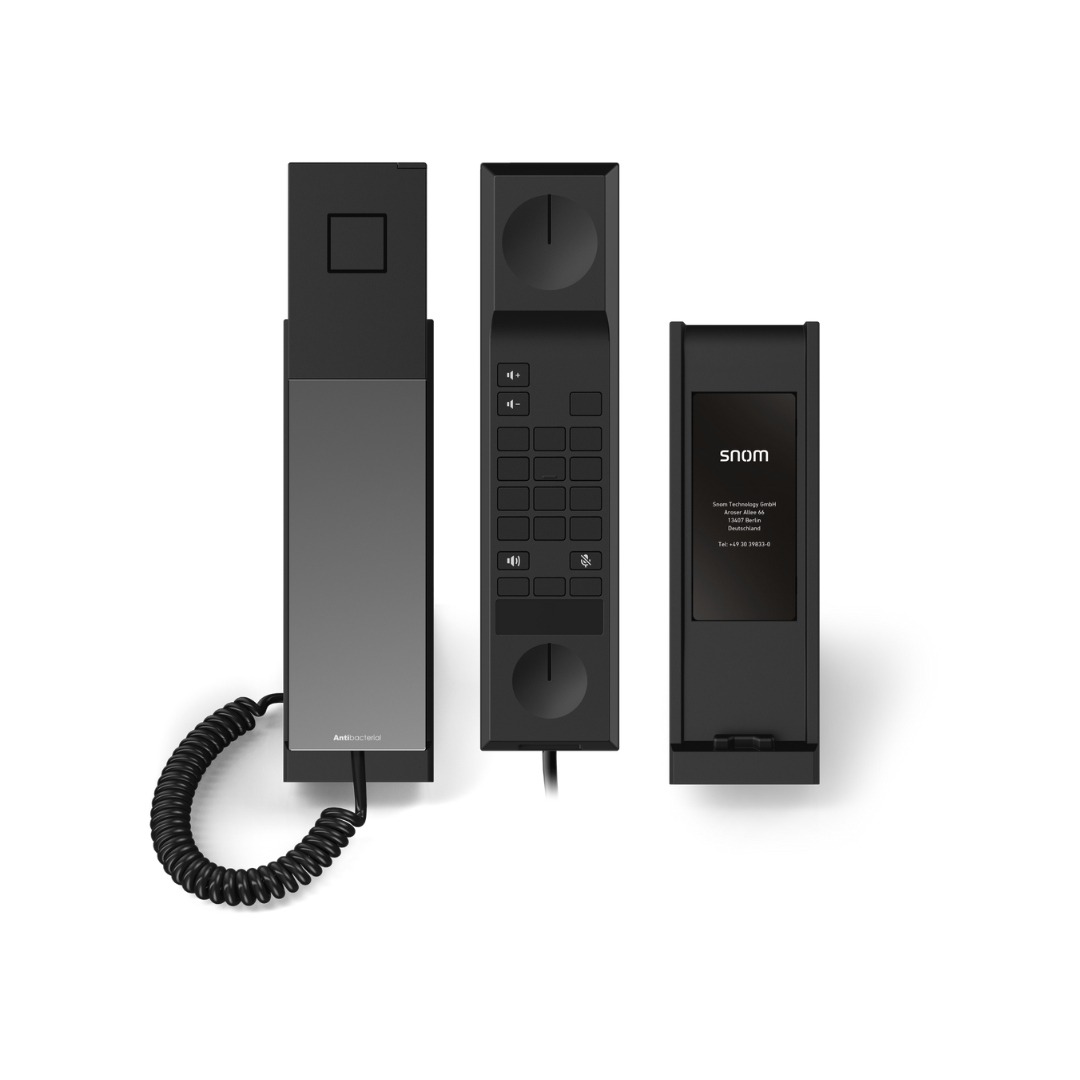

Hardware

• Telephone base
• Handset
• Handset cord: 330 mm
• Footstand
• Wall mount kit
• 2 Ethernet cables: Cable length (approx.) 125 mm|2 m

Documentation

• Quick Installation Guide

Snom accessories and compatible devices

PoE injector: A5 (PN 00004065)
