Description

Basics

Product information

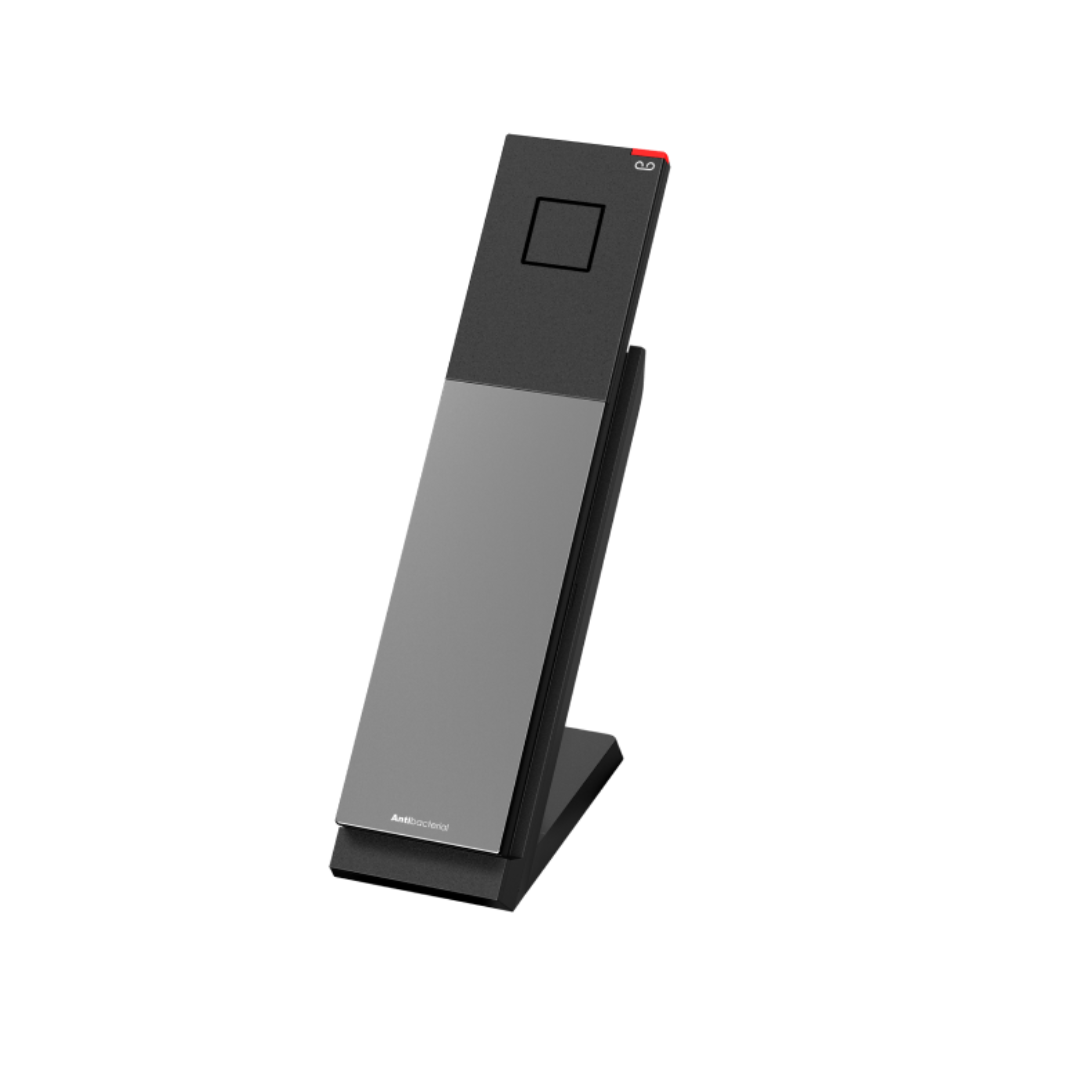

• Cordless DECT handset|Charging cradle|PN 00007011
• Colour: gunmetal black
• Sturdy, solid construction
• Customisable section for colour or hotel branding
• Anti-bacterial housing

Placement: indoor, desktop, nightstand

Dimensions and weight

Dimensions (H x W x D, approx.)

• Handset: 48 mm × 21 mm × 203 mm
• Charging cradle: 51 mm × 121 mm × 133 mm
• Handset (on the charging cradle, desk mounted): 53 mm × 56 mm × 216 mm

Weight (approx.)

• Handset: 145 g
• Charging cradle: 72 g
• Handset (on the charging cradle, desk mounted): 344 g

Display and indicators

Handset: 5 LED indicators

• Message waiting indication (MWI): 1 red LED
• Flash/Talk key indication: 1 green LED
• Speakerphone mode: 1 red LED
• Mute status indication: 1 red LED
• Low battery indication: 1 red LED

Charging cradle: 1 LED indicator

• Charging indication: 1 red LED

Handset: 23 hard keys in total

• 12 keys (standard ITU telephone keypad), backlit
• 4 dedicated audio keys: Mute (with red LED), Speakerphone (with red LED), Volume +, Volume –
• 3 programmable function keys: Speed dialling
• 4 dedicated function keys:
  • Offhook (with green LED)
  • Onhook
  • Message
  • Hold

Audio devices, codecs and features

Microphone

Handset earpiece: Hearing aid compatible (HAC)

Casing speaker: Speakerphone mode (via dedicated function key)

Built-in assignable ringtones

Interfaces and connections

Power options

• Handset: Battery lithium-ion, 3.7 V, 1,000 mAh, removable, rechargeable, up to 7 h talk time, up to 120 h standby time, up to 11 h charging time
• Charging cradle: Power adapter (VT-PLII) 100 – 240 V AC, 50/60 Hz, 150 mA|6 V DC, 450 mA, 2.7 W

Wired interfaces

• Charging cradle: coaxial power connector (socket)

Wireless interfaces

• DECT

Directory support and call features

Speed dialling via function keys

Mute microphone (via dedicated function key)

Hold (via dedicated function key)

Quick call answer (by simple pick-up from the base/charger)

Multicast paging

DECT technology and features

Standard: DECT

• Wideband audio

Frequency band

• EU & UK & AU: 1,881.792 – 1,897.344 MHz

Easy registration to compatible base stations

Environmental conditions

Operating ambient temperature:

• 5 °C – 45 °C

Humidity (non-condensing):

• 5 % – 95 %

Package contents

Hardware

• DECT handset HD3
• Battery
• Charging cradle
• Power adapter

Documentation

• Quick Installation Guide

Snom accessories and compatible devices

Guest room phone: HD351W (PN 00007009)

Battery HD3 (PN 00004627)

Power adapter: HD3 PSU

• EU: PN 00004683
• UK: PN 00004684
• AU: PN 00004685
