Description

Basics

Product information

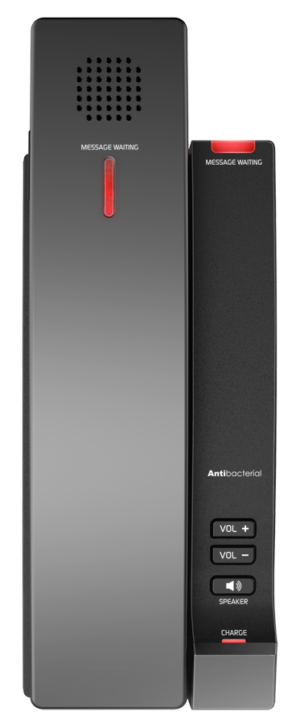

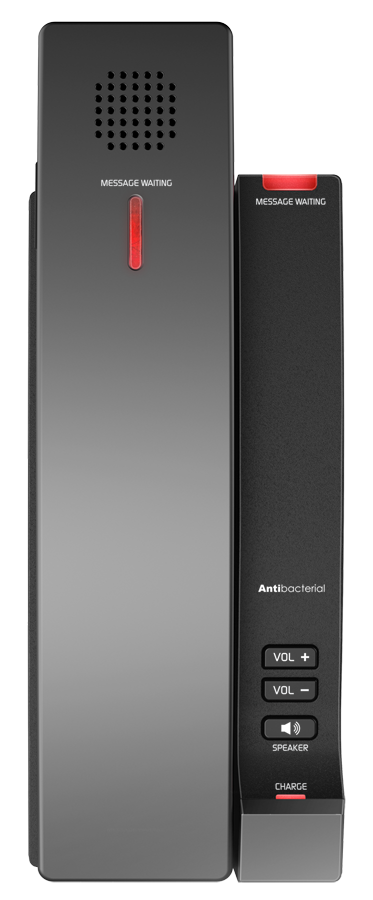

• Guest room phone|Cordless DECT handset|PN 00007001
• Colour: gunmetal black
• Anti-bacterial housing

Equipment

• Sturdy, solid construction
• Fully customisable faceplate for hotel branding and dialing instructions¹

Placement: indoor, desktop, nightstand, wall mounting

Dimensions and weight

Dimensions (H × W × D, approx.)

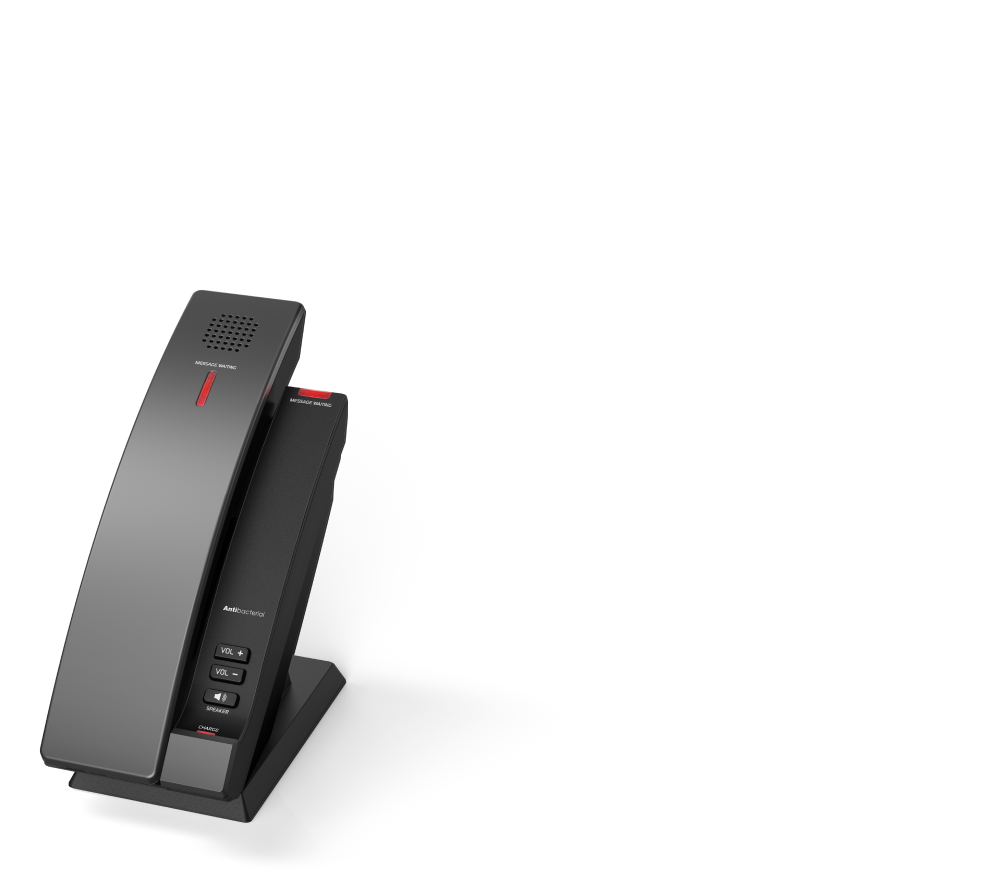

• Cordless DECT handset on the base cradle (desk mounted): 79 mm × 176 mm × 163 mm
• Cordless DECT handset on the base cradle (wall mounted): 79 mm × 78 mm × 211 mm

Weight (approx.)

• Cordless DECT handset on the base cradle: 645 g

Display and indicators

6 LED indicators

• Cordless DECT handset
  • Flash/Talk key indication: 1 red LED
  • Mute status indication: 1 red LED
  • Speakerphone mode: 1 red LED
  • Hold status indication: 1 red LED
  • Low battery indication|Charging indication: 1 red LED
• Telephone base
  • Call status indication|Message waiting indication (MWI): 1 red LED

31 hard keys in total

• Cordless DECT handset
  • 12 keys (standard ITU telephone keypad), backlit
  • 4 dedicated audio keys
    • SPEAKER → Speakerphone (with red LED)
    • MUTE → Mute (with red LED)
    • +VOLUME- → Volume + / – (rocker)
  • 2 programmable function keys: Speed dialling
  • 5 dedicated function keys
    • TALK/FLASH → Offhook (with red LED)
    • EMERGENCY → Emergency
    • OFF → Onhook / Cancel
    • HOLD → Hold (with red LED)
    • MESSAGES → Message
• Telephone base
  • 3 dedicated audio keys
    • VOL+ → Volume +
    • VOL- → Volume –
    • SPEAKER → Speakerphone (with red LED)
  • 4 programmable function keys: Speed dialling
  • 1 dedicated function key

• FIND HS → Handset localisation

Keypad and function keys

Audio devices, codecs and features

Telephone base

• Casing microphone
• Casing speaker

Cordless DECT handset

• Microphone
• Handset earpiece
• Hearing aid compatible (HAC)

Built-in assignable ringtones

Interfaces and connections

Power options

• Telephone base
  • Power over Ethernet (PoE): IEEE 802.3af, class 2
  • Power adapter:¹ (VT-PLII) 100 – 240 V AC / 50/60 Hz / 500 mA | 5 V DC / 2 A
• Cordless DECT handset
  • Battery (CORUN) AAA-NiMH, 2.4 V, 550 mAh, preinstalled, removable, rechargeable, up to 7 h talk time, up to 120 h standby time, up to 16 h charging time

Wired interfaces

• Network connectivity: RJ45-8P8C socket → Gigabit Ethernet (GbE)
• Power adapter:¹ coaxial power connector (socket)

Wireless interfaces

• Handsets: DECT

User interfaces and setup

Configuration and setup via voice menu

Configuration and setup via menu-driven web user interface (WUI)

Advanced SIP configuration tool for easy mass deployment and phone monitoring

Secure Redirection And Provisioning Service (SRAPS) support

Networking technologies and protocols

VLAN support

SIP (RFC 3261)

Directory support and call features

1 SIP identity / account

Quick call answer (by simple pick-up from the base/charger)

Speed dialling via function keys

Mute microphone (via dedicated function key)

Speakerphone mode (via dedicated function key)

Hold (via dedicated function key)

Multicast paging

Interoperability

Interoperable with all major IP-PBX platforms

Environmental conditions

Operating ambient temperature

• 5 °C – +45 °C

Humidity (non-condensing):

• 5 % – 95 %

Package contents

Hardware

• Telephone base
• Cordless DECT handset
• Battery
• Footstand
• Wall mount kit
• 2 Ethernet cables: Cable length (approx.) 140 mm|2 m

Documentation

• Quick Installation Guide

Snom accessories and compatible devices

DECT handset & charging cradle¹

• Up to 3 × HD1 (PN 00007002)

Battery PN 00004509

Power adapter:¹ HD101 PSU

• EU: PN 00004687
• UK: PN 00004688
• AU: PN 00004689
