Description

Basics

Product information

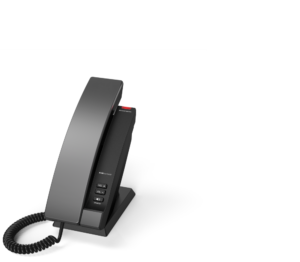

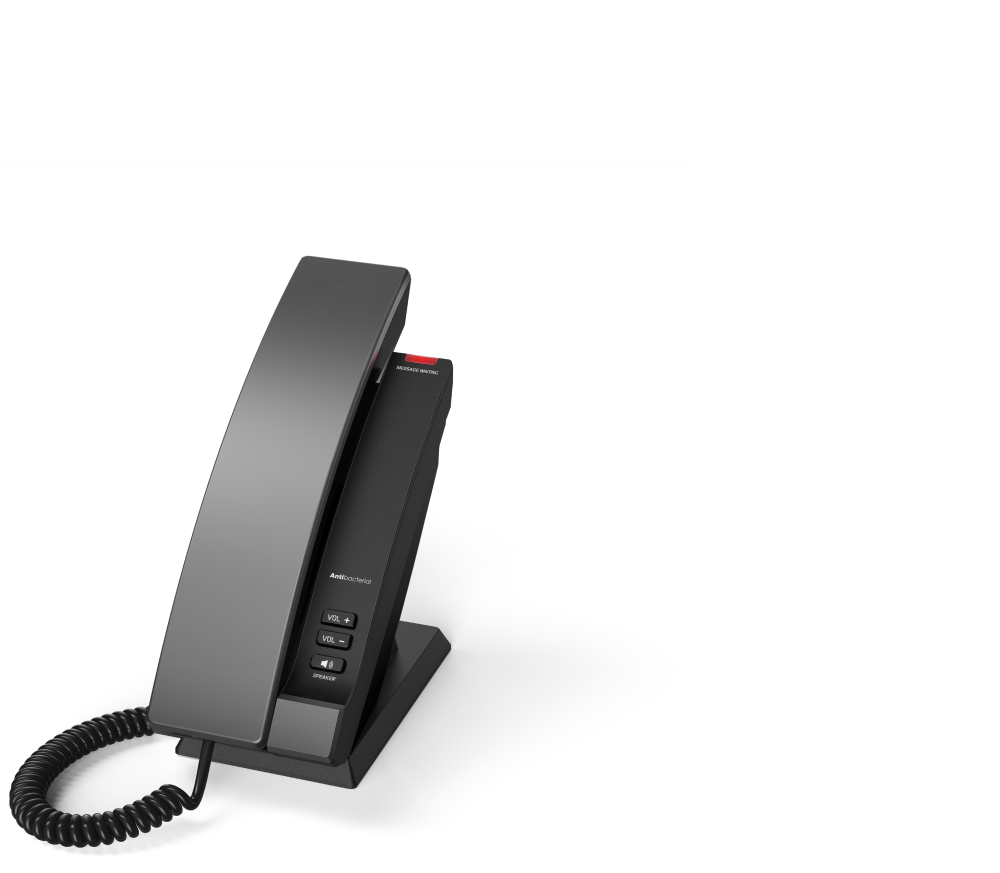

• Guest room phone|Corded handset|PN 00007000
• Colour: gunmetal black
• Anti-bacterial housing

Equipment

• Sturdy, solid construction
• Fully customisable faceplate for hotel branding and dialing instructions¹

Placement: indoor, desktop, nightstand, wall mounting

Dimensions and weight

Dimensions (H × W × D, approx.)

• Corded handset (on the base cradle, desk mounted): 79 mm × 176 mm × 163 mm
• Corded handset (on the base cradle, wall mounted): 79 mm × 78 mm × 211 mm

Weight (approx.)

• Corded handset (on the base cradle): 665 g

Display and indicators

2 LED indicators

• Corded handset
  • Mute status indication: 1 red LED
• Telephone base
  • Call status indication|Message waiting indication (MWI): 1 red LED

26 hard keys in total

• Corded handset
  • 12 keys (standard ITU telephone keypad)
  • 3 dedicated audio keys
    • MUTE → Mute (with red LED)
    • VOL+ → Volume +
    • VOL- → Volume –
  • 2 dedicated function keys
    • EMERGENCY → Emergency
    • MESSAGES → Message
  • 2 programmable function keys: Speed dialling
• Telephone base
  • 3 dedicated audio keys
    • VOL+ → Volume +
    • VOL- → Volume –
    • SPEAKER → Speakerphone (with red LED)

• 4 programmable function keys: Speed dialling

Audio devices, codecs and features

Telephone base

• Casing microphone
• Casing speaker

Corded handset

• Microphone
• Handset earpiece
• Hearing aid compatible (HAC)

Built-in assignable ringtones

Interfaces and connections

Power options

• Power over Ethernet (PoE)
  • IEEE 802.3af, class 2
• Power adapter¹
  • 100 – 240 V AC / 50/60 Hz / 500 mA | 5 V DC / 2 A

Wired interfaces

• Telephone base
  • Network connectivity: RJ45-8P8C socket → Gigabit Ethernet (GbE)
  • Power adapter:¹ coaxial power connector (socket)
  • Handset cord: custom socket
• Corded handset
• Handset cord: custom socket

User interfaces and setup

Networking technologies and protocols

VLAN support

SIP (RFC 3261)

Directory support and call features

1 SIP identity / account

Speed dialling via function keys

Speakerphone mode (via dedicated function key)

Mute microphone (via dedicated function key)

Multicast paging

Interoperability

Interoperable with all major IP-PBX platforms

Environmental conditions

Operating ambient temperature: 5 °C – +45 °C

Humidity (non-condensing): 5 % – 95 %

Package contents

Hardware

• Telephone base
• Corded handset
• Footstand
• Wall mount kit
• 2 Ethernet cables: Cable length (approx.) 140 mm|2 m

Documentation

• Quick Installation Guide

Snom accessories and compatible devices

Power adapter:¹ Telephone base PSU

• EU: PN 00004687
• UK: PN 00004688
• AU: PN 00004689
