Description

Basics

Product information

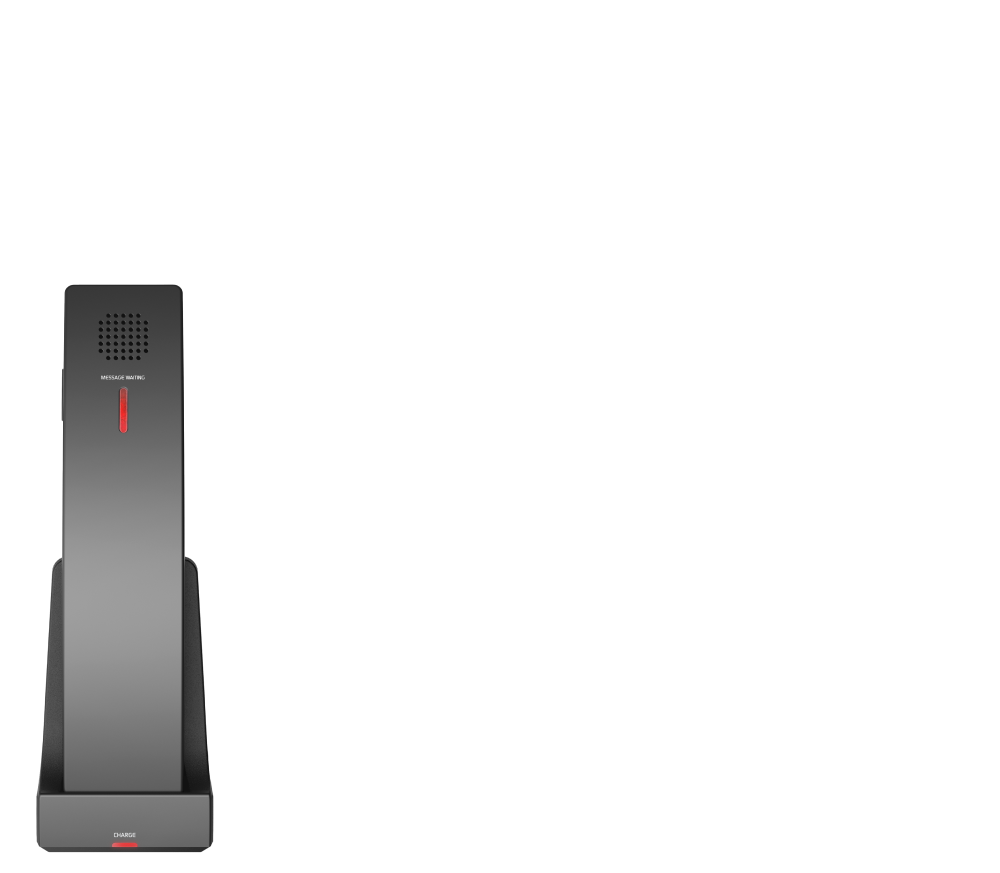

• Cordless DECT handset|charging cradle|PN 00007002
• Colour: gunmetal black
• Anti-bacterial housing
• Sturdy, solid construction
• Ultra small footprint and compact design

Placement: indoor, desktop, nightstand

Dimensions and weight

Dimensions (H x W x D, approx.)

• Handset: 213 mm × 49 mm × 42 mm
• Charging cradle: 71 mm × 96 mm × 108 mm
• Handset (on the charging cradle, desk mounted): 71 mm × 115 mm × 214 mm

Weight (approx.)

• Handset: 178 g
• Charging cradle: 285 g

• • Handset (on the charging cradle, desk mounted): 469 g

Display and indicators

6 LED indicators

• Charging cradle
  • Charging indication: 1 red LED
• Handset
  • Flash/Talk key indication: 1 red LED
  • Mute status indication: 1 red LED
  • Speakerphone mode: 1 red LED
  • Hold status indication: 1 red LED
  • Low battery indication|Charging indication: 1 red LED

Handset: 23 hard keys in total

• 12 keys (standard ITU telephone keypad), backlit
• 4 dedicated audio keys
  • SPEAKER ⇒ Speakerphone mode (with red LED)
  • MUTE ⇒ Mute (with red LED)
  • +VOLUME- ⇒ Volume + / – (rocker)
• 2 programmable function keys
  • Speed dialling
• 5 dedicated function keys
  • TALK/FLASH ⇒ Offhook (with red LED)
  • EMERGENCY [➕] ⇒ Emergency
  • OFF ⇒ Onhook / Cancel
  • HOLD ⇒ Hold (with red LED)

• • MESSAGES ⇒ Message

Keypad and function keys

Audio devices, codecs and features

Microphone

Handset earpiece

• Hearing aid compatible (HAC)

Casing speaker

• • Speakerphone mode (via dedicated function key)

Interfaces and connections

Power options

• Handset: Battery (CORUN) AAA-NiMH 2.4 V, 550 mAh, preinstalled, removable, rechargeable, up to 7 h talk time, up to 5 days standby time, up to 16 h charging time
• Charging cradle: Power adapter (VT-PLII) 100 – 240 V AC, 50/60 Hz, 150 mA|6 V DC, 450 mA, 2.7 W

Wired interfaces

• Charging cradle: coaxial power connector (socket)

Wireless interfaces

• • DECT

Networking technologies and protocols

Standard: DECT

• Authentication/encryption of base and handset
• Wideband audio

Frequency band

• EU & UK & AU: 1,881.792 – 1,897.344 MHz

Easy registration to compatible base stations (HD101)

Directory support and call features

Speed dialling via function keys

Mute microphone (via dedicated function key)

Hold (via dedicated function key)

Multicast paging

Quick call answer (by simple pick-up from the base/charger)

Environmental conditions

Operating ambient temperature: 5 °C – 45 °C

Humidity (non-condensing): 5 % – 95 %

Package contents

Hardware

• DECT handset HD1
• Battery: preinstalled
• Charging cradle
• Power adapter

Documentation

• • Quick Installation Guide (QIG)

Snom accessories and compatible devices

Guest room phone: HD101 (PN 00007001)

Power adapter: Charging cradle HD1 PSU

• EU: PN 00004683
• UK: PN 00004684
• AU: PN 00004685

Battery HD1 (PN 00004509)
