Product information

Dimensions and weight

Dimensions (L x W x D, approx.) without footstand

• 210 mm × 140 mm × 43 mm

Dimensions (H × W × D, approx.) with footstand (fix angle 40°)

• 155 mm × 118 mm × 170 mm

Weight (approx.)

• 400 g without footstand
• 455 g with footstand

Display and indicators

Display

• TFT liquid crystal display (LCD), true colour, backlit
• Size (diagonal): 6.86″ (172 mm)
• Size (W × H): 60 mm × 161 mm
• Resolution: 1,280 × 480 pixels

23 LED indicators

• Function key status indication: 20 multicolour LEDs
• Page keys indication: 3 green LEDs

Keypad and function keys

23 hard keys in total

• 20 SmartLabel keys (with multicolour LED)
• Key mapping of up to 60 functions (20 keys × 3 pages)
• 3 dedicated function keys: Page 1/2/3

Interfaces and connections

Power options

• USB powering: 5 V
• Power adapter:¹ 100 – 240 V AC, 50 – 60 Hz | 5 V DC (SELV), 2 A, 10 W

Wired interfaces

• Daisy chaining|USB powering|USB headsets and other accessories
• USB 2.0 type A port
• USB 2.0 type A plug
• Power adapter:¹ coaxial power connector (socket)

User interfaces and setup

Plug & Play

Completely configurable via host phone

Customisation

• Theme and icon support
• Custom background image support

Environmental conditions

Operating ambient temperature

• 0 °C – +35 °C

Nonoperating (storage) temperature

• -10 °C – +45 °C

Humidity (non-condensing)

• 5 % – 95 %

Package contents

Hardware

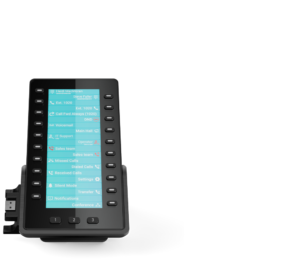

• Expansion module D8C
• Footstand
• Screws

Documentation

• Quick Installation Guide

Snom accessories and compatible devices

Power adapter¹

• EU & UK: Snom 10 W PSU (PN 00004570)
• Americas: Snom 10 W PSU (PN 00004571)

USB dongle

• WLAN: A210 (PN 00004384)
• DECT: A230 (PN 00004386)

Wired headset via USB

• Monaural: A330M (PN 00004597)
• Binaural: A330D (PN 00004598)

DECT headset via USB (DECT)

• A150 (PN 00004388)

IP desk phone (USB)²

• D812 (PN 00004690)
• EU & UK: D815W (PN 00004691)
• Americas: D815W (PN 00004692)
• D862 (PN 00004535)
• EU & UK: D865 (PN 00004536)
• Americas: D865 (PN 00004546)
