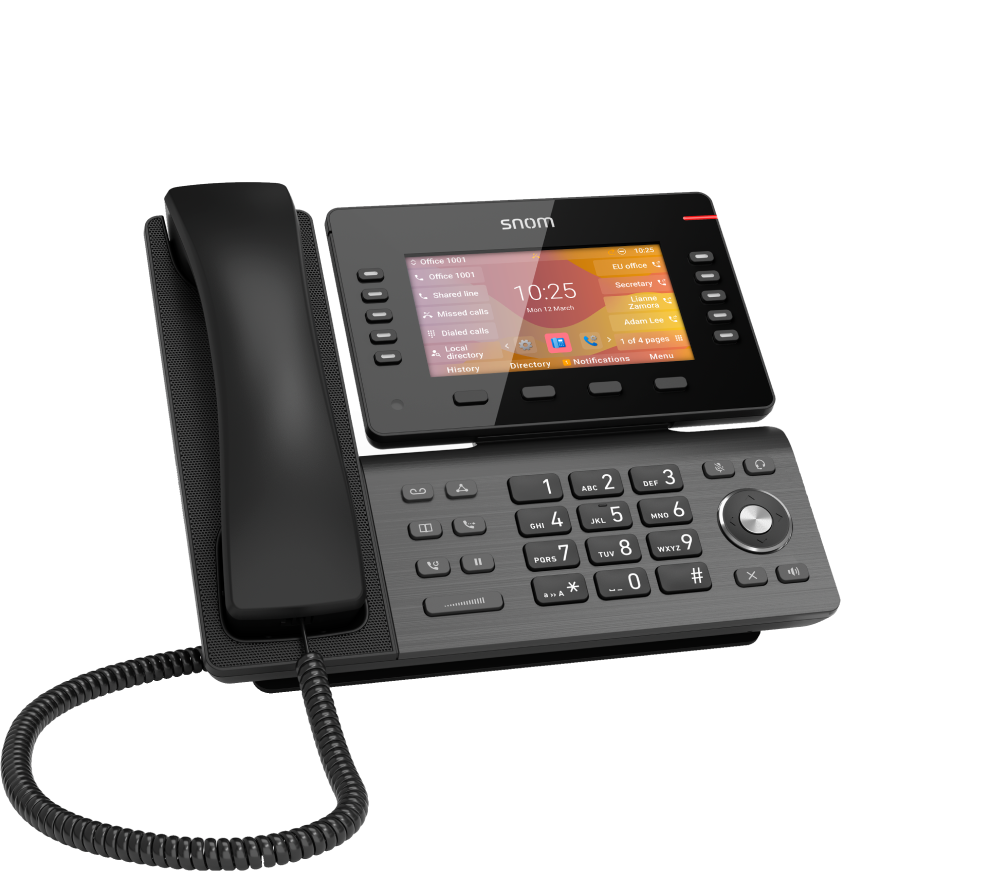

Snom D865

The Snom D865 is particularly versatile and offers the right solution for most tasks in everyday office life. Equipped with WiFi, Bluetooth and 2 USB ports as well as 10 freely programmable function keys, the Snom D865 fulfils every wish.

Other available facets are like:

  • Snom D865Large tiltable 5 inch IPS colour display
  • 2x USB 2.0 high speed connection
  • 10 programmable function keys
  • Dual-band Wi-Fi and integrated BT 5.0

Apart from these, you can find manifold other smarter features and we at Cohesive Technologies give you the best options.



SKU: 102010 Category:

Description

Basics

Product information

  • IP desk phone
  • Colour: gunmetal black
  • Operating system: Linux

Placement

  • indoor, desktop, wall mounting1

Dimensions and weight

Dimensions (L × W × H, approx.)

  • 210 mm × 243 mm × 45 mm without footstand
  • 193 mm × 243 mm × 165 mm with footstand

Weight (approx.)

  • 1.12 kg with footstand



Display and indicators

Display

  • TFT liquid crystal display (LCD): tiltable, IPS panel, backlit
  • Size (diagonal): 5.0″ (127 mm)
  • Size (W × H): 110 mm × 62 mm
  • Resolution: 1,280 × 720 pixels

15 LED indicators

  • Call status indication: 1 red LED
  • Message waiting indication (MWI): 1 red LED
  • Function key status indication: 10 multicolour LEDs
  • Audio key status indication: 3 LEDs (1 red / 2 green)

Keypad and function keys

43 hard keys in total

  • 12 keys (standard ITU telephone keypad)
  • 5-way navigation key
  • 4 context-sensitive function keys
  • Programmable function keys
    • 10 SmartLabel keys (with multicolour LED)
    • Key mapping of up to 40 functions (10 keys × 4 pages)
  • 5 dedicated audio keys
    • Mute (with red LED)
    • Speakerphone (with green LED)
    • Headset (with green LED)
    • Volume + / – (rocker)
  • 7 dedicated function keys
    • Cancel
    • Message (with red LED)
    • Directory
    • Transfer
    • Hold
    • Conference
    • Redial

Keyboard lock

Audio devices, codecs and features

Casing microphone|Casing speaker

  • 2 dedicated microphones
  • Frequency range: 100 Hz – 8.0 kHz
  • Speakerphone mode: Full duplex, HD audio

Corded handset: Microphone|Handset earpiece

  • Noise cancellation, HD audio
  • Frequency range: 150 Hz – 8.0 kHz
  • Hearing aid compatible (HAC)

Audio codecs

  • G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729, Opus

Dual-tone multi-frequency signalling (DTMF / RFC2833):

  • SIP-INFO, in-band, out-of-band

Related features

  • Comfort Noise Generator (CNG)
  • Voice Activity Detection (VAD)
  • Audio response time
  • Adaptive jitter buffer
  • Packet loss concealment (PLC)

Interfaces and connections

Power options

  • Power over Ethernet (PoE)
    • IEEE 802.3af, class 3|IEEE 802.3az3
  • Power adapter1
    • 100 – 240 V AC, 50 – 60 Hz | 5 V DC (SELV), 2 A, 10 W

Wired interfaces

  • Power adapter: coaxial power connector (socket)
  • Gigabit Ethernet (GbE) 2 × RJ45-8P8C sockets
  • USB connectivity: 2 × USB 2.0 type A ports
  • Corded handset: RJ9-4P4C socket
  • Headset: RJ9-4P4C socket
  • EHS adapter:1 RJ12-6P6C socket

Wireless interfaces

  • Third party headset support: Bluetooth
  • Network connectivity: Wireless LAN

Sensors

  • Ambient light sensor
  • Hook switch sensor

User interfaces and setup

Power options

  • Power over Ethernet (PoE)
    • IEEE 802.3af, class 3|IEEE 802.3az3
  • Power adapter1
    • 100 – 240 V AC, 50 – 60 Hz | 5 V DC (SELV), 2 A, 10 W

Wired interfaces

  • Power adapter: coaxial power connector (socket)
  • Gigabit Ethernet (GbE) 2 × RJ45-8P8C sockets
  • USB connectivity: 2 × USB 2.0 type A ports
  • Corded handset: RJ9-4P4C socket
  • Headset: RJ9-4P4C socket
  • EHS adapter:1 RJ12-6P6C socket

Wireless interfaces

  • Third party headset support: Bluetooth
  • Network connectivity: Wireless LAN

Sensors

  • Ambient light sensor
  • Hook switch sensor

User interfaces and setup

Configuration and setup via menu-driven web user interface (WUI)

  • Visual and functional UX based re-design (phone manager)
  • Password-protected login
  • Secure web server/client (HTTPS)

Configuration and setup via menu-driven phone user interface (PUI)

Automatic configuration via provisioning

Localization

Diagnostic

  • SIP / PCAP trace
  • Syslog

Related features

  • Local call recording via USB
  • Dual firmware partition

Networking technologies and protocols

Wireless LAN

  • Frequency band (2G): 2,400.0 – 2,483.5 MHz
    • IEEE 802.11b (Wi-Fi 2): up to 11 Mbps
    • IEEE 802.11g (Wi-Fi 3): up to 54 Mbps
    • IEEE 802.11n (Wi-Fi 4): up to 150 Mbps
  • Frequency band (5G): EU: 5,150 – 5,350 MHz, 5,470 – 5,725 MHz|Americas: 5,150 – 5,350 MHz, 5,470 – 5,825 MHz
    • IEEE 802.11a (Wi-Fi 1): up to 54 Mbps
    • IEEE 802.11n (Wi-Fi 4) up to 150 Mbps
    • IEEE 802.11ac (Wi-Fi 5) up to 433 Mbps

Network technologies

VoIP related protocols and techniques

Secure VoIP protocols

Network protocols

Secure network protocols

Remote management protocols

  • TR-069, TR-069 Annex G (formerly TR-111), TR-369 (USP)

Directory support and call features

12 SIP identities / accounts

  • Up to 12 simultaneous calls

Directory support

Outgoing call features

Incoming call features

Connected call features

Related features

Package contents

Hardware

  • IP desk phone D865
  • Corded handset
  • Footstand
  • Ethernet cable: 1.5 m

Documentation

Environmental conditions

Operating ambient temperature: 0 °C – +35 °C

Nonoperating (storage) temperature: -10 °C – +45 °C

Snom accessories and compatible devices

Power adapter

Wall mount kit

  • D8xx WM (PN 00004544)

Corded wideband receiver

  • D8xx WB handset (PN 00004561)

EHS adapter

Wired headset via RJ9

Wired headset via USB

DECT headset via RJ9

Wireless conference speakerphone (USB)

Additional information

Series

Snom D8xx Series
Brand

Snom
Color

Black
Connection type

Corded
