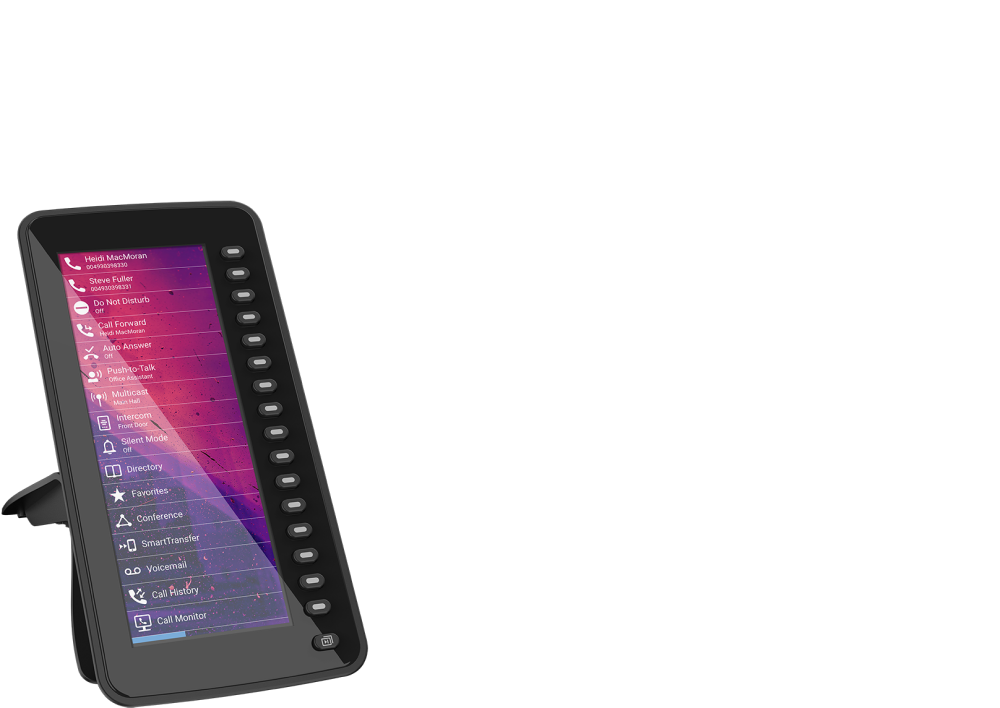

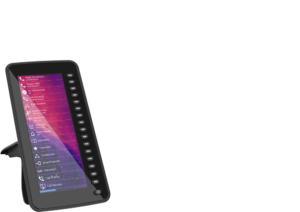

Snom D7C

Expansion module

Taking and making calls all day? The D7C Color Expansion Module is designed for the users who rely on their speed dials and busy lamp fields to get themselves through the day. Scroll through 3 pages of activity to view 16 programmable LED line keys per page to quickly locate the contact you need. Have a lot of friends in your directory? Daisy chain up to 3 D7C Expansion Modules for 144 programmable LED keys.

Quick summary

  • High-resolution color display (6.8”)
  • 16 (48) highly programmable multicolor LED function keys
  • Fully configurable via host phone
  • Revised user interface
  • Theme and icon support
  • Custom background image support
  • Daisy chain up to 3 modules
  • Power supplied by phone via USB port
  • Dual-angle foot stand: 46° and 28°
  • Plug and play

Category:

Description

General Information

  • Dimensions in millimeters (approx.):
    • 158 x 140 x 40 (LxWxD) w/o foot stand
    • 158 x 140 x 200/220 mm (LxWxD) with foot stand
  • Weight (approx.): device 400g, footstand 120g
  • Input voltage: 5Vdc (SELV)
  • Power supply: USB or 5Vdc power adapter, 10 Watts
  • USB 2.0 cable with angled type A plug
  • USB 2.0 port, type A
  • Environmental conditions:
    • Ambient temperature: 0°C to 35°C (32°F to 95°F)
    • Non-operation: -10°C to 45°C (14°F to 113°F)
    • Humidity: 5% to 95% (non-condensing)
  • Included in delivery:
    • Base unit
    • Foot stand
    • Quick Start Guide
  • Color: White or black
  • Warranty: 3 Years
  • Part Number:
    • 00003924 (gray – all markets)
    • 00004011 (black – all markets)

Benefits

  • High-resolution graphical display with backlight
  • 18 freely programmable multicolor LED function keys
  • Dual-angle footstand: 46° and 28°
  • Daisy chainable
  • Fully configurable via host phone
  • Powered by host phone

Installation

  • Plug and Play
  • Completely configurable via host phone

Additional information

Color

Black
Brand

Snom
Connection type

Corded
Series

Snom D7xx Series
