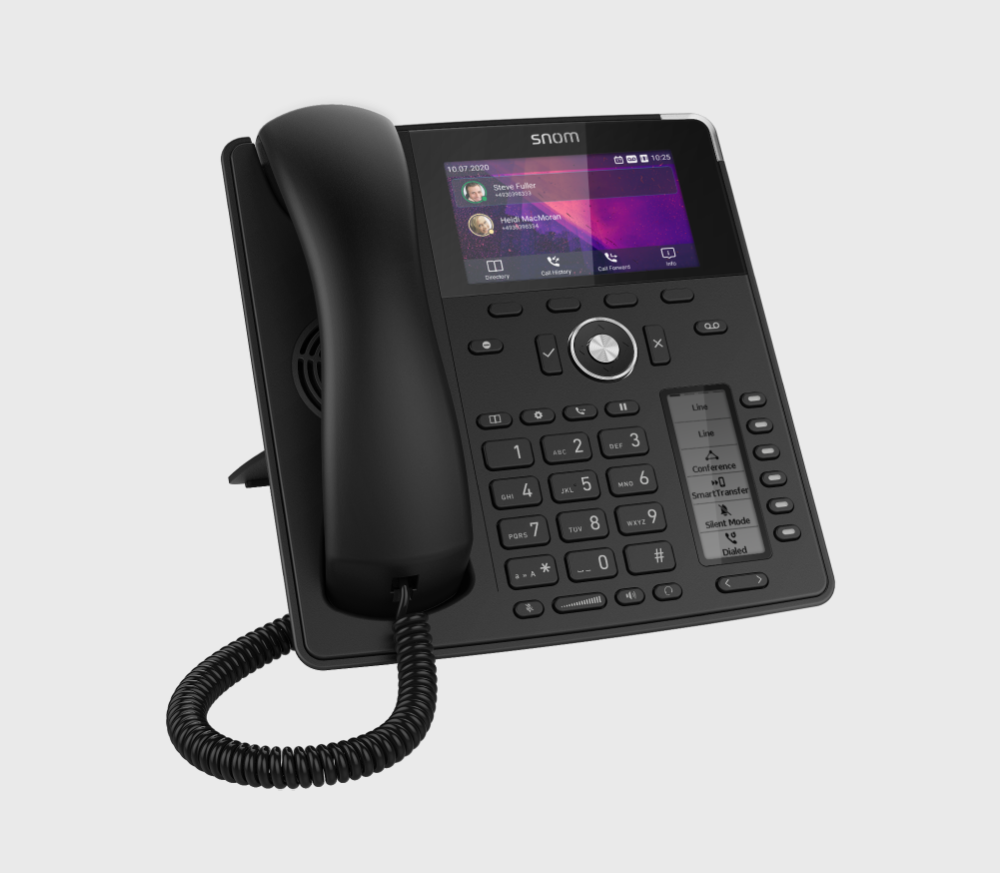

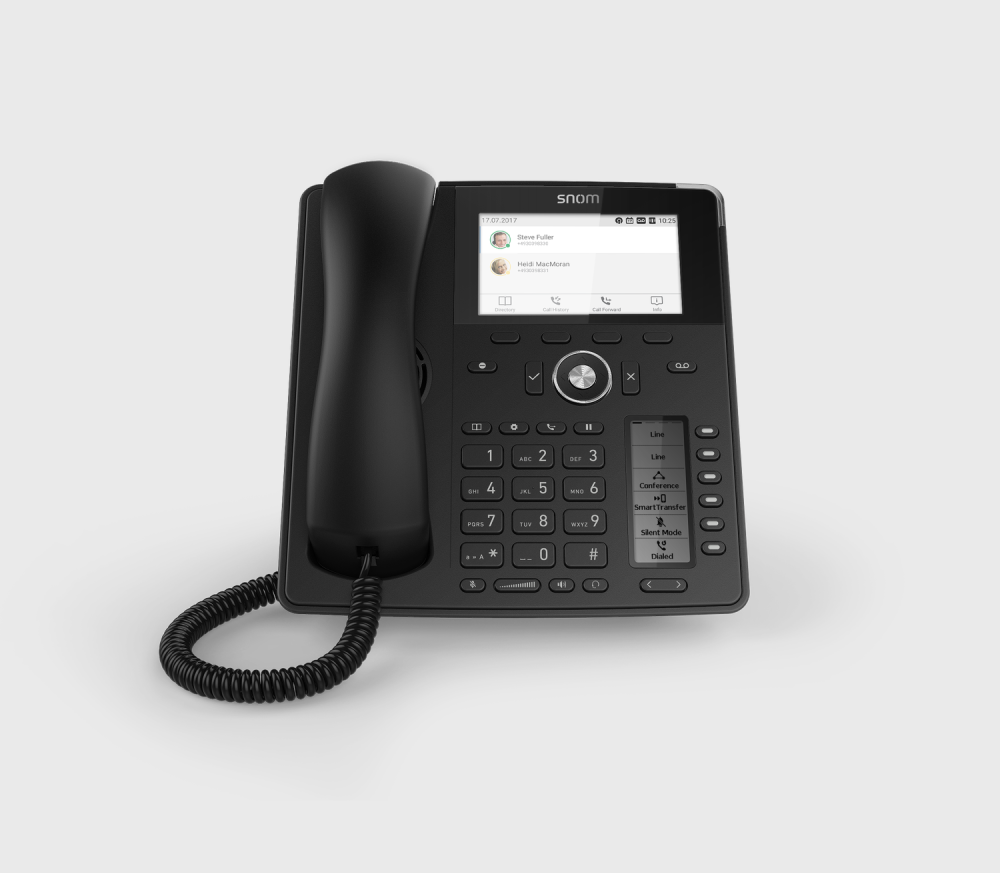

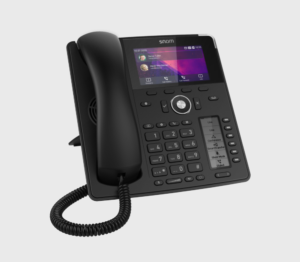

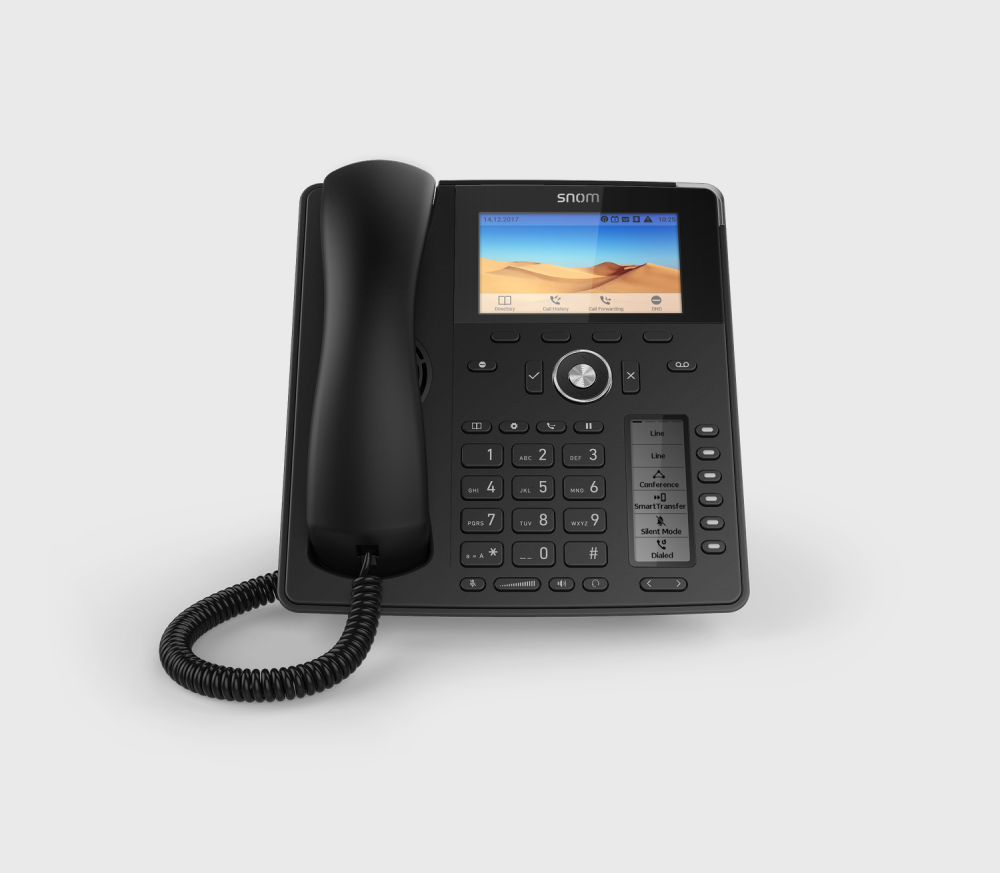

Snom D785 / D785N

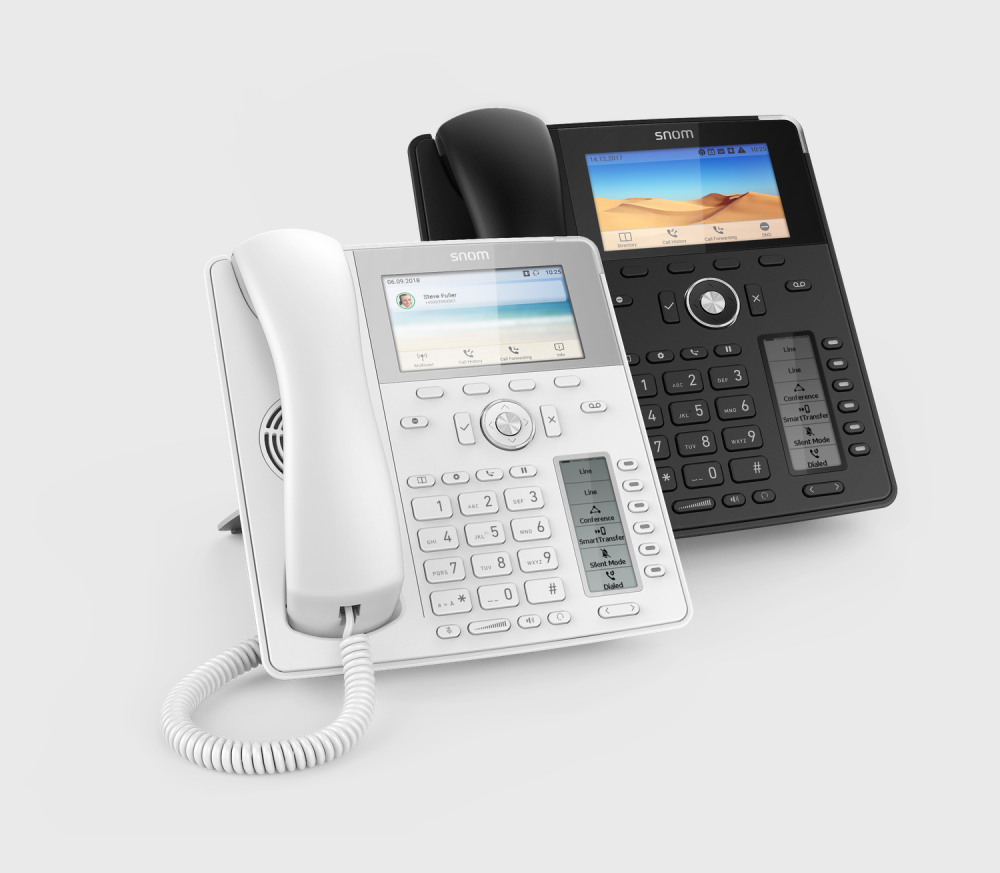

The Snom D785 is part of Snom’s latest and most technically advanced phone series. With the elegant design available in black and white, the large high-resolution colour display, as well as the practical second display for a dynamic configuration of the 24 function keys (6 physical), this telephone offers all the functions for every working day. Thanks to the integrated digital signal processor (DSP), the Snom D785/D785N offers the HD audio quality common to all Snom phones.

  • Other available facets are like:
  • High-resolution 4.3 Zoll TFT colour display
  • 24 freely programmable function keys / BLF keys (6 physical) in the second display
  • Integrated Bluetooth (except D785N)
  • USB headset compatible

Apart from these, you can find manifold other smarter features and we at Cohesive Technologies give you the best options.



Category:

Description

Product information

  • IP desk phone D785/D785N
  • Operating system: Linux

Placement: indoor, desktop, wall mounting

Dimensions and weight

Dimensions (L × W × H, approx.) without footstand

  • 220 mm × 205 mm × 35 mm

Dimensions (H x W x D, approx.) with footstand

  • 220 mm × 205 mm × 190 mm (high angle 46°)
  • 210 mm × 205 mm × 150 mm (low angle 28°)

Weight (approx.):

  • 990 g with footstand
  • 750 g without footstand

Display and indicators

Display

  • TFT liquid crystal display (LCD): true colour, backlit
  • Size (diagonal): 4.3″ (109 mm)
  • Size (W × H): 95 mm × 54 mm
  • Resolution: 480 × 272 pixel

SmartDisplay

  • TFT liquid crystal display (LCD): monochrome, graphical
  • Size (diagonal): 2.8″ (70 mm)
  • Size (W × H): 66 mm × 23 mm
  • Resolution: 254 × 100 pixel

11 LED indicators

  • Call status indication: 1 red LED
  • Message waiting indication (MWI): 1 red LED
  • Function key status indication: 6 multicolour LEDs
  • Audio key status indication: 3 LEDs (1 red / 2 green)

Keypad and function keys

42 hard keys in total

  • 12 keys (standard ITU telephone keypad)
  • 5-way navigation key
  • 4 context-sensitive function keys
  • Programmable function keys
    • 6 SmartLabel keys (with multicolour LED)
    • Key mapping of up to 24 functions (6 keys × 4 pages)
  • 5 dedicated audio keys
    • Mute (with red LED)
    • Speakerphone (with green LED)
    • Headset (with green LED)
    • Volume + / – (rocker)
  • 10 dedicated function keys
    • Ok
    • Cancel
    • DND
    • Message (with red LED)
    • Directory
    • Menu
    • Transfer
    • Hold
    • Page (rocker)

Expansion module connection via USB port for up to 3 × D7 / D7C2

Keyboard lock

Audio devices, codecs and features

Casing microphone|Casing speaker

  • Speakerphone mode: Full duplex, HD audio

Corded handset

  • Microphone|Handset earpiece
  • Hearing aid compatible (HAC)

Audio codecs

  • G.711 (A-law, μ-law), G.722, G.726, G.729, GSM 6.10 (FR), Opus

Dual-tone multi-frequency signalling (DTMF / RFC2833)

  • SIP-INFO, in-band, out-of-band

Related features

  • Built-in assignable ringtones
  • Comfort Noise Generator (CNG)
  • Voice Activity Detection (VAD)

Interfaces and connections

Power options

  • Power over Ethernet (PoE)
    • IEEE 802.3af, class 2/34
  • Power adapter2
    • 100 – 240 V AC, 50 – 60 Hz | 5 V DC (SELV), 2 A, 10 W

Wired interfaces

  • Power adapter: coaxial power connector (socket)
  • Network connectivity: 2 × RJ45-8P8C sockets (PC/NET) → Gigabit Ethernet (GbE)
  • USB headsets and other accessories: USB 2.0 type A port
  • Corded handset: RJ9-4P4C socket
  • Headset: RJ9-4P4C socket
  • EHS adapter:2 RJ12-6P6C socket

Wireless interfaces

Sensors

  • Hook switch sensor

Networking technologies and protocols

Bluetooth: 4.0+EDR, class 21

Network technologies

VoIP related protocols and techniques

Secure VoIP protocols

Network protocols

Secure network protocols

Remote management protocols

  • TR-069, TR-069 Annex G (formerly TR-111)

Directory support and call features

12 SIP identities / accounts

  • Up to 12 simultaneous calls

Directory support

Outgoing call features

Incoming call features

Connected call features

Related features

  • Call history lists of missed, received, dialed, rejected, and deflected calls

Interoperability

Certified VoIP partner

Environmental conditions

Operating ambient temperature: 0 °C – +35 °C

Nonoperating (storage) temperature: -10 °C – +45 °C

Humidity (non-condensing): 5 % – 95 %

Package contents

Hardware

  • IP desk phone D785 / D785N
  • Footstand
  • Corded handset
  • Ethernet cable

Documentation

Snom accessories and compatible devices

Power adapter

USB dongle

EHS adapter

Wired headset via RJ9

Wired headset via USB

DECT headset via RJ9

DECT headset via USB (DECT)

Expansion module

Wireless conference speakerphone (Bluetooth, USB)1

Additional information

Color

Black
Brand

Snom
Connection type

Corded
Series

Snom D7xx Series
