Basic

• Operating system Linux
• Wall mountable
• Product numbers

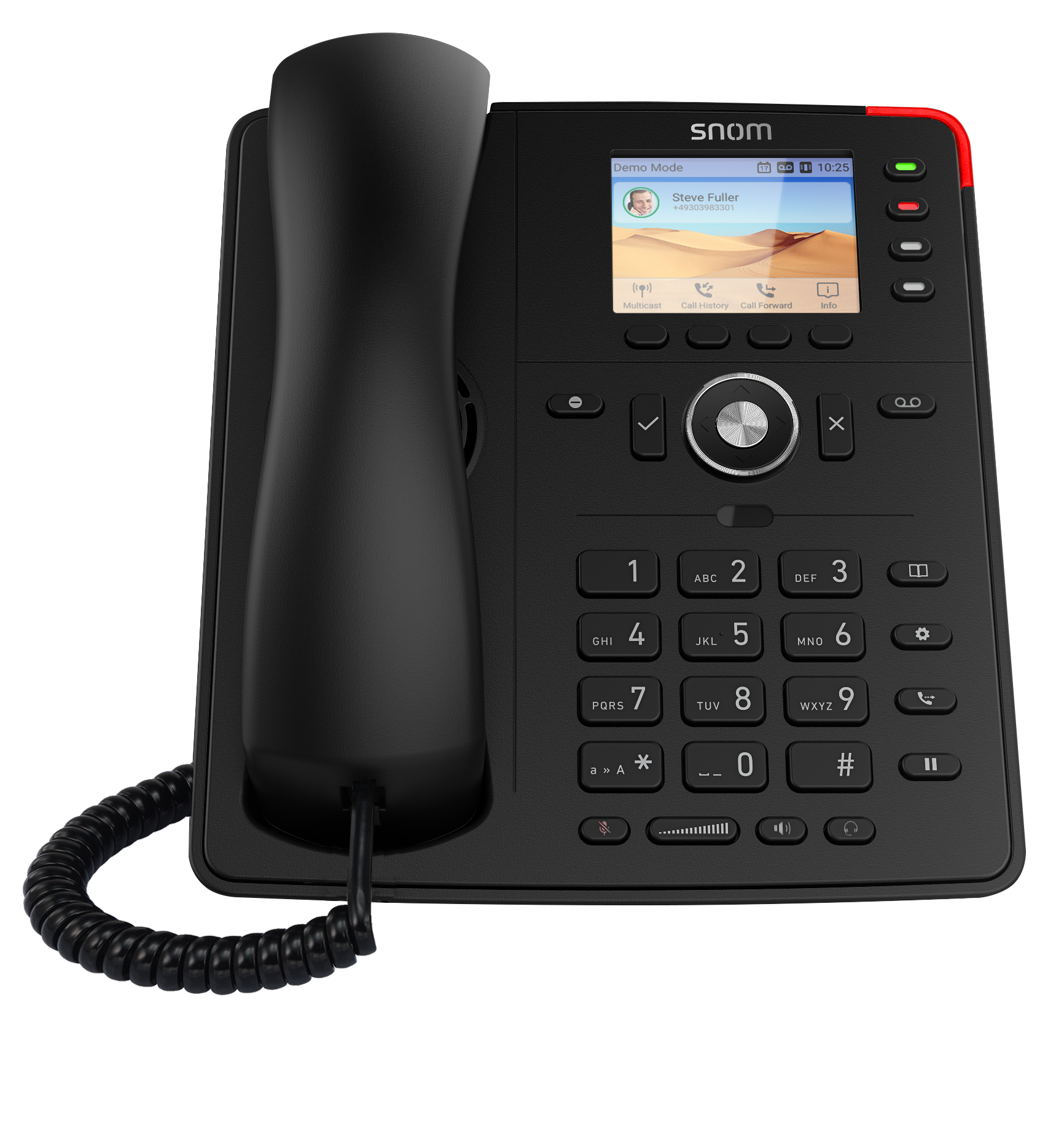

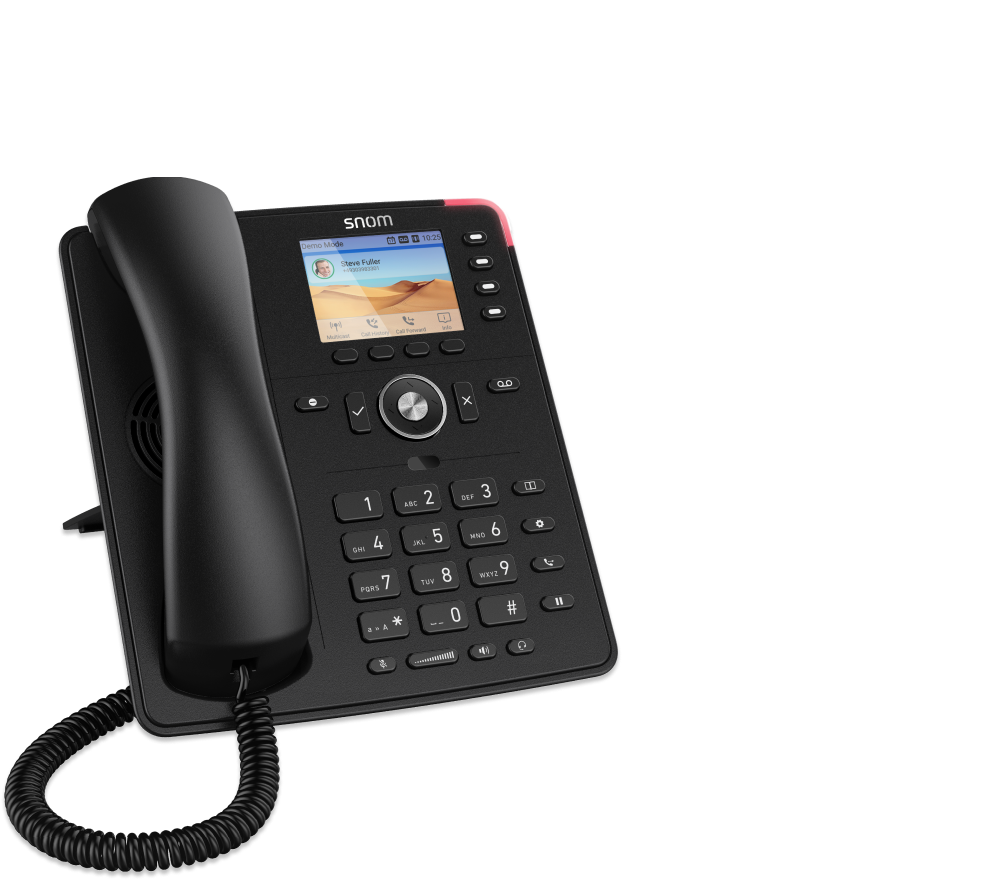

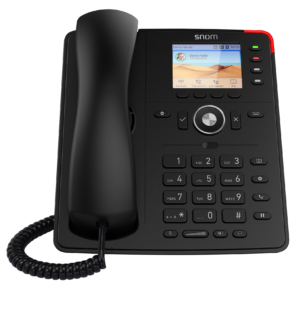

  • ​​​​D713 | black | PN 00004582

Dimensions and weigh

• Dimensions (L x W x H, approx.)
  • 205 mm x 185 mm x 40 mm w/o footstand
  • 205 mm x 185 mm x 220 mm at high angle
  • 205 mm x 185 mm x 200 mm at low angle
• Weight (approx.)
  • 830 g with footstand
  • 710 g w/o footstand
• Inclination
  • High angle 46°
  • Low angle 28°

Keypad and function keys

• 38 hard keys in total
• Standard ITU telephone keypad: 12 keys with star and pound/hash key
• 5-way navigation key
• 4 context-sensitive function keys
• Programmable line / function keys
  • 4 self-labelling keys with multicolour LED
• 5 dedicated audio keys
  • Mute, Speakerphone, Headset, Volume + / – (rocker)
• 8 dedicated function keys
  • OK, Abbrechen, DND, Nachricht, Telefonbuch, Menü, Transfer, Halten
• Related features
  • Keyboard lock

Display and indicators

• Display
  • TFT liquid crystal display (LCD), highcolour, backlit, graphic
  • 2.8″ (67 mm) display size (diagonal)
  • Resolution 320 x 240 pixel
• · 5 LED indicators
  • 1 red LED for call status indication
  • 4 multicolour LEDs for function key indication

Audio devices, codecs and feature

• Corded receiver
  • Hearing aid compatible (HAC)
• Audio codecs
  • G.711 (A-law, μ-law), G.722, G.726, G.729, GSM 6.10 (FR)
• Dual-tone multi-frequency signalling (DTMF)
  • in-band, out-of-band, SIP-INFO
• Related features
  • Integrierte Klingeltöne
  • Komfortrauschen (CNG)
  • Sprechpausenerkennung (VAD)

Interfaces and connection

• D713 power options
  • Power over Ethernet (PoE), IEEE 802.3af, class 2
  • Power adapter: 100 – 240 V AC / 50 – 60 Hz | 5 V DC (SELV) / 2 A / 10 W1
• Wired interfaces
  • 1 coaxial power adapter connector
  • 2 RJ45-8P8C Gigabit Ethernet ports
  • 1 RJ9-4P4C standard connector for corded receiver
  • 1 RJ9-4P4C standard connector for wired headsets
  • 1 RJ12-6P6C EXT connector for Snom EHS adapter1

User interfaces and setup

• Configuration and setup via menu-driven web user interface (WUI)
  • Password-protected login
  • Secure web server/client (HTTPS)
  • Languages
• Configuration and setup via menu-driven phone user interface (PUI)
  • Languages
• Automatic configuration via provisioning
  • Loading of settings and firmware via HTTP / HTTPS / TFTP
  • Supported DHCP provisioning options 66/67
  • Secure Redirection And Provisioning Service (SRAPS) support
  • Remote management via TR-069 / TR-069 Annex G (formerly TR-111)
  • Plug & Play (PnP) support
• Localization
  • Timezone
  • Dial tone
• Related features
  • XML browser

Technologies and protocols

• Network technologies
  • OpenVPN, VLAN (IEEE 802.1Q)
• VoIP related protocols and techniques
  • SIP (RFC 3261), SDP (RFC 3261)  RTP (RFC 8866), RTCP-XR, SIP REFER method (RFC,RTCP (RFC 3550) 3515), rport (RFC 3581), ENUM, ICE, STUN (RFC 5389)
• Secure VoIP protocols
  • SIPS (SIP over TLS), SRTP (RFC 3711)  SRTCP
• Network protocols
  • IPv4 / IPv6 (Dual Stack), DHCP, NTP, LDAP  LLDP-, MED, HTTP, TFTP  L2TP
• Secure network protocols
  • TLS V1.2, HTTPS, IEEE 802.1X (EAPoL)
• Remote management protocols
  • TR-069, TR-069 Annex G (formerly TR-111)

Directory support and call features

• 6 SIP identities / accounts
  • Up to 6 simultaneous calls2
• Directory support
  • LDAP (server-based directory)
  • Local directory with up to 1,000 entries
• Outgoing call features
  • Speed dialling via function keys
  • URL dialling
  • Local dial plan
  • Redial (via dialed calls list)
  • Automatic redial on busy
  • Caller identification (CLIP)
  • Calling Line Identification Restriction (CLIR)
  • Call completion (busy/unreachable)2
  • Intercom
  • Multicast paging
• Incoming call features
  • Call waiting/swapping
  • Call barring/blocking: via deny list, Anonymous calls
  • Auto answer
  • Call diversion
  • Do Not Disturb (DND) mode
• Connected call features
  • Mute microphone
  • Hold
  • Music on hold2
  • Blind call transfer
  • Attended call transfer
  • 3-way local conferencing
  • Call park / unpark2
  • Client Matter Code (CMC)2
• Related features
  • Call history lists of missed, received, dialed, rejected, and deflected calls
  • Extension monitoring, call pickup2

Interoperability

• Certified VoIP partner

Environmental conditions

• Operating ambient temperature
  • 0 °C to 35 °C (32 °F to 95 °F)
• Nonoperating temperature
  • – 10 °C to 45 °C (14 °F to 113 °F)
• Humidity (non-condensing): 5 % – 95 %

Type approval and standards conformance

• Information technology equipment – Safety 60950
• CE marking
• WEEE 2012/19/EU

Package contents

• Desk phone unit
• Footstand
• Corded receiver
• 1.5 m (5 ft) Ethernet cable
• Quick Installation Guide (QIG)
• GNU General Public License

Accessories

• •  00004570 | 10 W Power adapter
  • 00004341 | A100M | Monaural headset
  • 00004342 | A100D | Binaural headset

1 Available separately
2 If supported by PBX
