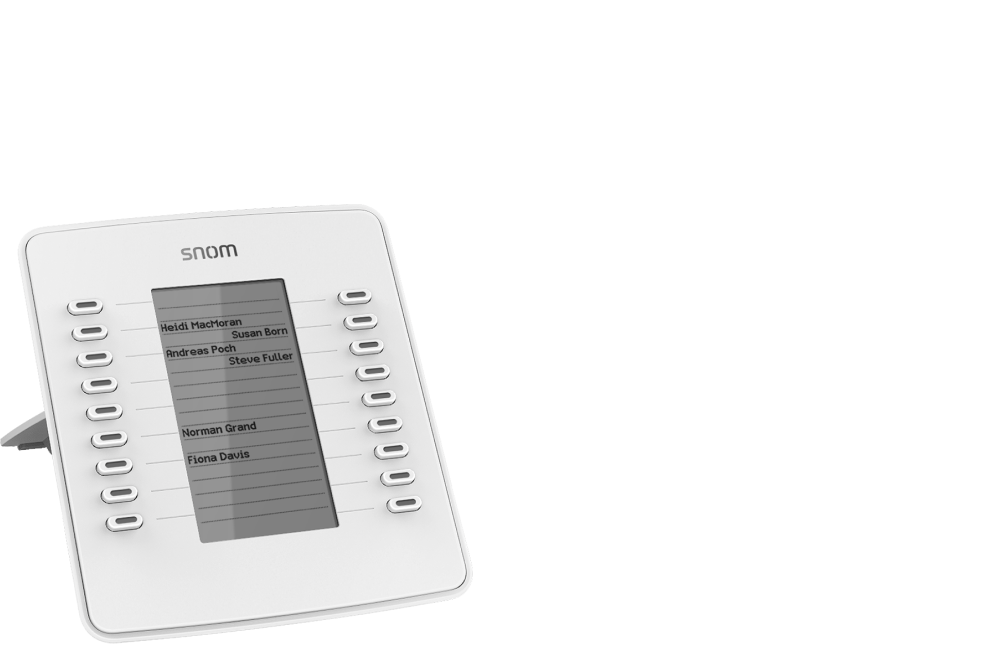

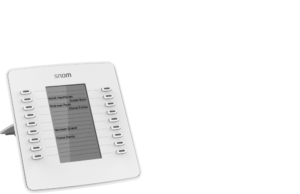

Snom D7 (W)

Expansion module

An expansion module provides users who experience high call coverage with greater flexibility and increased productivity. The D7 expansion module enhances the 700 series by adding 18 programmable keys with LEDs to deliver features such as speed dial, busy lamp field and presence indication.

Quick summary

  • Supports all 700 series telephones with USB ports
  • High-resolution graphical display with backlight
  • 18 freely programmable multicolor LED function keys
  • Dual-angle foot stand: 46° and 28°
  • Fully configurable via host phone
  • 18 highly configurable self-labelling LED keys
  • High-resolution black & white display with backlight
  • Daisy chain up to 3 modules
  • Plug and play
  • Power supplied by phone via USB port for first D7 module

Category:

Description

General Information

  • Dimensions in millimeters (approx.):
    • 158 x 140 x 40 (LxWxD) w/o foot stand
    • 158 x 140 x 200/220 mm (LxWxD) with foot stand
  • Weight (approx.): device 400g, footstand 120g
  • Input voltage: 5Vdc (SELV)
  • Power supply: USB or 5Vdc power adapter, 10 Watts
  • USB 2.0 cable with angled type A plug
  • USB 2.0 port, type A
  • Environmental conditions:
    • Ambient temperature: 0°C to 35°C (32°F to 95°F)
    • Non-operation: -10°C to 45°C (14°F to 113°F)
    • Humidity: 5% to 95% (non-condensing)
  • Included in delivery:
    • Base unit
    • Foot stand
    • Quick Start Guide
  • Color: White or black
  • Warranty: 3 Years
  • Part Number:
    • 00003924 (gray – all markets)
    • 00004011 (black – all markets)

Benefits

  • High-resolution graphical display with backlight
  • 18 freely programmable multicolor LED function keys
  • Dual-angle footstand: 46° and 28°
  • Daisy chainable
  • Fully configurable via host phone
  • Powered by host phone

Installation

  • Plug and Play
  • Completely configurable via host phone

Additional information

Color

White
Brand

Snom
Connection type

Corded
Series

Snom D7xx Series
