Benefits

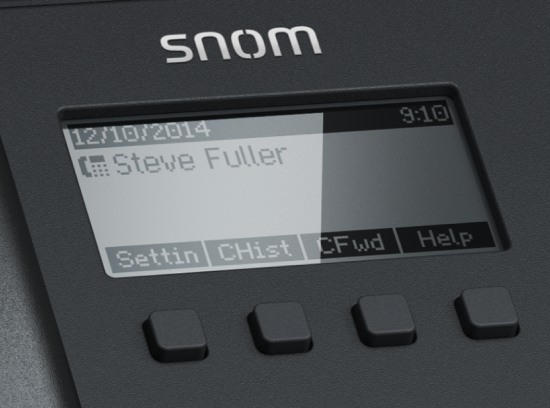

• Graphical Display 132 x 64 pixels with backlight
• Single position footstand 35°
• Wall mountable (1)
• Hands-free talking (Speakerphone)
• Digital Signal Processor (DSP) enhanced audio quality
• 2-port 10/100 Mbps Ethernet switch (RJ45)
• Power over Ethernet IEEE 802.3af, Class 1
• SHA-2 based secure provisioning

Firmware

Features

• 2 SIP identities / accounts
• XML Browser
• Call lists for dialed, received, missed calls
• Directory with 250 entries
• Languages: English, French, Spanish
• Additional language support via provisioning
• In-band DTMF / out-of-band DTMF / SIP INFO DTMF
• Interoperable with all major IP-PBX platforms

Call features

• Speed dialing
• URL dialing
• Local dial plan
• Automatic Redial on busy
• Call completion (busy/unreachable)(2)
• Caller identification
• Call waiting
• Call blocking (deny list)
• Blocking of anonymous calls (2)
• Auto answer
• Lists of missed, received and dialed calls
• Hold
• Music on hold (2)
• Handling of up to 2 simultaneous calls
• Blind and attended transfer
• Call forwarding
• 3-way conference on the phone
• Call pickup
• Call park, call unpark (2)
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock

Audio

• Codecs
  • G.711 A-law, μ-law
  • G.722 (wideband)
  • G.726, G.729, GSM 6.10 (FR)
• 10 built-in assignable ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)

Set-up

• Configurable through web interface
• Provisioning
  • DHCP Options 66/67
  • Plug & Play (PnP)
  • Snom redirection Service
  • Remote management via TR-069

Specifications

Protocols

• SIP (RF3261)
• DHCP, NTP
• HTTP/HTTPS/TFTP
• LDAP (Directory)
• Dual Stack IPv4/IPv6

User Interface

• Number of keys: 32
• Line keys with LED: 2
• Dedicated keys: DND, Directory, Transfer, Hold, Message

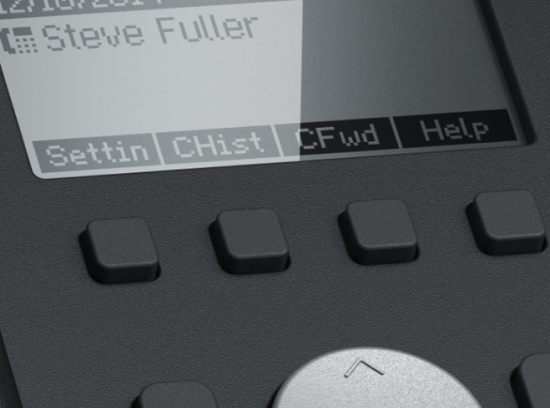

• Context-sensitive function keys: 4
• Navigation keys: 2 (up/down)
• Audio keys: Mute, Speakerphone, Volume control
• Redial via call lists (OK key)

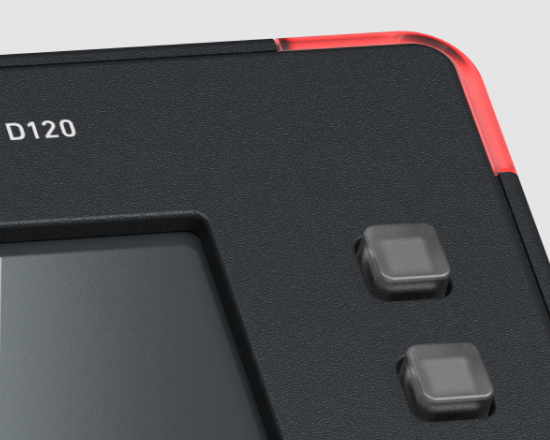

• High-visibility red LED for call indication / message waiting (2)
• Menu-driven interface
• Localization (Language, time, dial tone)

Security

• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPS, SRTCP
• VLAN
• IEEE 802.1X
• LLDP-MED
• Web interface password protection

Phone Features

• Dimensions: 205 x 161 x 32 mm (W/o foot stand)
• Dimensions: 205 x 161 x 120 mm (with foot stand)
• Input voltage: 5V DC (SELV)
• Handset: RJ-4P4C
• Headset: RJ-4P4C
• Hearing aid compatible (HAC) handset
• Power: PoE or 5V DC power adapter (1)
• Environmental Conditions:
  • Ambient temperature: 0° to 35° C(32° to 95° F)
  • Non-operating temperature: -10°C to 45°C
  • Relative humidity: 5% to 95% noncondensing
• Included in delivery
  • Base phone unit
  • Foot stand
  • Handset with cord
  • Ethernet cable
  • Quick Installation Guide
• Color: Black
• Warranty: 3 years
• Part Number: 00004361 for all markets
• APN: 80-S017-00

(1) Optional accessory
(2) If supported by PBX

APN numbers for optional accessories

26-350200-3UL    Power Adapter Snom A6 / US clip
89-S020-00    A100D Binaural headset
89-S019-00    A100M Mono headset
