Description
Specifications, Weights and Dimensions
- APN: 80-S088-00
- Color: GM (Gun Metal)
- UPC: 811819012661
- Product dimensions (WxDxH):

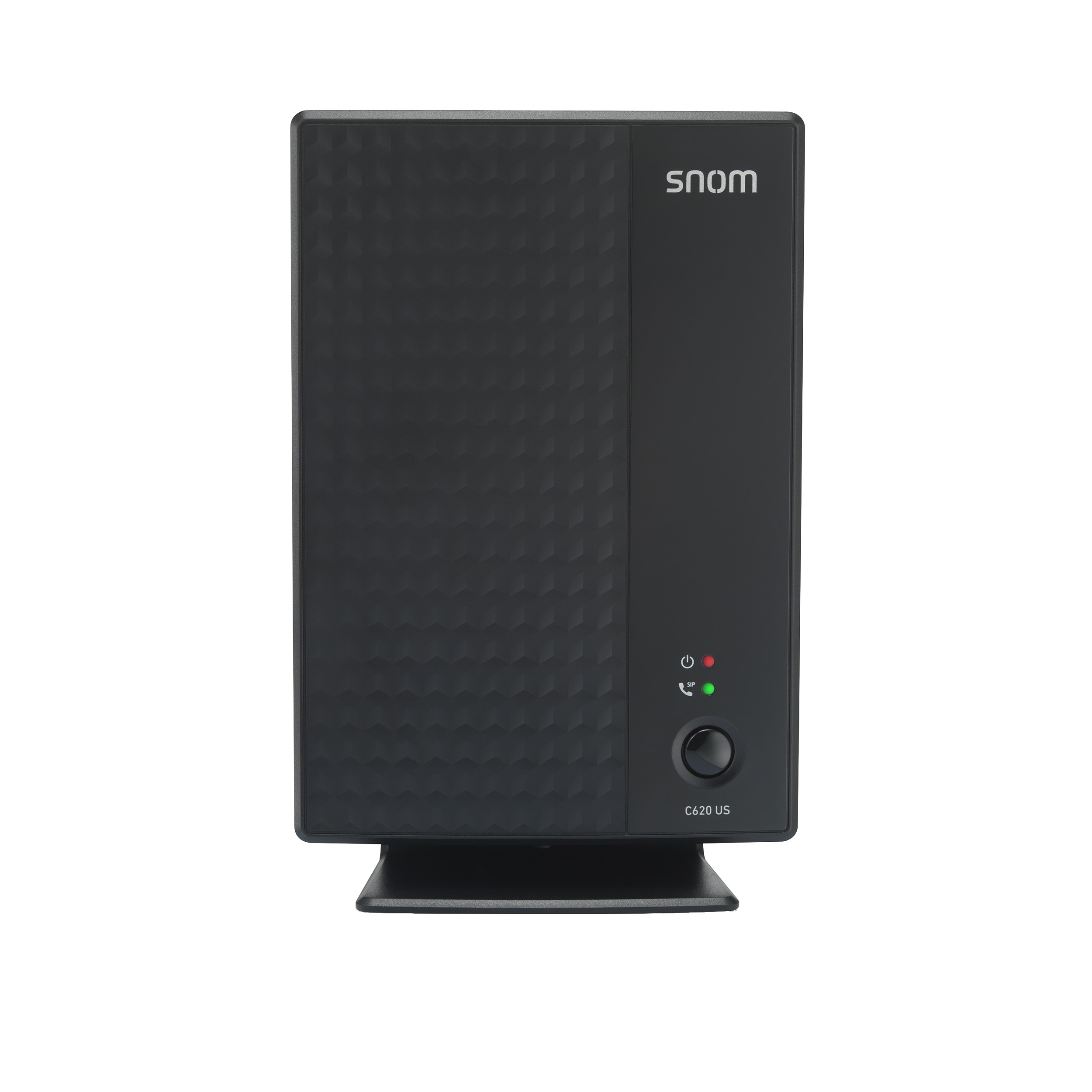

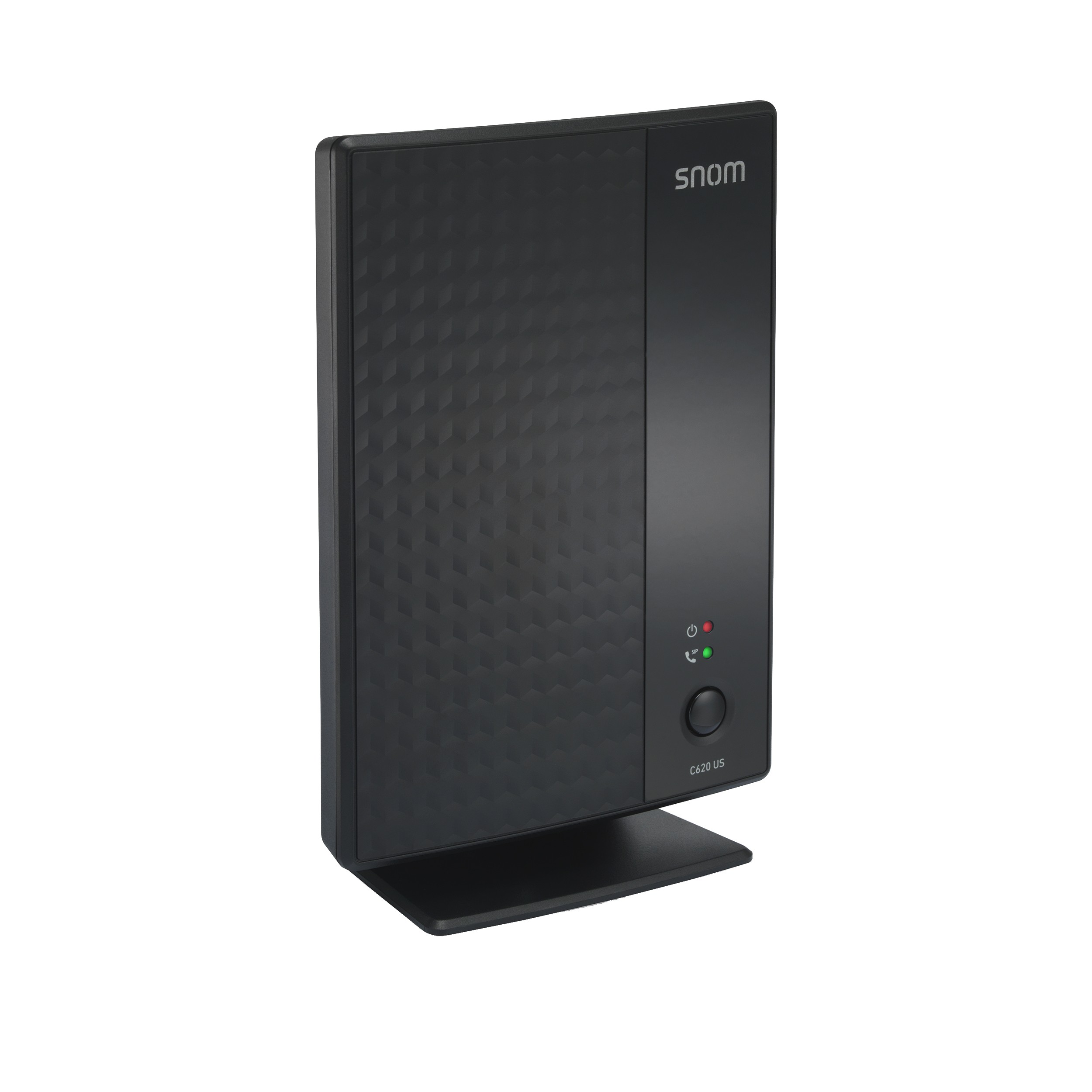

- Base Station: 4.59″ x 2.27″ x 7.09″
- Charger: 6.95″x 3.19″ x 1.36″
- Speakerphone: 11.10″ x 10.59″ x 2.36″
- Wi-Mic: 1.82″ x 2.99″x 0.99″
- Product weight: 4.48 lbs
- Giftbox dimensions (WxDxH): 12.36″ x 15.55″ x 6.1″
- Giftbox weight: 6.4 lbs
- Master pack dimensions (WxDxH): 12.91″ x 12.91″ x 16.54″
- Master pack weight: 13 lbs
- Quantity: 2
Interface
- DECT 6.0 RF module embedded
- DECT 6.0 (5 maximum registers): 1 wireless conference phone, 2 wireless mics and 2 C52-SP expansion speakerphones
- Ethernet port: 10/100MB
- Base power: Class 3 Power over Ethernet (PoE) or included AC adapter
- Phone power: charging dock with included AC adapter
Physical Features
- 158 x 57 pixels (w x h) LCD resolution with backlight (white)
- 3 soft keys with 4-way navigational pad
- DECT 6.0 wireless microphones
- Built-in wireless microphone charging bays in base
- Includes two wireless microphones and one fixed microphones
- Active call indicator; green LED on base unit and wireless microphones
- Mute indicator; red LED on base unit and wireless microphones
- Wireless microphone battery-low indicator; flashing LED
- Wireless microphone auto power off; when base powered off
- Operable in small, medium and large rooms
Audio/Voice
- Full-duplex speakerphone in base
- Codecs: G.722, G.711 (A-law & μ-law), G.729ab, G.726
- Fast adaptive feedback control
- Acoustic echo cancellation technology
- Comfort noise injection
- Enhanced noise reduction/Dynamic noise reduction (DNR)
- Automatic gain control
- Digital mixing
- Volume control: 10 levels
Phone Features
- Supports up to 3 SIP account registrations
- 10 ring tones/melodies; 10 ring levels
- 10 speed dial entries
- Pre-dialing with editing
- Local phonebook up to 200 entries
- Phonebook import/export
- LDAP/Broadsoft® remote phonebook
- Call history up to 200 entries
- Alpha phone book search
- Number saving from CID log to phonebook or blacklist
- Do Not Disturb (DND)
- 3-way local conference
- N-way network conference
- Call barring/blocking (block anonymous/ blacklist)
- Dial plan/digit map
- Caller ID
- Call transfer
- Call hold
- Call forwarding: per-line basis (busy/always/no answer)
- Call timer (call duration)
- Phonebook matching (incoming and outgoing calls)
Customization
- Soft key configuration
- Custom startup and idle logo
- Web interface configuration (admin & user)
- Custom default file Battery/Charging
- Up to 24 hours of wireless talk time for conference phone (12 hours for wideband)
- Up to 20 days of standby time for conference phone
- Up to 70 hours of standby time per wireless microphone
- Up to 12 hours of talk time per wireless microphone
Security
- 802.1x
- 802.1pq
- Transport Layer Security (TLS)
- AES encryption of config file for provisioning (128/64/32/16 bits)
- LLDP-MED
Network
- STUN
- NAT
- RTP, SRTP
- SNTP
- VLAN
- Layer 3 QoS (ToS, Diffserv)
Provisioning
- HTTP, HTTPS, FTP, TFTP
- DHCP Options: 66, 159,160
- Web interface configuration (admin & user)
- PnP
Maintenance
- Diagnostic: pcap trace
- Schedule Resync – time and day setting
- Syslog
Compatibility
- Broadsoft Broadworks®
- Asterisk-based platforms
Other
- Eco mode (talk mode)
- 3-year standard warranty
