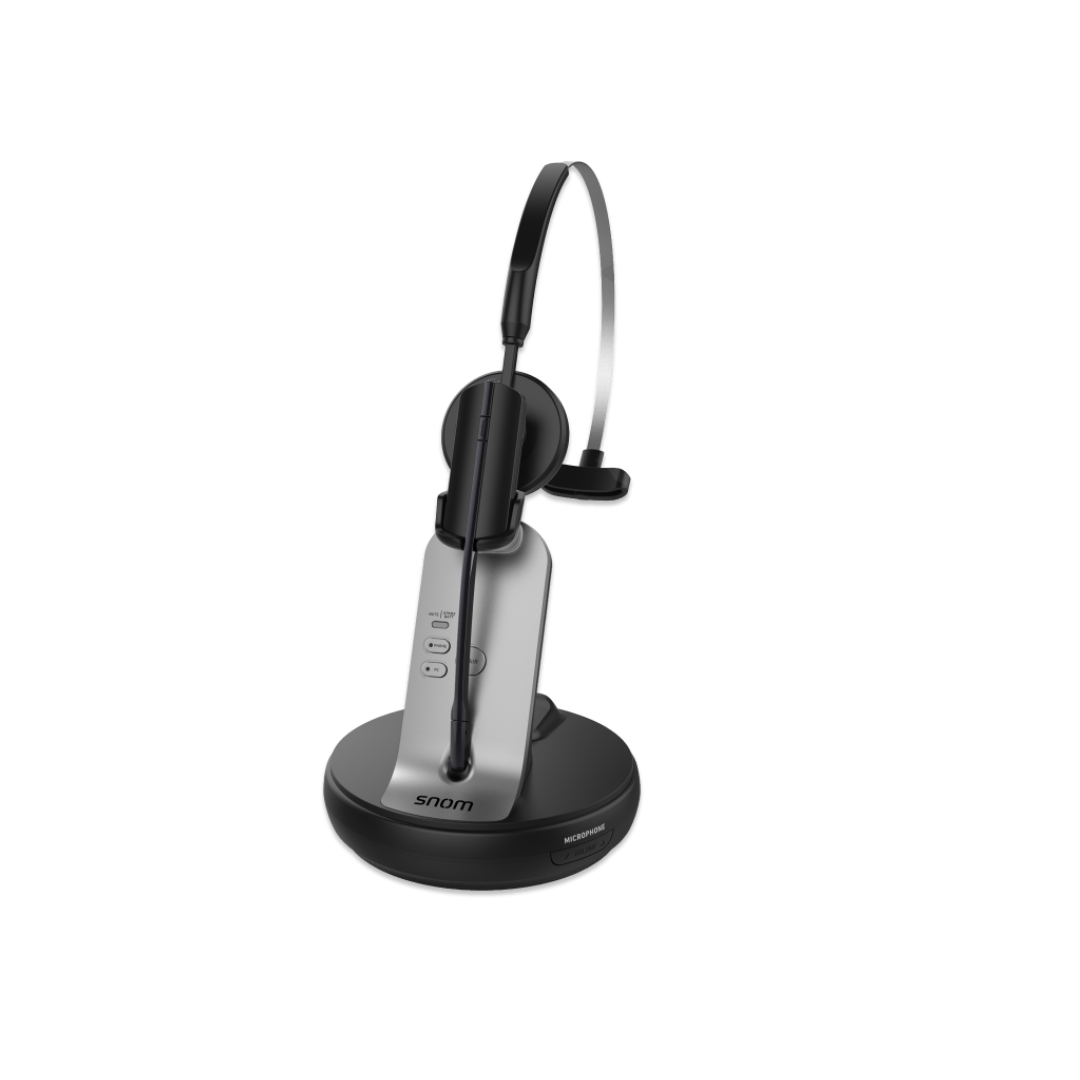

Snom A170

The wireless Snom A170 is a headset for Snom phones that offers the highest quality and a special mobility, because thanks to the DECT radio technology a movement radius of up to 25m is possible.The lightweight and handy headset has a wideband speaker and a microphone with passive noise cancelling which filters out disturbing ambient noise.

The headset offers three wearing options: Either by headband or neckband or directly on the ear.

It has an integrated EHS functionality. At the touch of a button, the most important functions such as call acceptance, microphone muting or volume can be controlled directly on the headset. And if the day is full of phone calls, the battery can be changed at any time, even during ongoing calls, which has been charged in the meantime in the base station of the Snom A170. In principle, this makes it possible to make unlimited hands-free calls.

The Snom A170 is compatible with the Snom desk phones of the D7xx and D3xx series and can also be connected to a PC via the integrated USB port of the base station. With a simple push of a button on the base station, you can easily switch between the phone and the PC.

Key features

  • Wireless DECT headset
  • Connection to Snom phone or PC possible (USB)
  • Passive noise cancelling microphone
  • Battery replaceable during a call



Category:

Description

Basics

Product information

  • DECT headset|black|PN 00004387

Placement: indoor, desktop

Equipment

  • Ear cushions: leatherette
  • Three wearing styles: over-the-head, neckband, over-the-ear

Dimensions and weight

Dimensions (L × W × H, approx.)

  • Packaging: 200 mm × 160 mm × 150 mm

Weight (approx.)

  • 44 g (over-the-head), 36 g (neckband), 22 g (over-the-ear)

Display and indicators

Headset

  • Multi-purpose status indication: 1 dual-colour LED

Base station|charging cradle

  • Mute status indication: 1 dual-colour LED
  • Mode indication (PC / Phone): 2 green LEDs

Keypad and function keys

7 hard keys in total

  • 5 dedicated audio keys
    • Headset
      • Mute
      • Volume + / – (miniature control stick)
    • Base station|charging cradle
      • Microphone volume + / –
  • 4 dedicated function keys
    • Headset: Call control (with dual-colour LED)
    • Base station|charging cradle: Phone (with green LED), PC (with green LED)

3 switches

  • auto-answer switch, bandwidth switch, sound quality switch

Audio devices, codecs and features

Headset speaker

  • Frequency range: 300 Hz – 7.0 kHz

Microphone

  • Frequency range: 300 Hz – 7.0 kHz
  • Passive noise cancelling

HD audio

Interfaces and connections

Power options

  • Headset: Battery 2 × 3.7 V, 140 mAh, lithium-ion, removable, rechargeable, up to 2 h charging time
  • Base station|charging cradle: Power adapter 100 – 240 V AC / 50 – 60 Hz | 6 V DC / Output 1: 300 mA / Output 2: 450 mA

Wired interfaces

  • Power adapter: RJ11-6P6C socket
  • Audio source: USB 2.0 type Mini-B port
  • Phone headset adapter: RJ45-8P4C socket
  • EHS adapter: RJ12-4P4C socket

Wireless interfaces

  • DECT

DECT technology and features

Standard: DECT (DSAA 64 bit)

Frequency band:

  • Europe: 1,880 – 1,900 MHz

Coverage

  • Up to 25 m indoor range

Environmental conditions

Operating ambient temperature:

Humidity (non-condensing): < 95 %

Package contents

Hardware

  • Headset A170
  • Base station|charging cradle
  • Power adapter
  • Battery: 2 × 3.7 V, 140 mAh, lithium-ion
  • 3 accessory sets for distinct wearing options
  • Wire set
    • Audio source: USB-A to USB Mini-B cable
    • EHS adapter: RJ12-4P4C to RJ45-6P6C cable, RJ12-4P4C to 4-pin cable
    • Phone headset adapter: RJ45-8P4C to RJ9-4P4C cable

Documentation

  • Quick Installation Guide

Snom accessories and compatible devices

IP desk phone (RJ9-4P4C)

  • D3xx, D7xx, D8xx

Additional information

Color

Black
Brand

Snom
Connection type

Wireless
