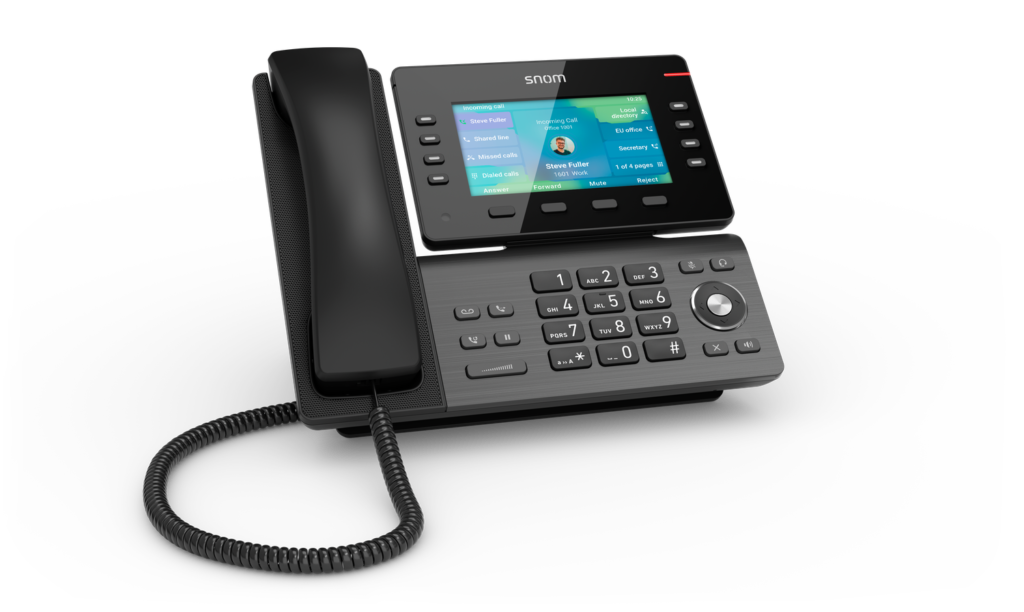

Snom D862
Description
The Snom D862 is a stylish entry-level device of the Snom D8xx series which is ideally suited for any desk with its elegant design. The Snom D862 combines advanced technology, excellent voice quality and an attractive design in one device.
Quick Summary
- Large tilting 5 inch IPS colour display
- High speed USB 2.0 connection
- 8 programmable function keys
- Optimised noise reduction
Overview and Specifications
Product information
– IP desk phone D862|gunmetal black|PN 00004535
– Operating system: Linux
Placement
– Indoor, desktop, wall mounting1
Dimensions (L × W × H, approx.)
210 mm × 243 mm × 45 mm without footstand
193 mm × 243 mm × 165 mm with footstand
Weight (approx.)
1.12 kg with foot stand
TFT liquid crystal display (LCD): tiltable, IPS panel, backlit
Size (diagonal): 5.0″ (127 mm)
Size (W × H): 110 mm × 62 mm
Resolution: 1,280 × 720 pixels13 LED indicators
Call status indication: 1 red LED
Message waiting indication (MWI): 1 red LED
Function key status indication: 8 multicolour LEDs
Audio key status indication: 3 LEDs (1 red / 2 green)
Power options
Power over Ethernet (PoE)
IEEE 802.3af, class 3|IEEE 802.3az3
Power adapter1
100 – 240 V AC, 50 – 60 Hz | 5 V DC (SELV), 2 A, 10 W
Wired interfaces
Power adapter: coaxial power connector (socket)
Network connectivity: 2 × RJ45-8P8C sockets (PC/NET) → Gigabit Ethernet (GbE)
USB connectivity: USB 2.0 type A port
Corded handset: RJ9-4P4C socket
Headset: RJ9-4P4C socket
EHS adapter:1 RJ12-6P6C socket
Sensors
Hook switch sensor
Ambient light sensor
