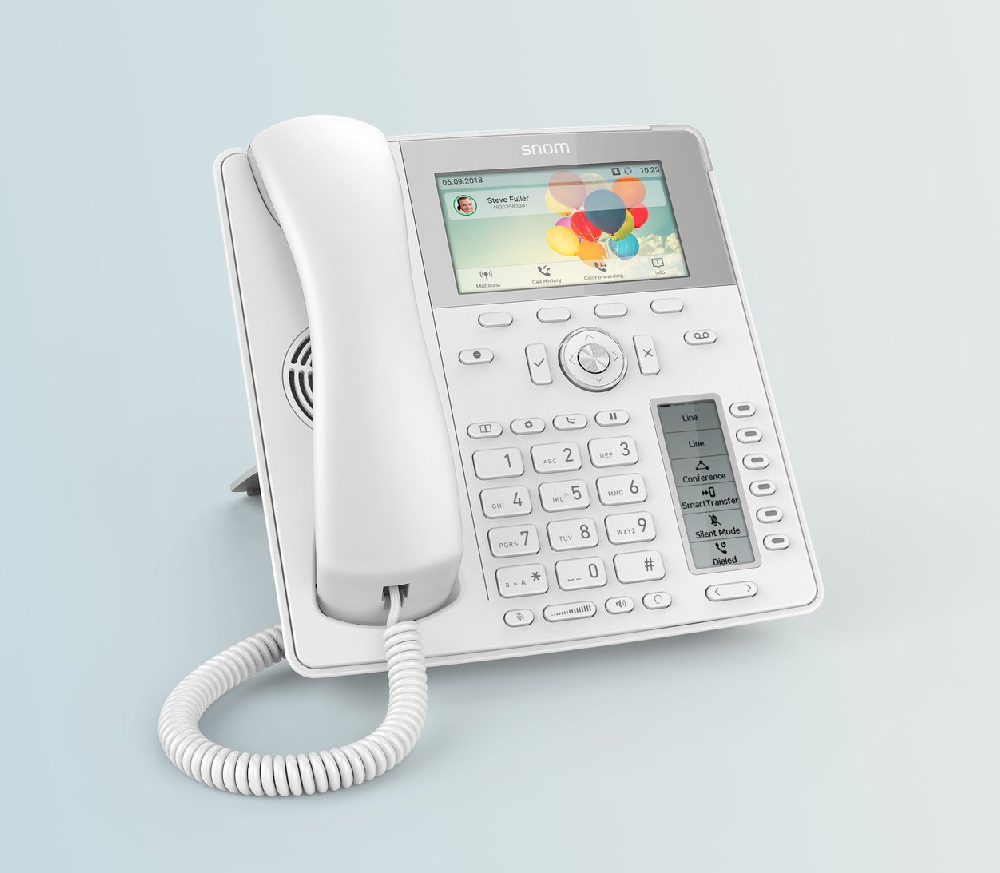

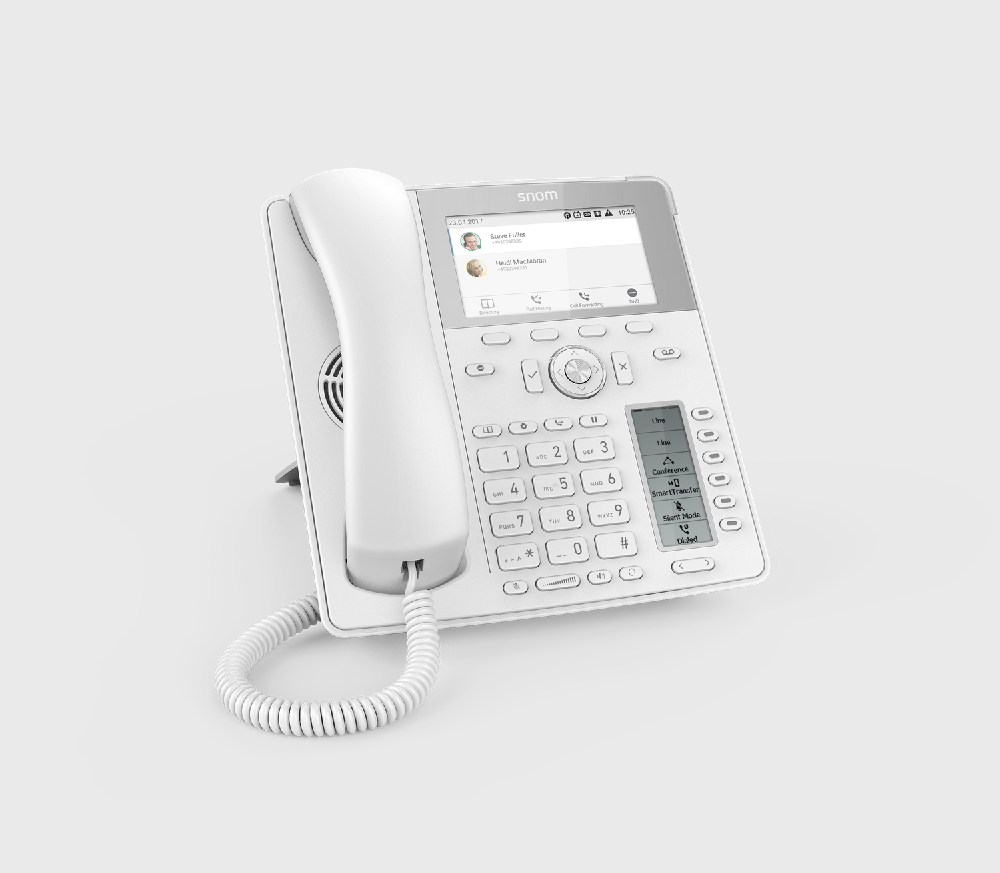

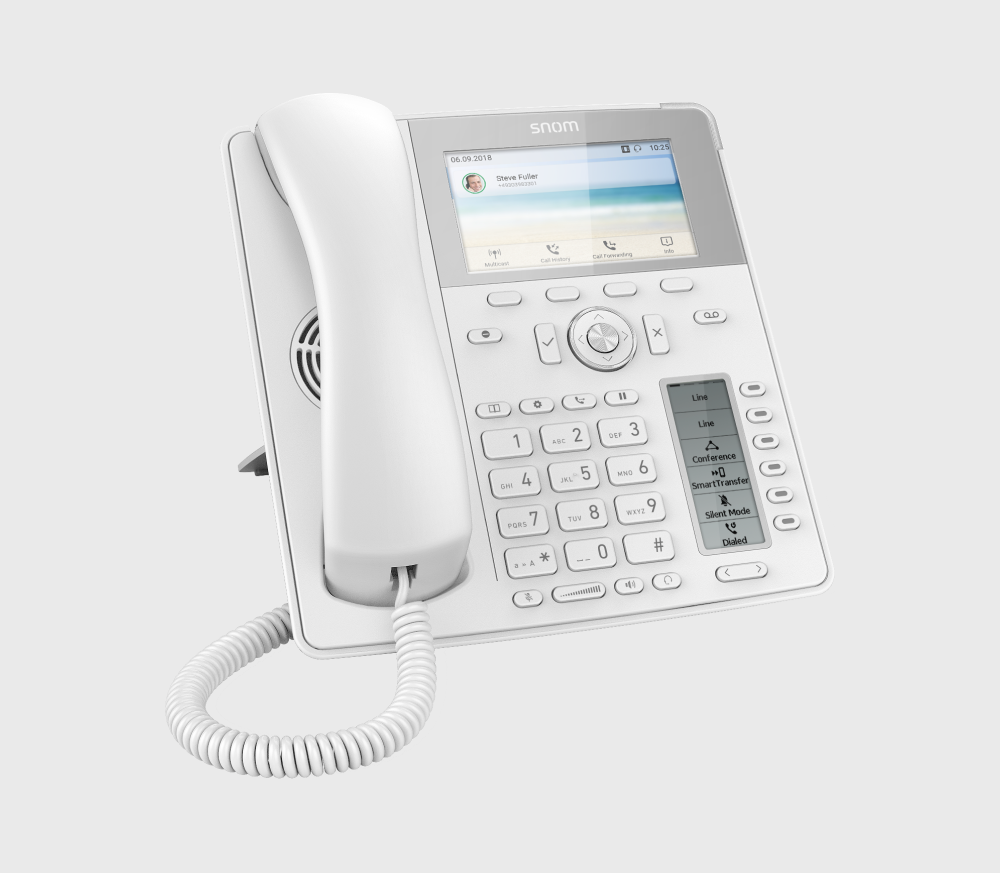

Snom D785 (W)
The Snom D785 is part of Snom’s latest and most technically advanced phone series. With the elegant design available in black and white, the large high-resolution colour display, as well as the practical second display for a dynamic configuration of the 24 function keys (6 physical), this telephone offers all the functions for every working day.
Quick Summary

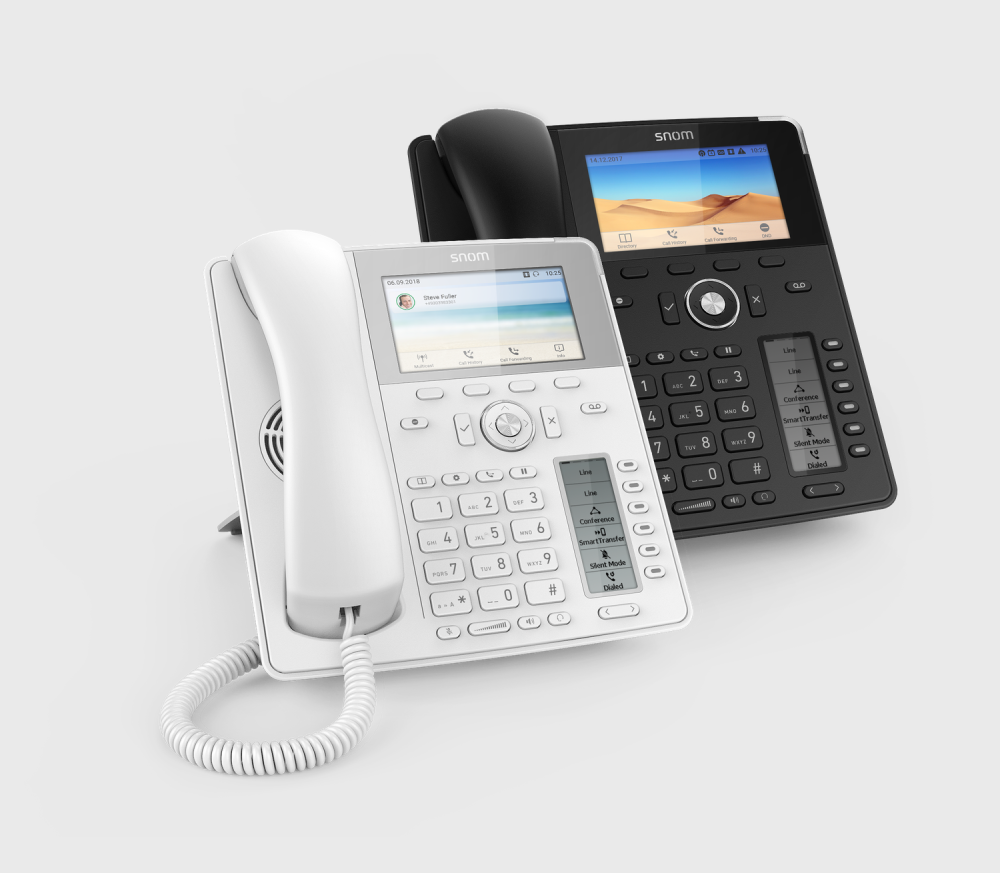

- Colour: White (also available in black)
- High-resolution 4.3 Zoll TFT colour display
- 24 freely programmable function keys / BLF keys (6 physical) in the second display
- Integrated Bluetooth (except D785N)
- USB headset compatible
- USB headset compatible
Overview and Specifications
IP desk phone D785/D785N
Operating system: Linux
Placement: indoor, desktop, wall mounting
Dimensions (L × W × H, approx.) without footstand
220 mm × 205 mm × 35 mm
Dimensions (H x W x D, approx.) with footstand
220 mm × 205 mm × 190 mm (high angle 46°)
210 mm × 205 mm × 150 mm (low angle 28°)
Weight (approx.):
990 g with footstand
750 g without footstand
Display
TFT liquid crystal display (LCD): true colour, backlit
Size (diagonal): 4.3″ (109 mm)
Size (W × H): 95 mm × 54 mm
Resolution: 480 × 272 pixel
SmartDisplay
TFT liquid crystal display (LCD): monochrome, graphical
Size (diagonal): 2.8″ (70 mm)
Size (W × H): 66 mm × 23 mm
Resolution: 254 × 100 pixel
11 LED indicators
Call status indication: 1 red LED
Message waiting indication (MWI): 1 red LED
Function key status indication: 6 multicolour LEDs
Audio key status indication: 3 LEDs (1 red / 2 green)
Power options
Power over Ethernet (PoE)
IEEE 802.3af, class 2/34
Power adapter2
100 – 240 V AC, 50 – 60 Hz | 5 V DC (SELV), 2 A, 10 W
Wired interfaces
Power adapter: coaxial power connector (socket)
Network connectivity: 2 × RJ45-8P8C sockets (PC/NET) → Gigabit Ethernet (GbE)
USB headsets and other accessories: USB 2.0 type A port
Corded handset: RJ9-4P4C socket
Headset: RJ9-4P4C socket
EHS adapter:2 RJ12-6P6C socket
Wireless interfaces
Third party headset support: Bluetooth 4.0, class 21
Network connectivity: WLAN optional via A2102
Sensors
Hook switch sensor
